- ISO Code: VBGW110304-2S (ANSI: VBGW2.51-2S)
- Machining Type: Continuous to light interrupted hard turning, internal boring, profile turning, and facing
- Machining Type: Continuous to light interrupted hard turning, internal boring, profile turning, and facing
- Service: OEM & ODM
Beýany
Product Overview

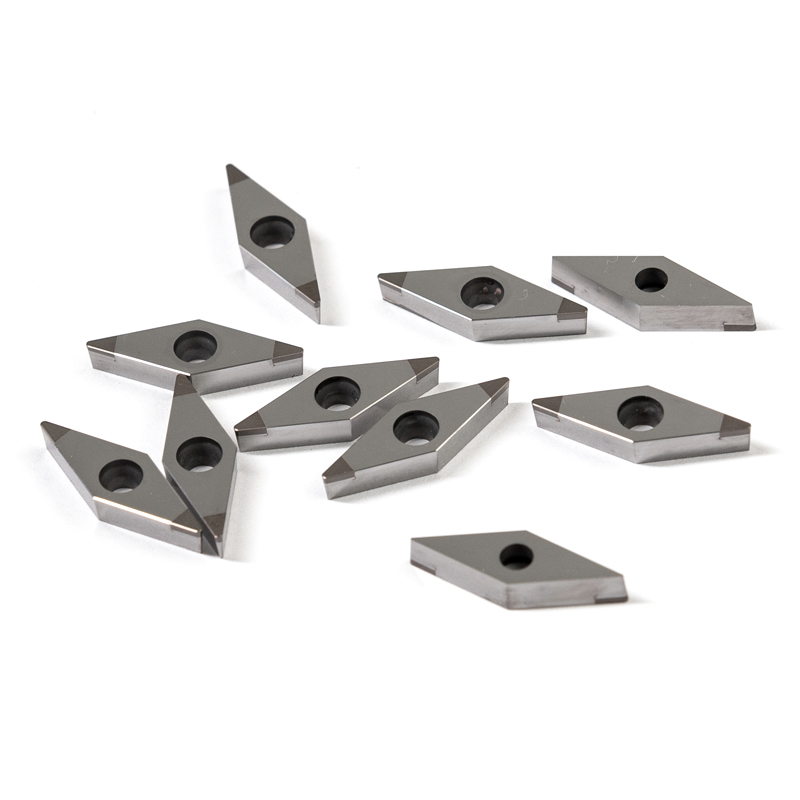

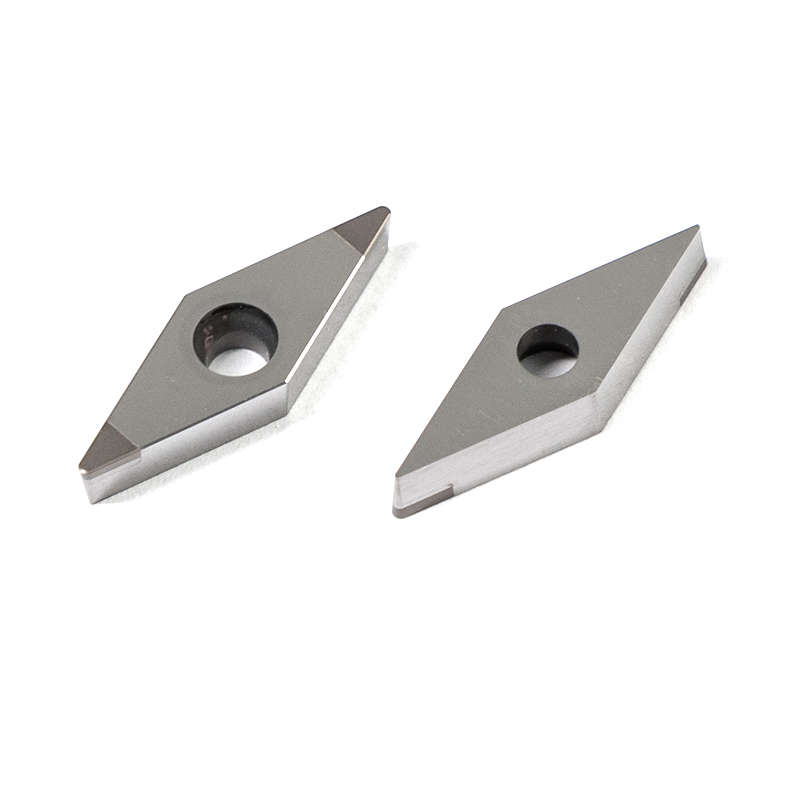

The VBGW110304-2S CD6100 is a high-precision, 35-degree rhombic PCBN (Polycrystalline Cubic Boron Nitride) turning insert engineered for high-speed fine finishing and hard turning of Hardened Steel (HRC 45–65), High-Chromium Cast Iron, and Powder Metallurgy Metals. Featuring a 0.4mm nose radius and 2 fully indexable solid CBN cutting tips (-2S), this G-class ground insert delivers incredible hot hardness, superior thermal shock resistance, and extreme wear resistance. It allows CNC operators to replace costly, time-consuming cylindrical grinding operations with high-efficiency direct hard turning.
2. Technical Specifications
ISO Code: VBGW110304-2S (ANSI: VBGW2.51-2S)
Grade: CD6100 (High-content PCBN composite substrate engineered for extreme thermal oxidation resistance and flank wear resistance in ISO H and K materials)
Shape: V-Shape (35 Degree Diamond / Rhombic)
Relief Angle: B-Type (5 Degree Positive clearance – lowers radial cutting forces during copy profiling)
Cutting Corner Configuration: 2-Corner Solid PCBN Tips (-2S)
Inscribed Circle: 6.35 mm (1/4 inch)
Thickness: 3.18 mm
Nose Radius: 0.4 mm (R0.4 / 1/64 inch) – Micro-sharp precision radius for mirror-like surface roughness and light depths of cut
Machining Type: Continuous to light interrupted hard turning, internal boring, profile turning, and facing
Applications
Workpiece Materials: Hardened Steel (HRC 45–65), Case Hardened Steel, Bearing Steel, Tool Steel, and High-Strength Cast Iron.
Industries: Automotive (gears, shafts, bearings), Aerospace, and Mold & Die manufacturing.
Cutting Conditions: Primarily used for Hard Part Turning (HPT) in continuous or slightly interrupted cutting applications.
