Product Overview

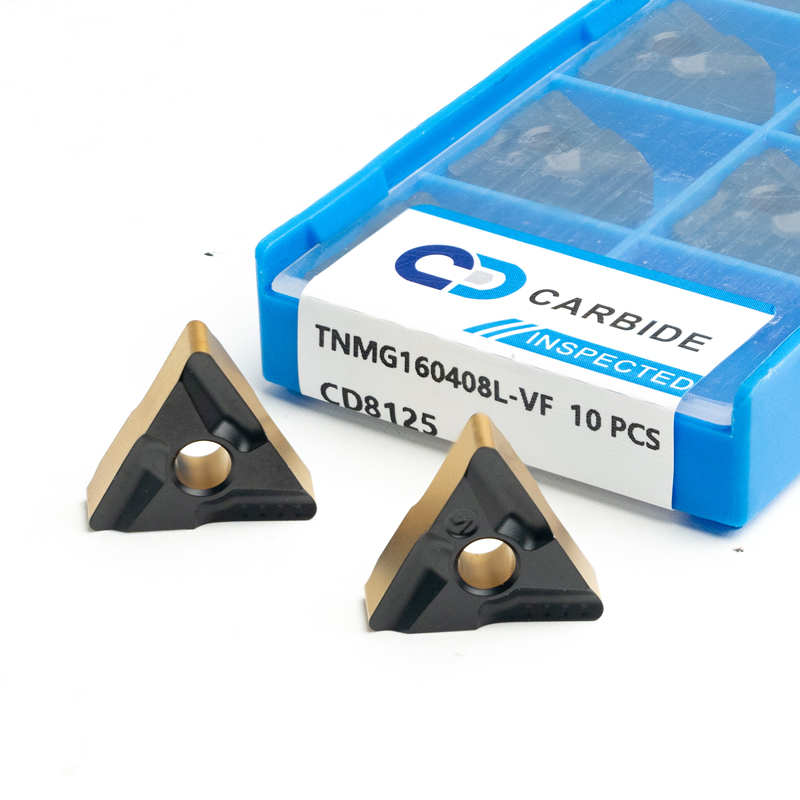

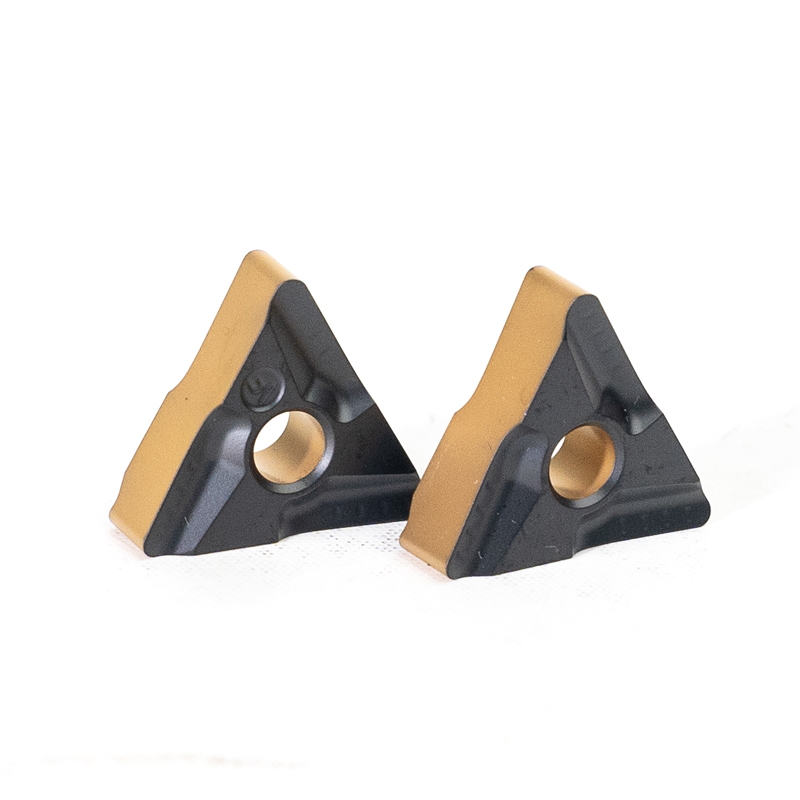

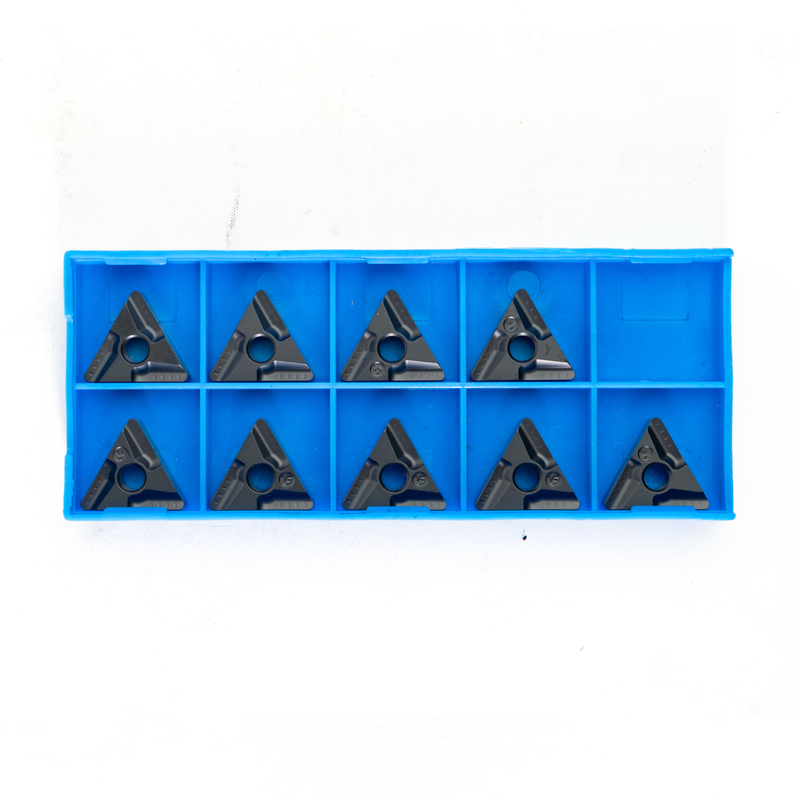

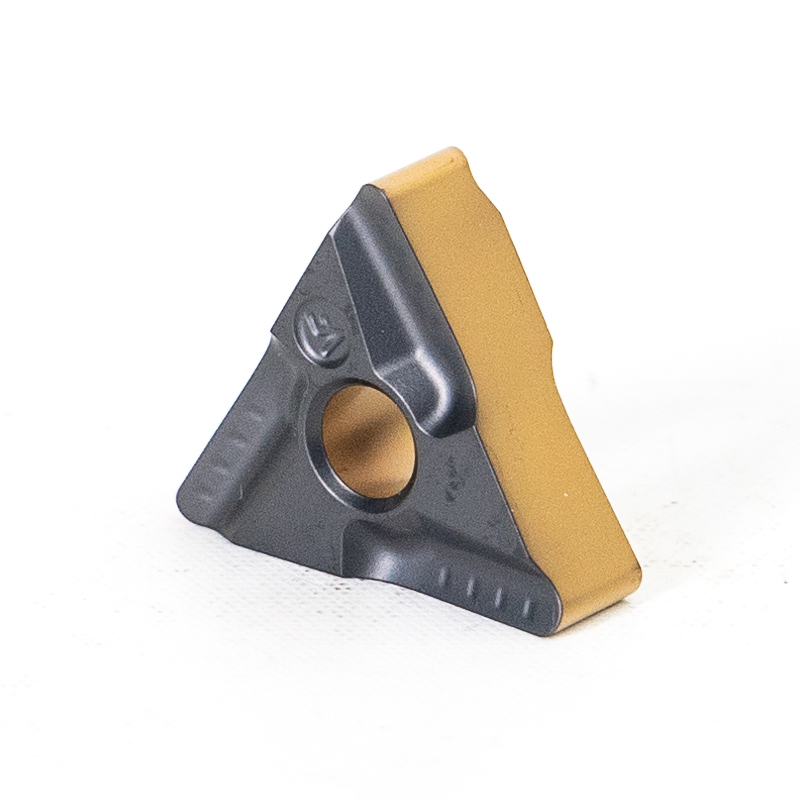

The TNMG160408L-VF CD8125 is a high-precision, double-sided 60° triangular negative turning insert tailored for high-efficiency finishing of ISO P-Class materials (Carbon Steels, Alloy Steels, Tool Steels, and Structural Steels). This left-hand insert integrates the ultra-sharp -VF finishing chipbreaker with the highly versatile CD8125 (P25) grade matrix. It is engineered to solve the most frustrating challenges in steel finishing: chip bird-nesting, dimensional variations due to high cutting heat, and poor surface roughness. It is an exceptional choice for automotive components, precision shafts, and mass-production CNC turning lines.

2. Technical Specifications

• ISO Code: TNMG160408L-VF (ANSI: TNMG332L-VF)

• Grade: CD8125 (Premium CVD multi-layer coating, optimized for ISO P20–P30 steel finishing and medium turning)

• Shape: T-Shape (60° Triangle)

• Cutting Direction: Left-Hand (L)

• Relief Angle: N-Type (0° Negative rake, double-sided with 6 usable cutting edges for outstanding economy)

• Nose Radius: 0.8 mm (R0.8 / 1/32") – Provides a robust cutting edge that balances high surface finish quality with great wear resistance.

• Chipbreaker: -VF (Finishing Geometry with a positive rake angle and tight chip groove for excellent chip breaking at low depths of cut)

• Application Range: Low carbon steel, medium/high carbon steel, alloy steel (e.g., 4140, 4340), die/mold steel, and forged steels.

Typical Applications

• Shaft & Axle Manufacturing: Precision continuous finish turning of automotive drive shafts, electric motor rotors, and long stepped axles.

• Fastener & Component Production: High-volume CNC machining of high-tensile steel bolts, hydraulic fittings, and steel flanges.

• General Engineering: Finish-turning profiles, shoulders, and external faces on pre-heat-treated structural and alloy steel parts.

FAQ

1) Ndingawana riini mutengo?

Isu tinowanzo tora mukati meawa makumi maviri nemana mushure mekunge tawana kubvunza kwako.Kana iwe uchikurumidza kwazvo kuwana mutengo, ndapota tifonere kana kutiudza mune yako email kuitira kuti isu titarise kubvunza kwako kwekutanga.

2) Ndingawana sei muenzaniso kuti nditarise kunaka kwako?

Mushure mekusimbiswa kwemutengo, unogona kuda kuti sampuli dzitarise kunaka kwedu. Kana iwe uchingoda sampuli isina chinhu kuti utarise dhizaini uye mhando yepepa, isu tinokupa iwe sampuli yemahara, chero iwe uchikwanisa kuburitsa zvinhu.

3) Inguva yakareba sei yandingatarisira kuwana sampuli?

Mushure mekunge mabhadhara sampuli yekubhadhara uye kutitumira mafaira akasimbiswa, masampuli achave akagadzirira kuendeswa mumazuva 3-7. Iwo masampula anozotumirwa kwauri kuburikidza neexpress uye anosvika mumazuva e3-7 ekushanda. Unogona kushandisa yako Express account kana kutibhadhara kare kana iwe usina account.

4)Maitirwo ese ari kuitwa kwenguva yakareba sei?

Mushure mekunge maisa odha, iyo yekugadzira yekubata nguva ndeye 20-25 mazuva. Tinoda mazuva manomwe ekugadzira zvinhu zvese ipapo mazuva gumi nemashanu ekugadzira.

5) Zvakadini nezuva rekufambisa uye rekutumira?

Kazhinji isu tinoshandisa kutumira kune transprot zvinhu.Ingangoita 7-25 mazuva.Zvinoenderanawo nekuti ndeipi coutry uye port iwe uri.Inogona kunge ipfupi kana iwe uchida kutumira zvinhu zvakaita seAsia. Kana paine zvimwe zvekukurumidzira tinogona kutumira zvinhu kuburikidza neair Express, chero uchibhadhara mari yetraffic.

6) Iwe uri kutengesa kambani kana mugadziri?

Isu tiri nyanzvi mugadziri. Isu hatisi chete varidzi vedu fekitori yematurusi, asiwo tine simende fekitori yecarbide.

7) Fekitari yako iri kupi?

Isu tiri muZhuzhou guta, Hunan Province., Tungsten carbide base dhorobha reChina.

8) Inguva yakareba sei yandingatarisira kuwana sampuli?

Mushure mekunge mabhadhara sampuli yekubhadhara uye kutitumira mafaira akasimbiswa, masampuli achave akagadzirira kuendeswa mumazuva 3-7. Iwo masampula anozotumirwa kwauri kuburikidza neexpress uye anosvika mu3-5 mazuva ekushanda. Unogona kushandisa yako Express account kana kutibhadhara kare kana iwe usina account.

9) Zvakadini nezve stock yako?

Tine zvigadzirwa zvakakura mustock, mhando dzenguva dzose uye saizi zvese zviri mustock.

10) Kutumira pachena kunogoneka here?

Isu hatipe sevhisi yemahara yekutumira. Tinogona kuva nedhipatimendi kana iwe ukatenga yakakura yakawanda zvigadzirwa

Sunungukai kundibata:

Aimee

Sales manager

Zhuzhou Chuangde Cemented Carbide Co., Ltd

215, building 1, International Students Pioneer Park,

TaishanRoad, Tianyuan District, Zhuzhou City.

Email: cd@cdcarbide.com

Tel:+86-731-22506139
Mobile:+8613786352688

Whatspp/wechat/Skype :  0086 13786352688
