Carbide turning tools SNMG250724 Carbide Inserts CNC Cutter for processing steel
  • Material: Tungsten carbide
  • Processing: Semi finishing
  • Appllication: Steel Processing

DESCRIPTION

Product Description:

Carbide turning tools SNMG250724 Carbide Inserts CNC turning inserts

1. Basic Information:

Model

SNMG120404/08/12

SNMG150608/12/16

SNMG190612/16

Grade

CD8025/CD8125/CD8020/CD8010

Workpiece

steel/hardened steel/ stainless steel/cast iron

Coating

CVD/PVD coating



Advantages:

1:imported raw powder materials,

2:, have a peculiar gradient cobalt-rich on surface of the substrates which can ensure the inserts’ high performance when finishing the CVD coating.

3:The coating materials are MT-TiCN0-Al2O3 with thickness of 14μm, which have high abrasion resistance. After special management on the surface of the coating inserts, the internal stress and surface of coating were reduced while cutting resistance was also cut down.

4:Our series grade can cutting steel and alloy steel from finish machining, to semi-finish and rough machining.

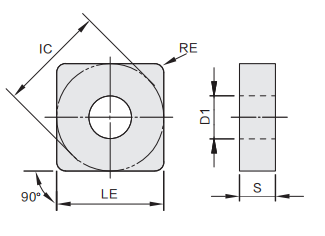

2.Design drawing:







Insert Shape






Type

  Dimension





LE





IC





S





D1





RE












 Semi Finishing

SNMG090304

9.525

9.525

3.18

3.81

0.4

SNMG090308

9.525

9.525

3.18

3.81

0.8

SNMG120404

12.7

12.7

4.76

5.16

0.4

SNMG120408

12.7

12.7

4.76

5.16

0.8

SNMG120412

12.7

12.7

4.76

5.16

1.2

SNMG120416

12.7

12.7

4.76

5.16

1.6

SNMG150608

15.875

15.875

6.35

6.35

0.8

SNMG150612

15.875

15.875

6.35

6.35

1.2

SNMG190612

19.05

19.05

6.35

7.94

1.2

SNMG190616

19.05

19.05

6.35

7.94

1.6

SNMG250724

25.4

25.4

7.94

9.12

2.4

SNMG250924

25.4

25.4

9.525

9.12

2.4






Roughing

SNMA120408

12.7

12.7

4.76

5.16

0.8

SNMA120412

12.7

12.7

4.76

5.16

1.2

SNMA120416

12.7

12.7

4.76

5.16

1.6

SNMA150608

15.875

15.875

6.35

6.35

0.8

SNMA150612

15.875

15.875

6.35

6.35

1.2

SNMA190612

19.05

19.05

6.35

7.94

1.2

SNMA190616

19.05

19.05

6.35

7.94

1.6

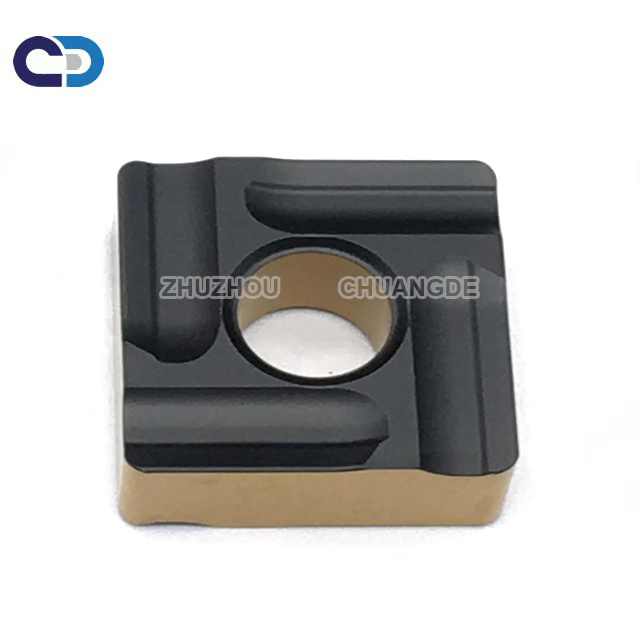

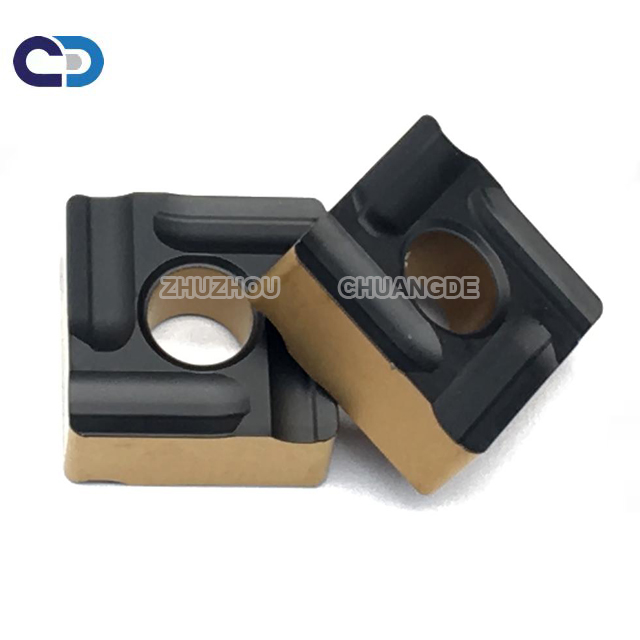

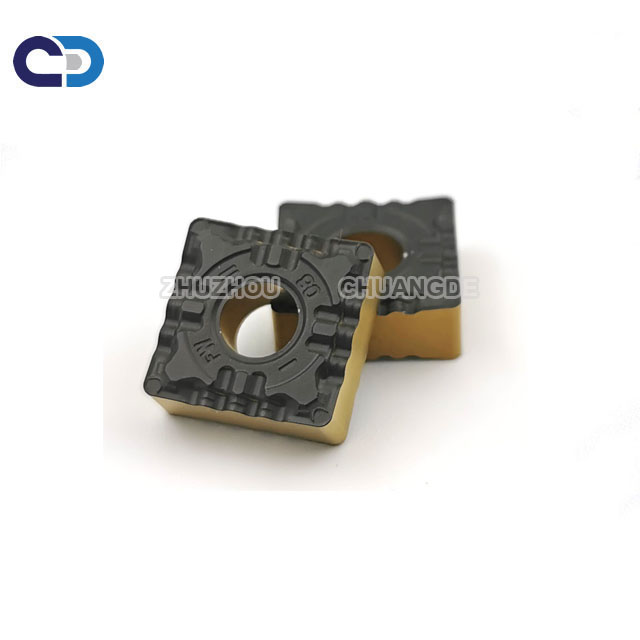

3.Product show:

Carbide turning tools SNMG250724 Carbide Inserts CNC Cutter for processing steel




4. Grade for Cemented Carbide inserts SNMG type

Grade for Turning Inserts
 GRADECOATINGCOLORWORKING MATERIALAPPLICATION
CD8025CVDgolden yellowP10-P30The carbide substrate have good anti-deformation resistance and toughness. MT-TiCN+Al2O3+TiN coating has very good surface quality and help to recognize wear easily. It is suitable for semi-finishing and finishing steel machining.
(MT-TiCN+Al2O3+TiN)
CD8125CVDblackP10-P40The carbide substrate have mild cobalt content and high cubic content, combining with thick TiCN and Al2O3, treated by sepcial technology after coating treatment, which gives inserts strong wearing resistance. It is prority for semi-finishing to finishing steel machining.
(Multi-TiCN+Al2O3)
CD8020PVD (Silicon+TiAlN)purpleM10-M30Micro WC grain substrate with high Co maintain cutting edge strength and it has smallest coefficient of friction and good nano hardness with good thermal stability silicon coating. The grade is very good for interrupt turning and milling for stainless steel.
CD8010CVDblackK10-K30The medium-coarse substrate combine with thick TiCN and textured Al2O3, after special coating treatment, it has strong
(thick TiCN+ textured Al2O3)wear-resistance. The grade is suitable for high-speed semi-finishing cast iron turning under stable working condition.



undefinedundefined
