- ISO Code: TPGN160408
- Machining Type: External turning, facing, chamfering, and internal boring
- Precision External Turning & Facing: General finish to semi-rough turning of shafts, flanges, bushings, and cylindrical steel parts.
- Cutting Range:finishing, Semi-finishing and rough
DESCRIPTION
Product Overview

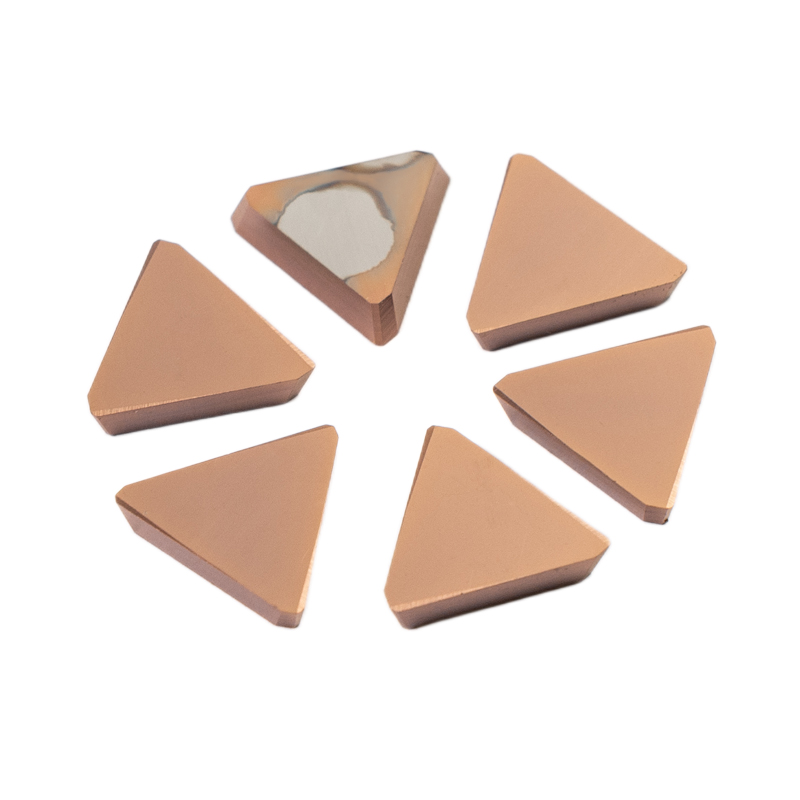

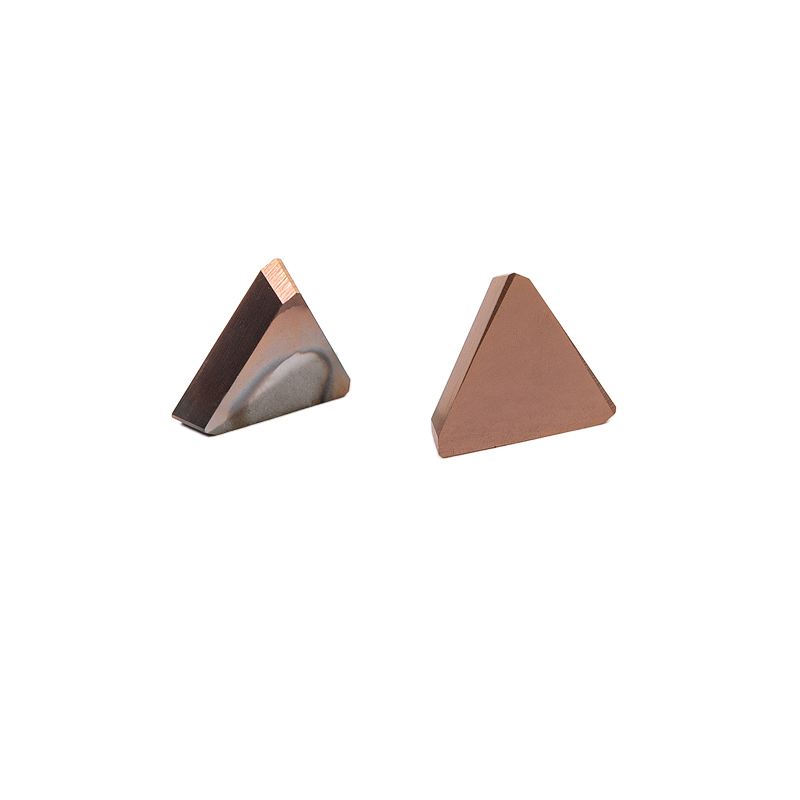

The TPGN160408 is a 60° equilateral triangular indexable carbide insert for CNC turning. Its 11° positive clearance angle lowers radial cutting pressure, so it machines thin-walled parts and long shafts with less thrust load and better surface quality. The flat top with no chipbreaker groove gives a strong, rigid clamping surface and three sharp edges per insert — index the insert three times before changing it.
Manufactured on a tough carbide substrate with a CVD coating (CD7225) developed for steel and stainless steel turning. The R0.8 corner radius balances edge toughness and surface finish, working from finishing through semi-finishing and light roughing on shafts, flanges, bushings and small bores.
| Model | IC (mm) | L (mm) | S (mm) | rε (mm) |
|---|---|---|---|---|
| TPGN160300 | 9.525 | 16.5 | 3.18 | 0 (sharp) |
| TPGN160302 | 9.525 | 16.5 | 3.18 | 0.2 |
| TPGN160304 | 9.525 | 16.5 | 3.18 | 0.4 |
| TPGN160308 | 9.525 | 16.5 | 3.18 | 0.8 |
| TPGN160408 | 9.525 | 16.5 | 4.76 | 0.8 |
| TPGN160412 | 9.525 | 16.5 | 4.76 | 1.2 |
| TPGN220408 | 12.7 | 22.0 | 4.76 | 0.8 |
| TPGN270408 | 15.875 | 27.5 | 4.76 | 0.8 |
Product Features
11° positive clearance — reduces radial force, ideal for thin-walled parts and long shafts where deflection is the problem.
Three ground cutting edges — index three times per insert, the lowest cost per cut in this insert class.
CVD coating (CD7225) — high wear resistance and low friction on steel and stainless steel at high cutting speeds.
Flat top, no chipbreaker groove — strong rigid clamping surface for reliable indexing accuracy and repeatability.
R0.8 corner radius — a balanced geometry for finishing to light roughing, good surface finish on cylindrical parts.
Micro-ground periphery (G class) — tight tolerance and consistent indexing accuracy batch to batch.
One insert, four operations — external turning, facing, chamfering and internal boring with the same insert.
Recommended Tool Holders推荐刀杆
Not sure which holder fits? Send us your machine model, shank size and part drawing — we will recommend the exact holder and confirm stock.
Recommended Cutting Parameters (starting values)
| Workpiece material | ISO group | Cutting speed Vc (m/min) | Feed fn (mm/rev) | Depth of cut ap (mm) |
|---|---|---|---|---|
| Steel (mild / alloy, < HRC 40) | P | 100 – 180 | 0.05 – 0.20 | 0.3 – 2.0 |
| Stainless steel (HRC 30 – 45) | S | 80 – 150 | 0.05 – 0.15 | 0.3 – 1.5 |
| Cast iron / ductile iron | K | 100 – 200 | 0.08 – 0.25 | 0.5 – 2.5 |
| Aluminium / non-ferrous | N | 300 – 800 | 0.05 – 0.20 | 0.3 – 2.0 |
