DESCRIPTION

1. Product Overview

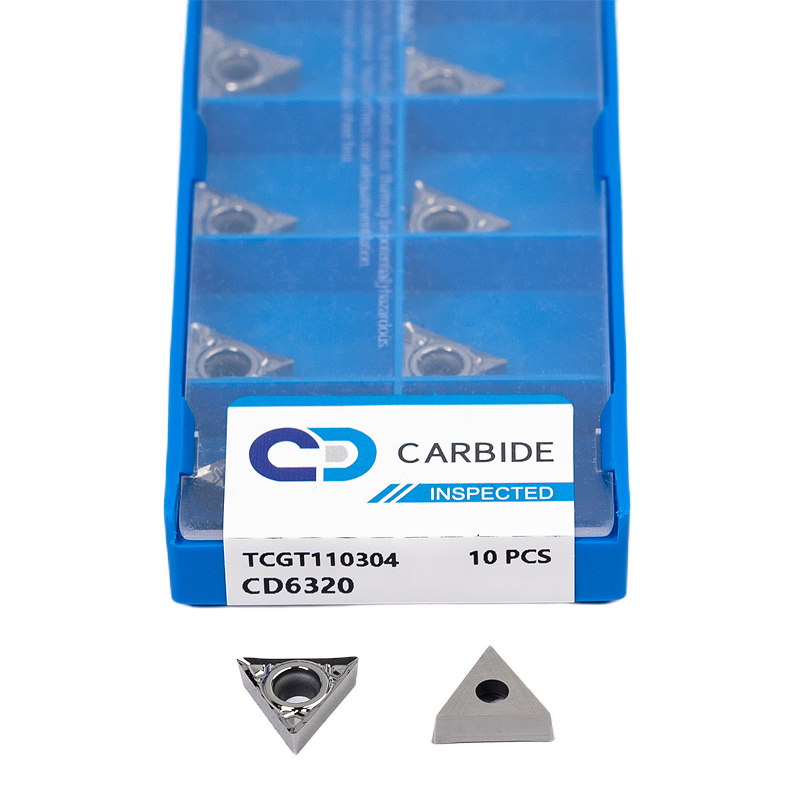

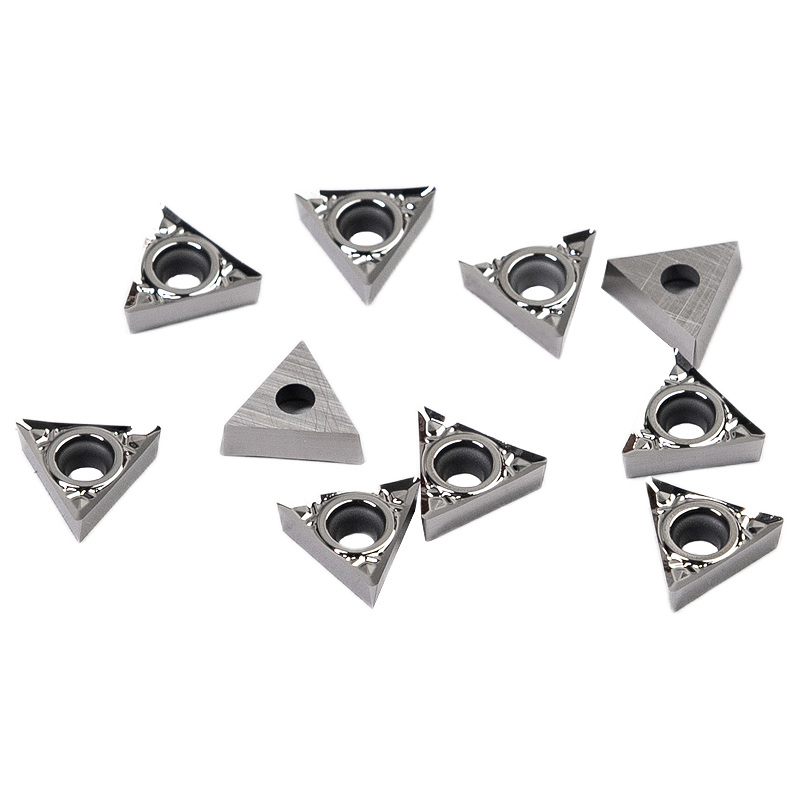

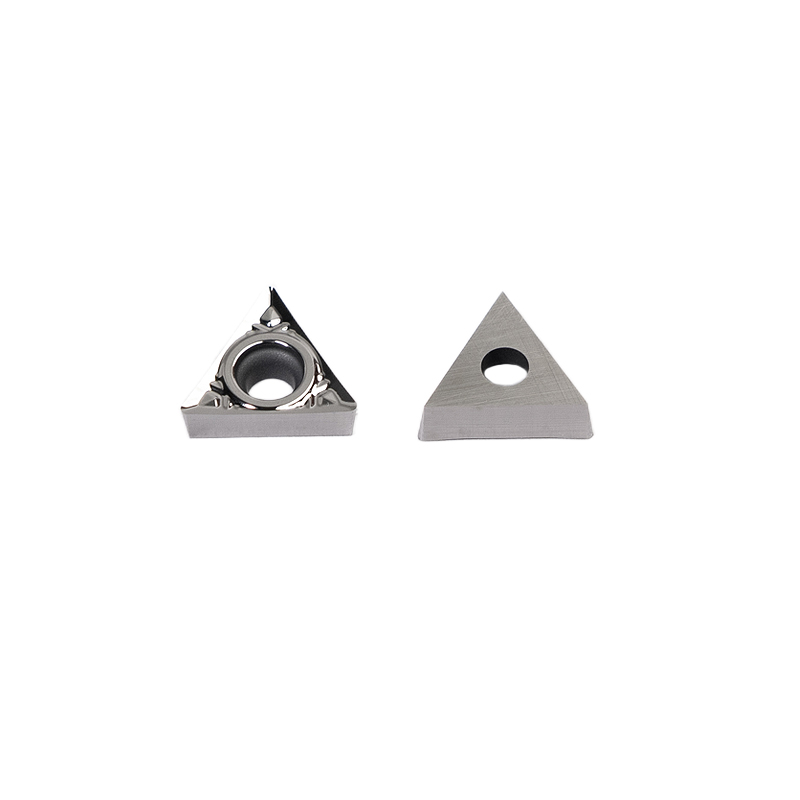

The TCGT110304 is a G-class precision-ground, single-sided triangular indexable turning insert with a cylindrical fixing hole, engineered for high-surface-finish precision turning of soft, non-ferrous and non-metallic materials — including aluminum and aluminum alloys, copper, brass, bronze, and plastics. Featuring a symmetric 60-degree equilateral triangular shape with 3 indexable cutting edges, a 7-degree positive relief angle, and a fine 0.4mm nose radius (R0.4), this screw-clamp insert is designed for screw-clamp tool holders (such as STGCR/L style holders). Its sharp, free-cutting positive geometry delivers very low cutting forces, reduced built-up edge, and smooth chip evacuation — producing excellent, high-gloss surface finishes in finish and super-finishing operations on soft materials.

2. Technical Specifications

• ISO Code: TCGT110304 (ANSI: TCGT 221)

• Shape: T-Shape (60 Degree Equilateral Triangle)

• Relief Angle: C-Type (7 Degree Positive clearance — free-cutting geometry that minimizes cutting force and material adhesion)

• Precision Class: G-Class (Precision ground perimeter and thickness for exact repeatability)

• Clamping / Hole Type: T-Type (Cylindrical fixing hole with 40°–60° countersink on one side, chipbreaker on one face only — screw-clamp mounting)

• Inscribed Circle (IC): 6.35 mm (1/4 inch) | Thickness: 3.18 mm (1/8 inch)

• Cutting Edge Length (L): 11 mm

• Nose Radius: 0.4 mm (R0.4 / 1/64 inch) — fine radius ideal for light finishing cuts on soft materials

• Number of Cutting Edges: 3 Indexable corners per insert (single-sided)

• Workpiece Materials: ISO N — Non-ferrous metals (aluminum, aluminum alloys, copper, brass, bronze) and non-metallic materials (plastics, composites)

• Machining Type: High-finish turning, facing, chamfering, profiling, and internal boring — finish to super-finishing on soft materials

• Compatible Tool Holder: Screw-clamp holders, STGCR/L style (e.g. STGCR/L 1212H11)
