DESCRIPTION

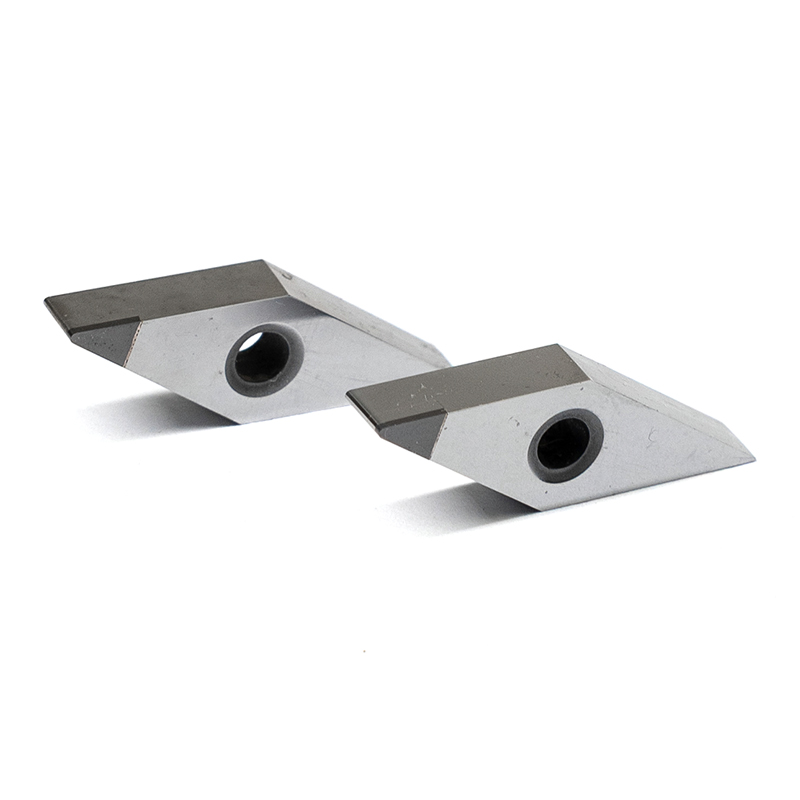

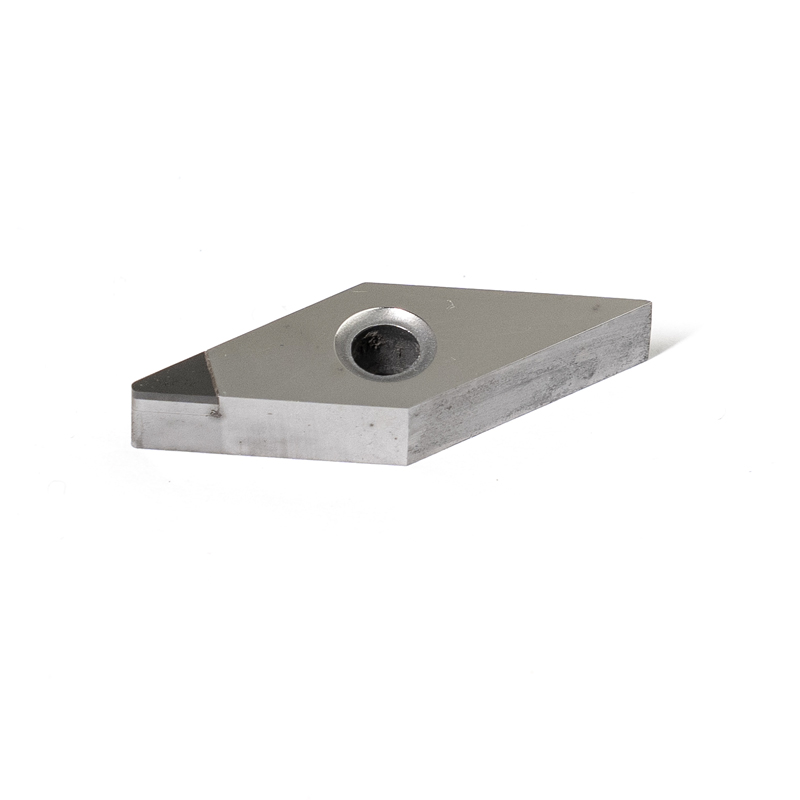

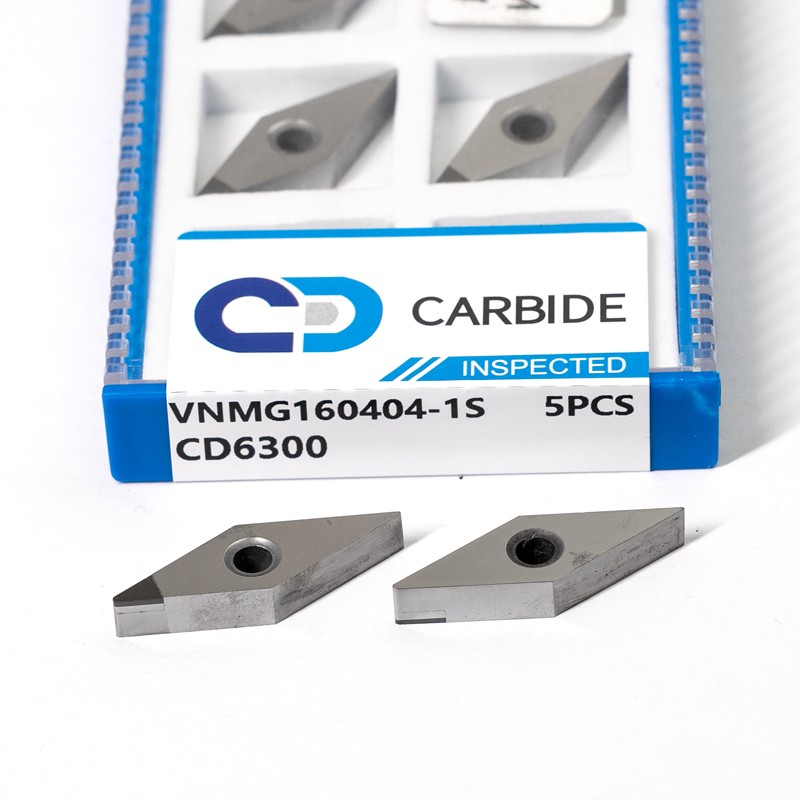

VNMG160404-1S CD6300 PCD Turning Insert
Parameter / Feature | Specification Details |
Model Number | VNMG160404-1S |
Grade | CD6300 (Premium General-Purpose PCD) |
Tool Material Type | PCD (Polycrystalline Diamond Tipped) |
Shape | V - 35° Diamond (Negative Insert) |
Corner Radius | 0.4 mm (04) |
Edge Preparation / Suffix | -1S (Optimized for High Stability & Smooth Evacuation) |
ISO Application Range | ISO N (Aluminum, Copper, Non-Ferrous Metals & Composites) |
Machining Performance & Applications
Category | Application & Values |
Machining Hardness Range | Not evaluated by HRC (PCD tools are selected based on material abrasiveness rather than steel hardness) |
Machining Method | High-speed precision profiling, fine finish turning, and intricate undercutting |
Cutting Speed (V_c) | Aluminum Alloys: 400 - 2500 m/min | Copper & Plastics: 300 - 1500 m/min |
Feed Rate (f) | 0.05 - 0.20 mm/rev |
Depth of Cut (a_p) | 0.05 - 1.5 mm (Engineered for superior dimensional control) |
Target Materials & Application Fields
Target Materials:
Aluminum Alloys: High-silicon aluminum, cast aluminum, aluminum wheels, and wrought alloys (e.g., 6061, 7075).
Copper Alloys: Brass, bronze, copper parts, and highly conductive components.
Non-Metallic Composites: Carbon fiber (CFRP), fiberglass (GFRP), graphite, acrylics, and hard plastics.
Application Fields:
Automotive Industry: Precision mirror-finish turning of aluminum alloy wheel hubs, engine pistons, and blocks.
Aerospace Hardware: High-speed CNC profiling of lightweight structural parts and drone frame components.
30C Electronics & Digital Hardware: Fine face turning of aluminum phone shells, tablet casings, and camera rings.
