DESCRIPTION

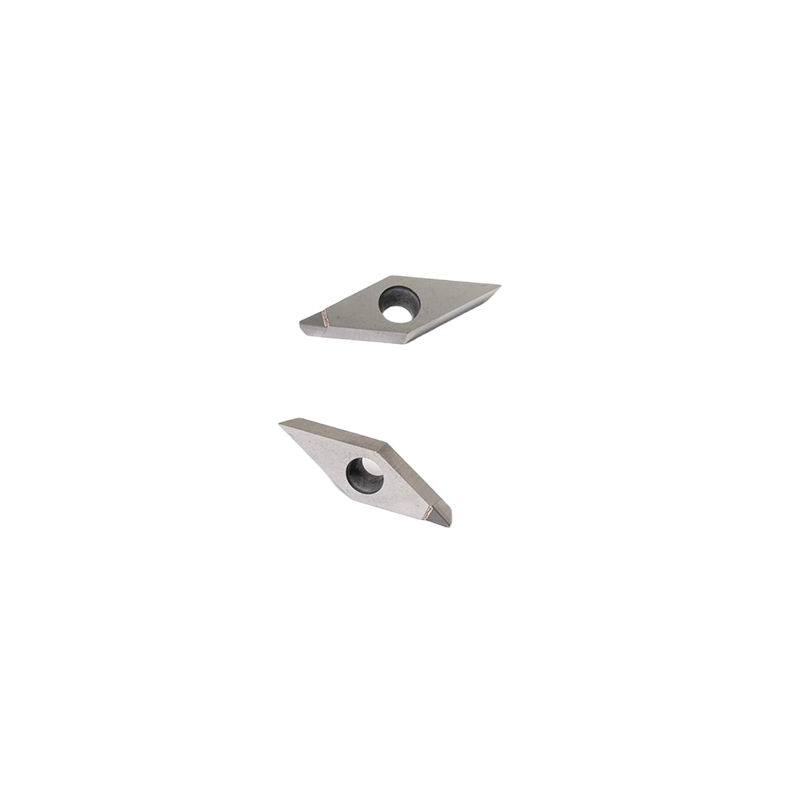

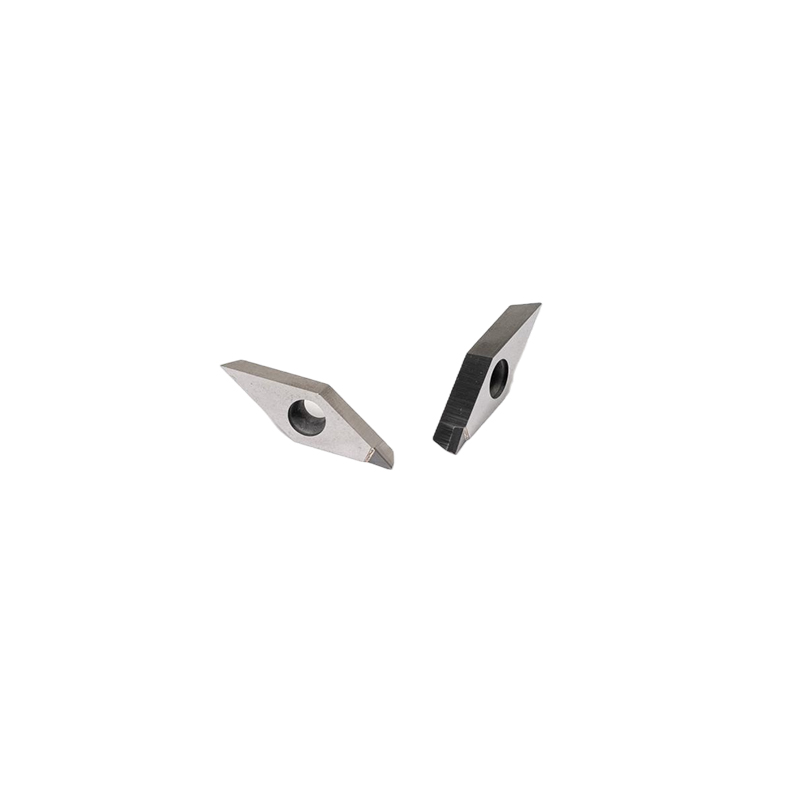

VCGT160402-1S PCD Diamond Turning Insert
The VCGT160402-1S is a professional-grade Polycrystalline Diamond (PCD) insert engineered for ultra-high-speed finishing of non-ferrous metals and abrasive non-metallic materials. Featuring a 35° rhombic shape with a positive rake angle, this insert is designed to minimize cutting forces and prevent "built-up edge" (BUE), resulting in a superior surface finish.
Equipped with a Single-Tip (1S) diamond edge, this tool offers the extreme hardness and abrasion resistance required to maintain tight tolerances over long production runs.
Technical Specifications
| Parameter | Specification |
| ISO Code | VCGT160402-1S |
| Material | PCD (Polycrystalline Diamond) |
| Shape | V-Shape (35° Rhombic) |
| Clearance Angle | 7° (Positive) |
| Thickness (S) | 4.76mm |
| Corner Radius (RE) | 0.2mm |
| Cutting Edge | 1S (Single Tipped) |
CNC Inserts - Frequently Asked Questions
1. How do I choose the right grade for my specific machining application?

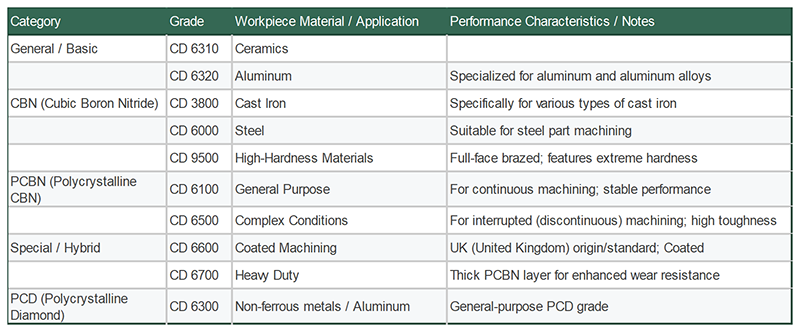

Choosing the correct grade is crucial for tool life and performance. We provide a comprehensive Grade Cross-Reference Chart that maps our CD Carbide grades to major international brands like Sandvik, Mitsubishi, and Kyocera. If you are unsure, simply provide us with the workpiece material (P, M, K, S, H) and machining conditions, and our engineers will recommend the best solution.
