- 100% Solid PCBN Structure: The entire insert is made of premium PCBN, offering maximum cutting edges and the lowest cost-per-edge.
- Extreme Hard Machining (HRC 45-68): Perfectly replaces slow grinding processes for high-speed roughing on hardened steel & cast iron.
- Factory Direct Pricing & OEM: Direct supply with customized edge preparation (chamfering/honing) to maximize your CNC tool life.
- Optimize Your Machining Cost Today! Click 'Send Inquiry' for Grade Datasheet and Bulk Discounts.
DESCRIPTION
Technical Parameter & Detail Specification

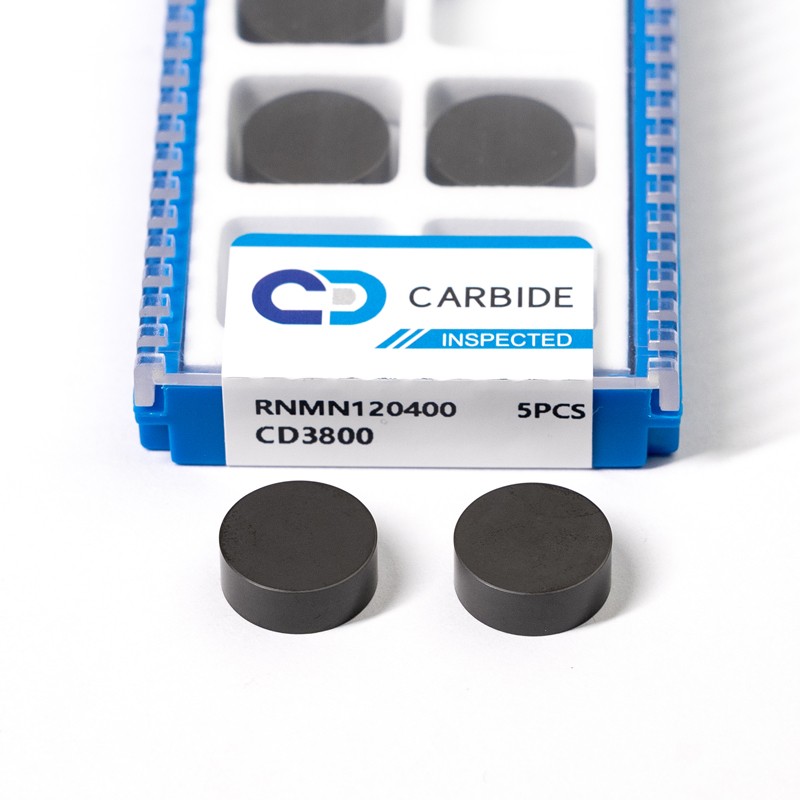

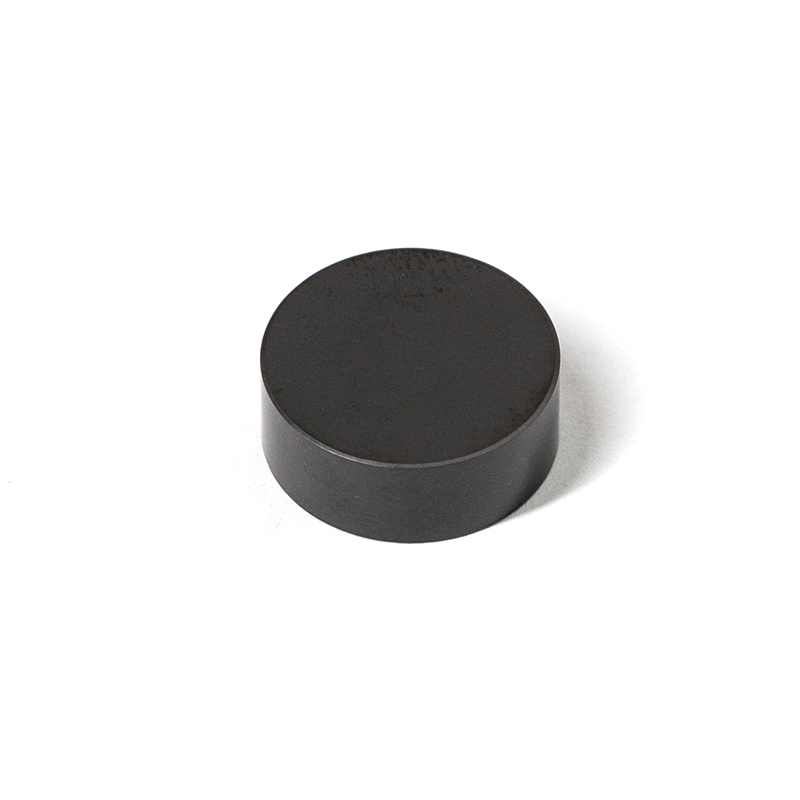

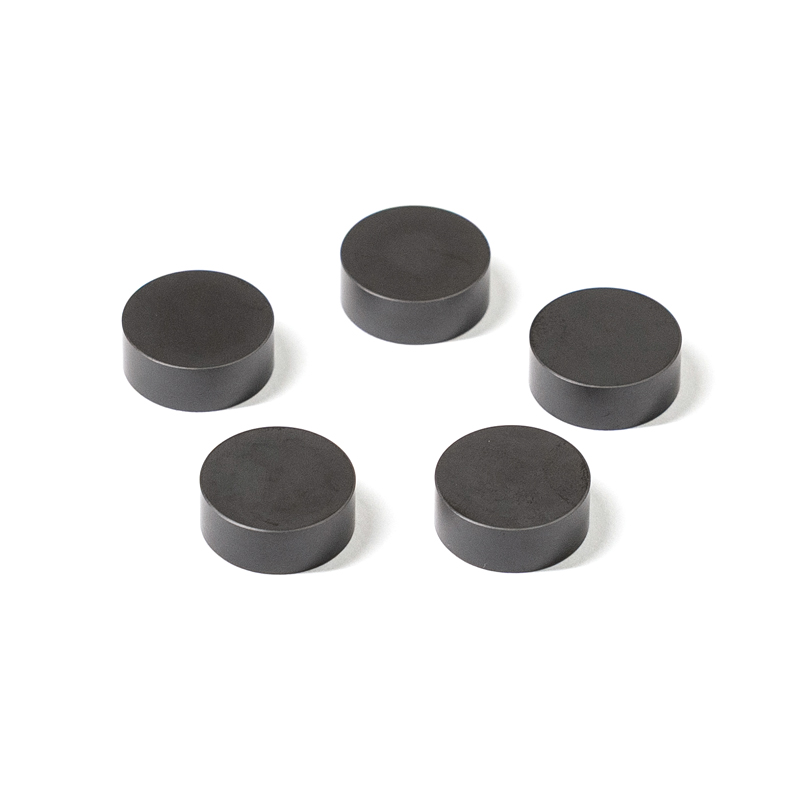

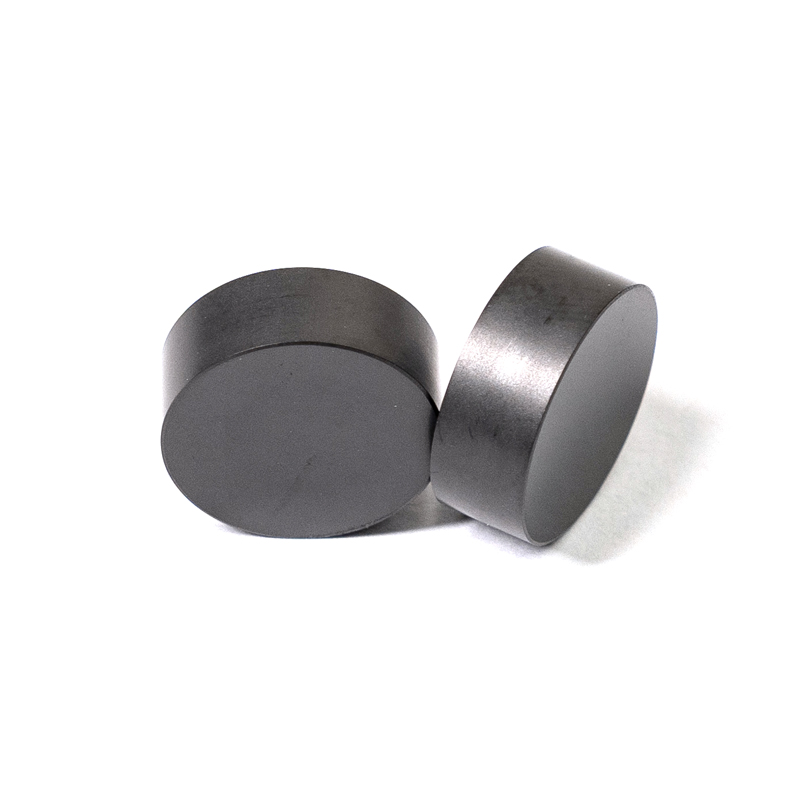

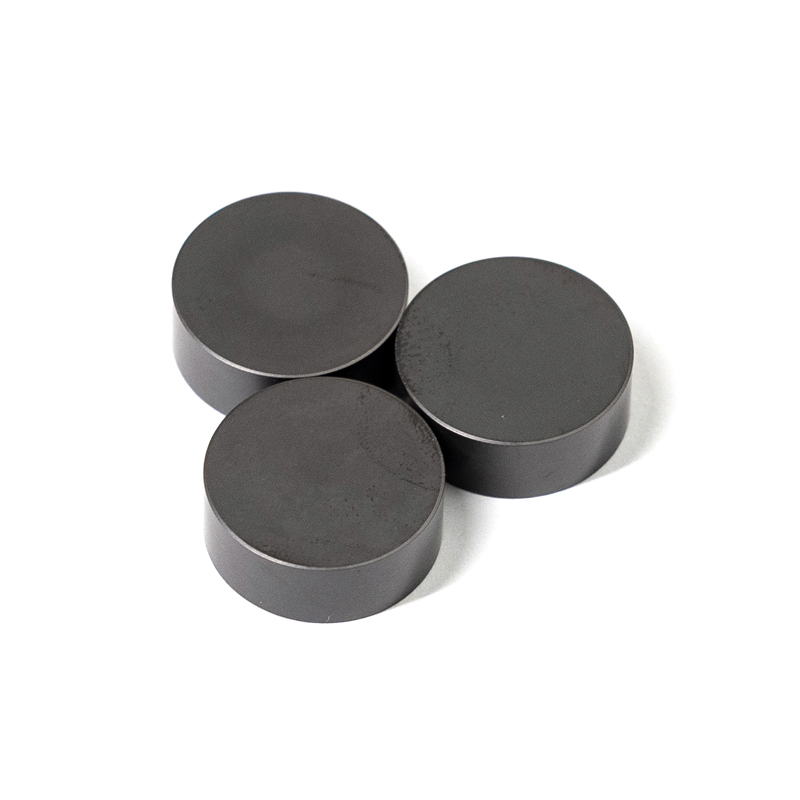

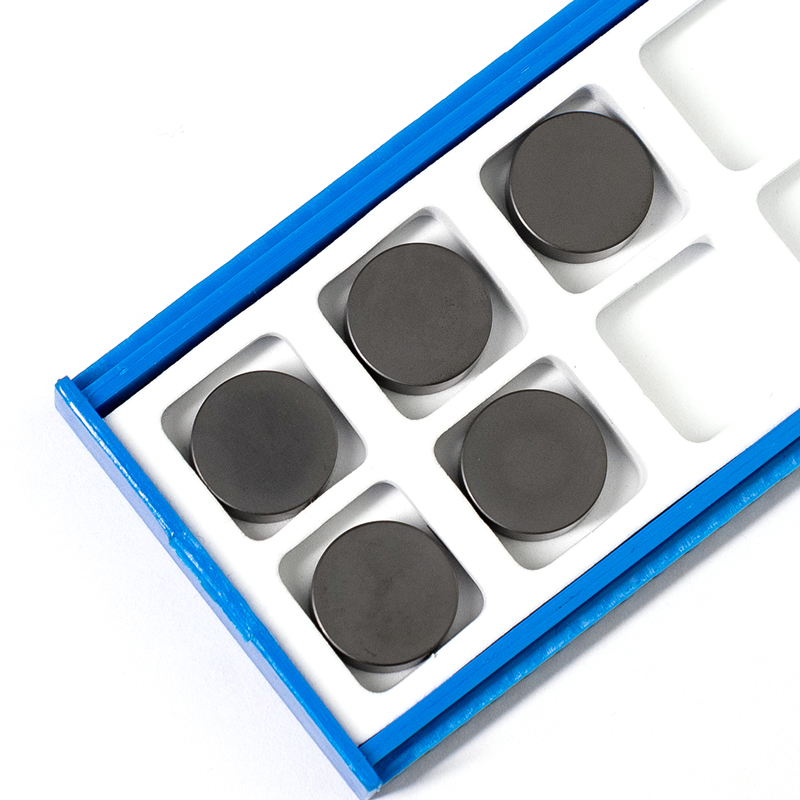

RNMN120400-CD3800 Solid PCBN Insert
Parameter / Feature | Specification Details |
Model Number | RNMN120400 (RNMN1204) |
Shape | R - Round (Solid PCBN without hole) |
Inscribed Circle (IC) | 12.7 mm |
Thickness (S) | 4.76 mm |
Grade | CD3800 (Premium High-Content Solid PCBN) |
Structure | Solid PCBN (100% full-volume CBN material, multi-edge usability) |
Machining Parameters & Applications
Category | Application & Values |
Machining Hardness | HRC 45 – HRC 68 (Highly optimized for ultra-hard metals) |
Machining Method | Heavy-duty rough turning, high-depth profiling, heavily-interrupted cutting |
Cutting Speed (V_c) | Hardened Steel: 80 - 160 m/min | Hard Cast Iron/Rolls: 150 - 450 m/min |
Feed Rate (f) | 0.10 - 0.40 mm/rev (High feed rate capability) |
Depth of Cut (a_p) | 0.2 - 2.5 mm (Engineered for deep stock removal) |
Target Materials
Hardened Steels: High-speed steel (HSS), bearing steel, alloy tool steel, carburized steel (e.g., GCr15, Cr12MoV, 20CrMnTi).
High-Hardness Cast Iron: High-chromium cast iron, Ni-hard cast iron, chilled cast iron, and nodular graphite iron rolls.
Abrasive Materials: Powder metallurgy components, hard-facing cladding alloys, and sintered iron.
Primary Application Fields
Roll Machining Industry: Heavy-duty rough turning and finishing of mill rolls, crescent ribs, and section rolls in steel plants.
Automotive Transmission Systems: Processing of hardened automotive components such as gear shafts, transmission gears, CV joints, and brake discs.
Mining & Heavy Machinery: Precision machining of large slurry pump impellers, wear-resistant liners, and heavy industrial crusher components.
Die & Mold Industry: Direct hard-milling or turning of high-alloy injection molds and stamping die cores without soft annealing.
Looking for a Reliable Solid PCBN Supplier?
Optimize Your Machining Cost Today! Click 'Send Inquiry' for Grade Datasheet and Bulk Discounts.
