DESCRIPTION

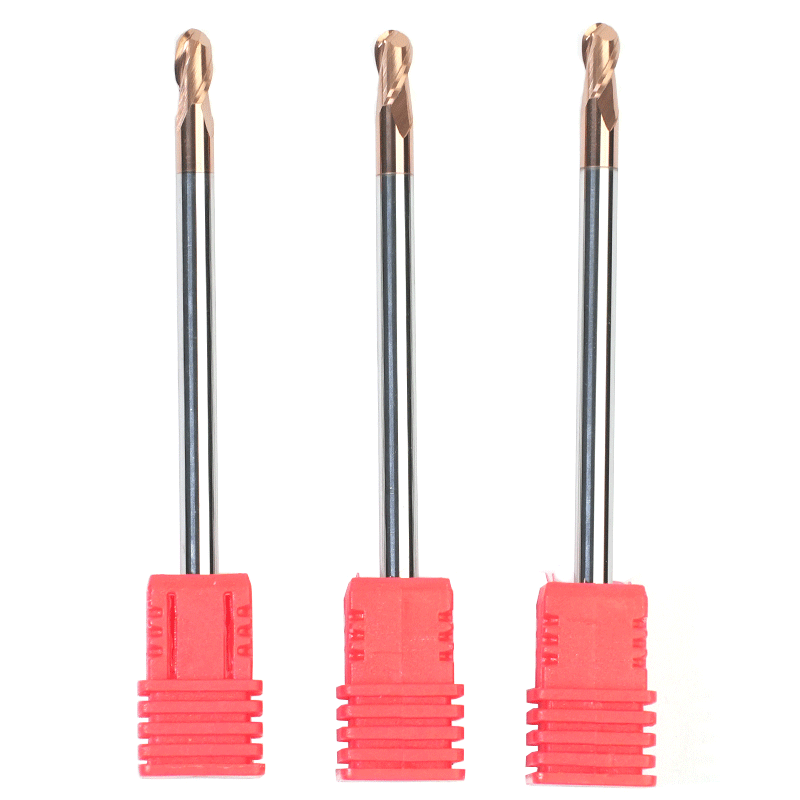

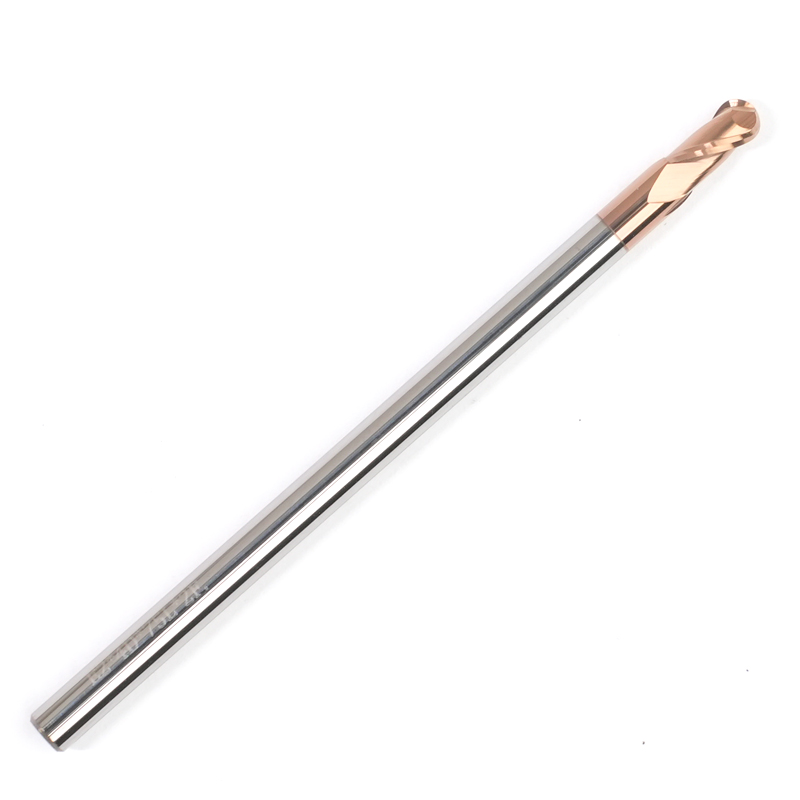

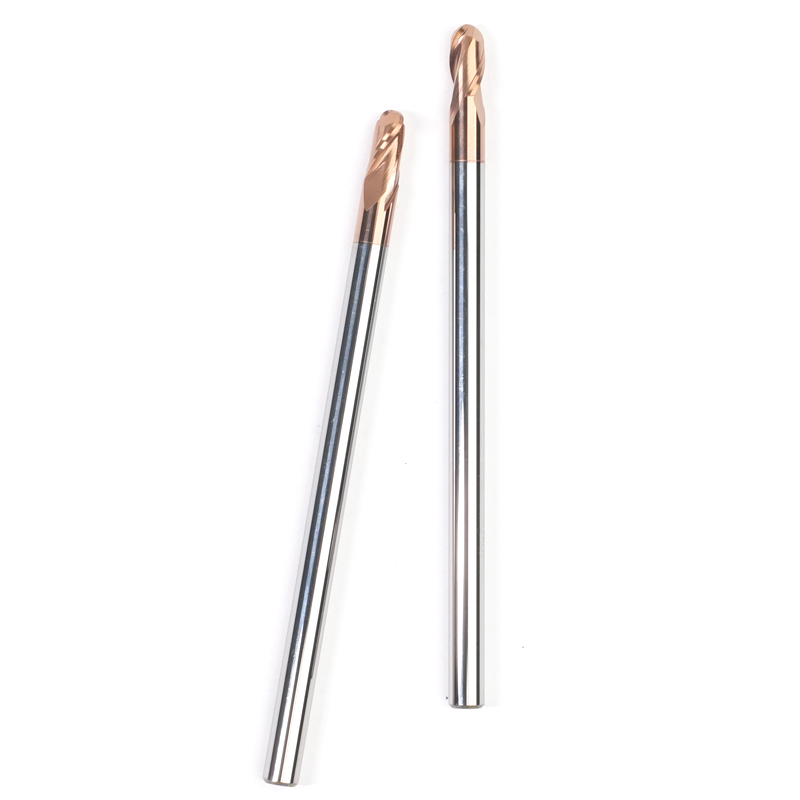

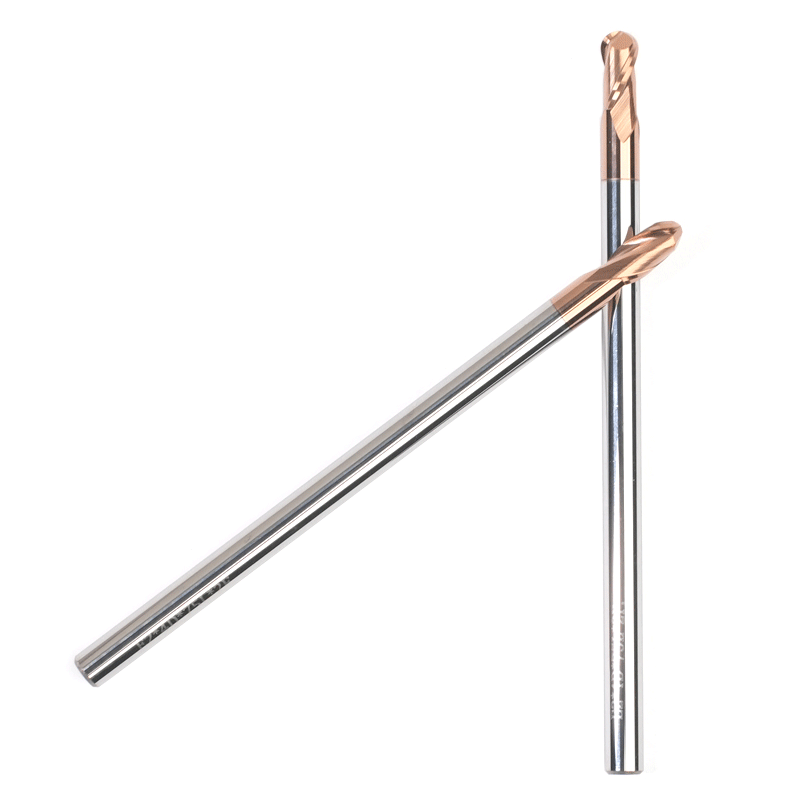

RC55 High-Hardness 2-Flute Ball Nose End Mill | D4*75 Extended Reach

This HRC55 2-flute carbide ball nose end mill is designed for high-precision machining with an extended reach. With a total length of 75mm, this tool is perfect for deep-cavity and deep-pocket milling on high-hardness materials.

• Extended Reach for Deep Cavities: The longer 75mm length is ideal for reaching into deep pockets and tight spaces, eliminating the need for tool extensions and ensuring greater stability and rigidity during machining.

• Precision Ball Nose Design: The D4mm ball nose tip is perfect for complex curved surface machining, arc slotting, and fine contouring, providing a smooth and precise finish on the workpiece.

• 2-Flute Structure for Smooth Chip Evacuation: The optimized 2-flute design provides a large chip space, preventing chip clogging and secondary cutting. This boosts machining efficiency and improves surface finish.

• Designed for High-Hardness Materials: Made from high-quality carbide, this tool is tailored for materials up to HRC55. It effectively reduces tool wear and extends service life, making it a reliable choice for machining hardened steel and mold steel.

Product Specifications:

• Tool Type: Ball Nose End Mill

• Number of Flutes: 2

• Shank Diameter (D1): 4mm

• Cutting Diameter (D2): 4mm

• Overall Length (L): 75mm

• Applicable Materials: Hardened Steel, Mold Steel, High-Hardness Alloy Steel (HRC≤55)

• Applications: Deep-pocket milling, curved surface machining, finishing, chamfering, engraving

Large quantity with big discount.

FAQ

1) When can I get the price?

We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2) How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design and paper quality, we will provide you sample for free, as long as you afford the express freight.

3) How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-7 workdays. You can use your own express account or prepay us if you do not have an account.

4) How long does the whole procedure being worked out?

After you place a order,the production handling time is about 20-25 days. We need 7 days to prepare all the stuff then 15 days for manufacturing.

5) What about the transportation and delivery date?

Normally we use shipment to transprot the goods.It is about 7-25 days.It also denpends on which coutry and port you are.It could be shorter if you need to send the goods like Asian. If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.

6) Are you trading company or manufaturer?

We are professional manufacturer. We not only owns our tools factory, but also have cemented carbide factory.

7) Where is your factory located?

We are located in  Zhuzhou city , Hunan Province .,tungsten carbide base town of China

8) How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.

9) How about your stock?

We have large quantity products in stock, regular types and sizes are all in stock.

10) Is free shipping possible?

We don't offer free shipping service. We can have a discount if you buy a large quantity products
