- Tool Material: Premium CD6200 Grade Solid/Tipped PCBN
- Target Application: Heavy-Duty Hard Turning & High-Speed Cast Iron Roughing
- Ultimate Edge Strength: Round (R) Negative Shape for Maximum Notch Wear Resistance
- Inquiry Bonus: Click "Send Email" Now for Free Grade Matching & Bulk Pricing
DESCRIPTION
Product Description

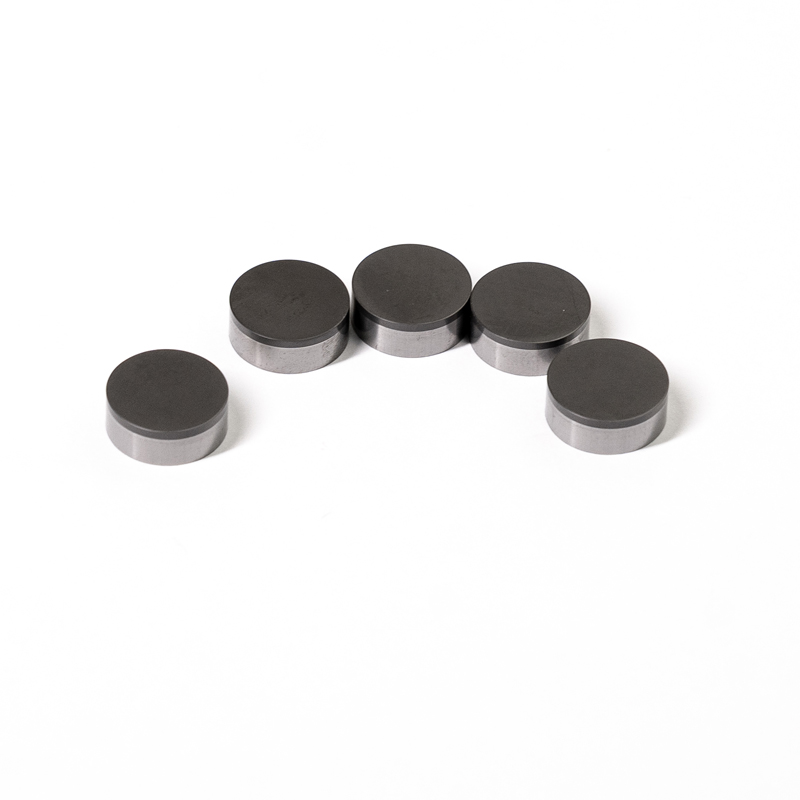

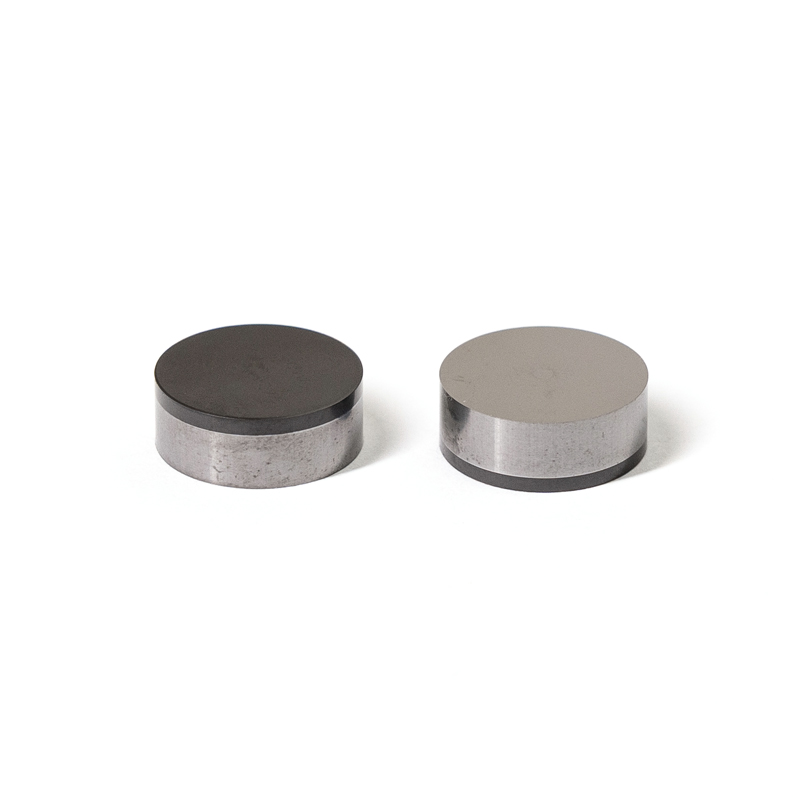

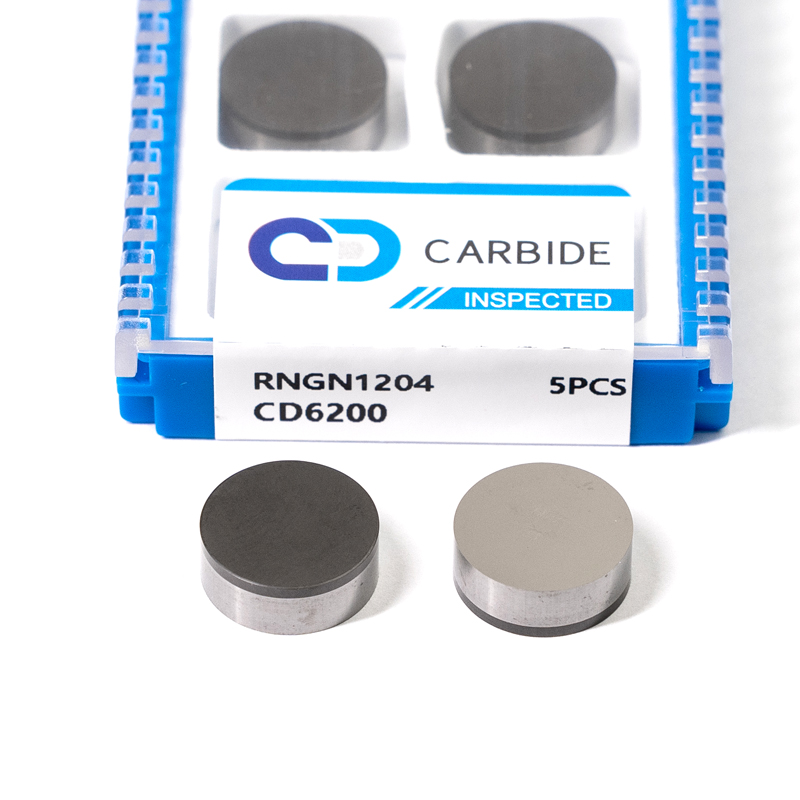

The RNGN1204-CD6200-PCBN represents the pinnacle of cutting edge strength in the superhard tooling industry. Designed with a Round (R) geometry and a Negative (N) rake angle, this insert is completely free of vulnerable corner points, allowing it to withstand extreme mechanical impacts and severe thermal loads.
The premium CD6200 PCBN grade is engineered to deliver a perfect synergy of high abrasion resistance and exceptional chemical stability at temperatures exceeding 1000. This makes it the absolute benchmark tool for heavy-duty roughing and semi-finishing of chilled iron rolls, high-chromium alloys, and hardened steel parts.
Technical Specifications
| Parameter | Specification | Rigorous Technical Detail |
| ISO Designation | RNGN1204 | Round Negative Precision Insert |
| Material Grade | CD6200 | High-Performance PCBN (Cubic Boron Nitride) |
| Insert Shape | Round (R) | Circular Geometry (No weak corners) |
| Clearance Angle | 0 (N) | Negative Rake for maximum edge support |
| Tolerance Class | G | Precision Ground periphery & thickness |
| Fixing Type | None (Solid) | Clamped by Top-Clamp (C-Type) / Wedge-Lock |
| Inscribed Circle (IC) | 12.7 mm | $1/2" Diameter |
| Thickness (S) | 4.76 mm | 3/16" Thickness for heavy loads |
| Application Range | Hardened Steel ($45-65\,\text{HRC}$), Chilled Cast Iron, High-Cr Rolls |
CNC Inserts - Frequently Asked Questions
1. How do I choose the right grade for my specific machining application?
Choosing the correct grade is crucial for tool life and performance. We provide a comprehensive Grade Cross-Reference Chart that maps our CD Carbide grades to major international brands like Sandvik, Mitsubishi, and Kyocera. If you are unsure, simply provide us with the workpiece material (P, M, K, S, H) and machining conditions, and our engineers will recommend the best solution.
2. Can you provide customized CNC tools based on our drawings?
Yes. As a factory-direct manufacturer, we specialize in bespoke engineering. Whether you need non-standard dimensions, specific chipbreakers, or customized coatings for unique alloys, our technical team can develop products based on your technical drawings (PDF/STEP) or physical samples.
3. Do you offer free samples for testing before bulk orders?
We understand that "trial cutting" is the only way to verify tool stability. We offer sample packs for professional buyers to test performance on their own CNC machines. Please contact our sales team with your machine specifications and the material you are processing to request your trial samples.
4. How do you ensure the quality consistency of your carbide inserts?
Our quality control is integrated into every step of the production process in Zhuzhou. We use high-purity tungsten carbide powder and advanced PVD/CVD coating equipment. Each batch undergoes rigorous inspection, including microscopic edge analysis and hardness testing, to ensure that the performance of the 1,000th insert is identical to the 1st.
5. What is the typical lead time for international B2B orders?
For standard models in stock (such as WNMG, CNMG, etc.), we usually ship within 3-5 business days. For customized tools or large-volume OEM orders, the production cycle typically ranges from 2 to 4 weeks, depending on the complexity of the design and coating requirements.
6. Are you a manufacturer or a trading company?
We are a direct manufacturing enterprise based in Zhuzhou, the hunan of China’s tungsten carbide industry. By cutting out the middleman, we provide factory-direct pricing and faster technical support. This allows us to offer more flexible MOQs (Minimum Order Quantities) for small-to-medium-sized distributors and specialized machine shops.
