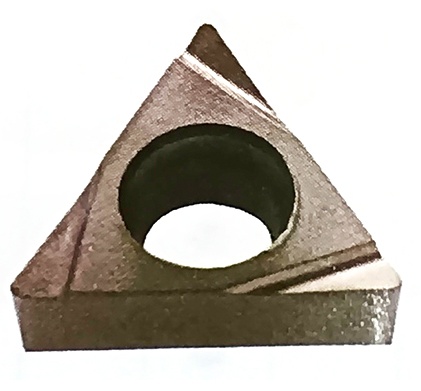

Tungsten Carbide CNC Turning Inserts TPGH110304 For Stainless Steel
  • Material:Tungsten carbide
  • Application:Stainless steel processing
  • Model:TPGH110304

DESCRIPTION

Introduction to CNC turning inserts

CNC inserts are the general term for indexable turning inserts, which are the mainstream products in modern metal cutting applications. Mainly used in metal turning, milling, cutting and grooving, thread turning and other fields.



According to the material, CNC blades can be divided into coated blades, metal ceramic blades, non-metal ceramic blades, carbide blades, superhard blades, etc.



There are five types of CNC blades: integral type, inlaid type, shock absorption type, and special type.

Features and Benefits of Carbide CNC Inserts

1. Compared with traditional welding blades, the wear resistance is better and the efficiency is higher.

2. With the continuous progress of coating technology, breakthroughs in key technologies of wear resistance and high temperature resistance will further improve efficiency and reduce processing costs.

3. Have good cutting performance and good rigidity.

4. Using high-purity hard alloy material and has long service life.

5. The CNC inserts have good interchangeability, which can realize automatic and rapid replacement and shorten the auxiliary time.

6. With high precision, it is suitable for the processing of high precision workpieces, and good processing quality can be obtained.

7. The CNC inserts can be serialized. Standardization and modularity for programming, tool management and cost reduction.

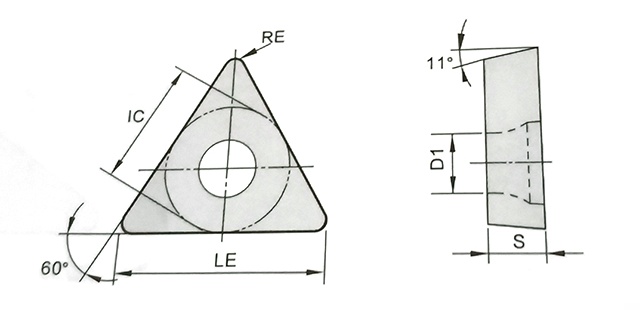

Dimension

undefined

Insert Shape

Type

Dimension

LE

IC

S

D1

RE

Finishing





undefined

TPGH080202L

8.2

4.76

2.38

2.4

0.2

TPGH080204L

8.2

4.76

2.38

2.4

0.4

TPGH090202L

9.6

5.56

2.38

2.8

0.2

TPGH090204L

9.6

5.56

2.38

2.8

0.4

TPGH110302L

11

6.35

3.18

3.18

0.2

TPGH110304L

11

6.35

3.18

3.18

0.4

TPGH11T302L

11

6.35

3.97

3.18

0.2

TPGH11T302R

11

6.35

3.97

3.18

0.2

TPGH11T304L

11

6.35

3.97

3.18

0.4

TPGH11T304R

11

6.35

3.97

3.18

0.4






undefinedundefined

FAQ

1) When can I get the price?

We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.



2) How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design and paper quality, we will provide you sample for free, as long as you afford the express freight.



3) How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-7 workdays. You can use your own express account or prepay us if you do not have an account.



4) How long does the whole procedure being worked out?

After you place a order,the production handling time is about 20-25 days. We need 7 days to prepare all the stuff then 15 days for manufacturing.



5) What about the transportation and delivery date?

Normally we use shipment to transprot the goods.It is about 7-25 days.It also denpends on which coutry and port you are.It could be shorter if you need to send the goods like Asian. If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.



6) Are you trading company or manufaturer?

We are professional manufacturer. We not only owns our tools factory, but also have cemented carbide factory.



7) Where is your factory located?

We are located in  Zhuzhou city , Hunan Province .,tungsten carbide base town of China



8) How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.



9) How about your stock?

We have large quantity products in stock, regular types and sizes are all in stock.



10) Is free shipping possible?

We don't offer free shipping service. We can have a discount if you buy a large quantity products
