- Sturdy and Wear Resistance : These die grinder drill bits are made of tungsten carbide steel, which is highly wear-resistant. Even when grinding metals such as aluminum and copper, the service life is
- Carbide Burr with Double-Cut Design : These carbide rotary burrs adopt a cross-line design, which has the characteristics of rapid chip evacuation, can improve work efficiency and shorten cutting time
- Widely Used : such as engraving, carving, polishing, deburring, grinding, cutting, chamfering, milling, cleaning, transplanting.
DESCRIPTION
Product Overview

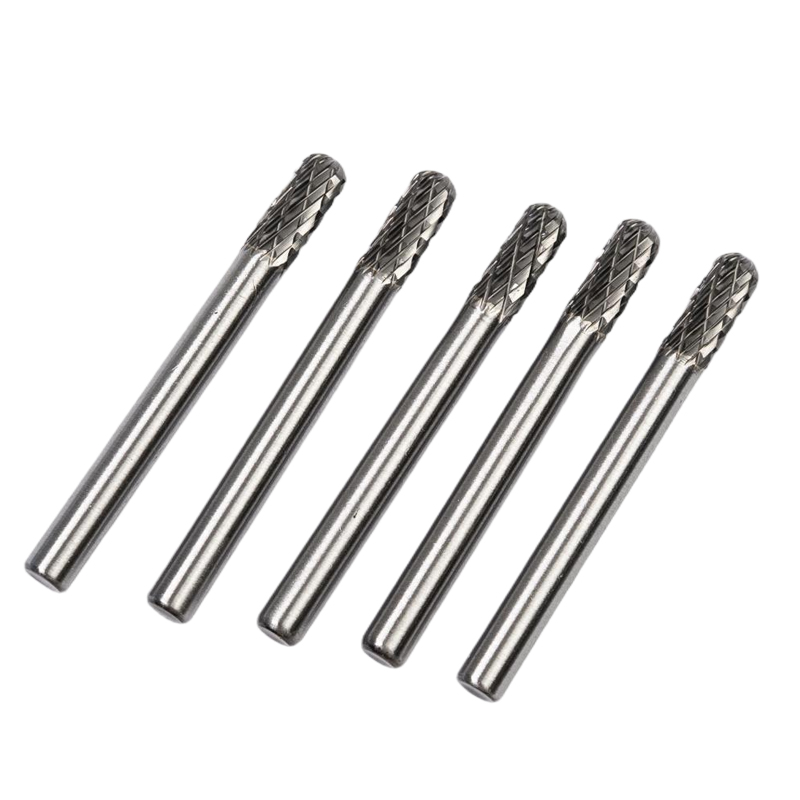

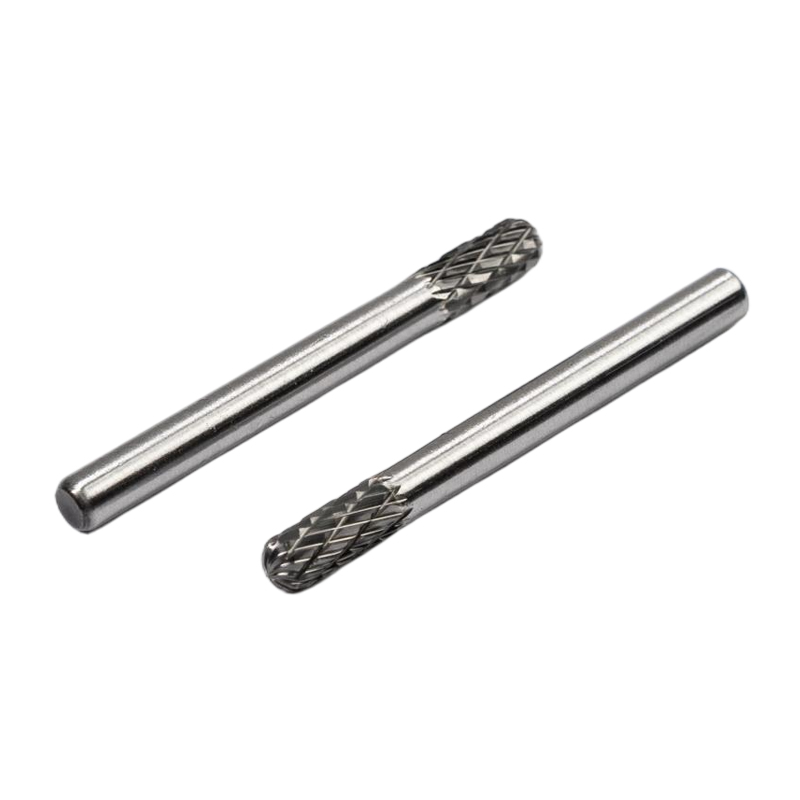

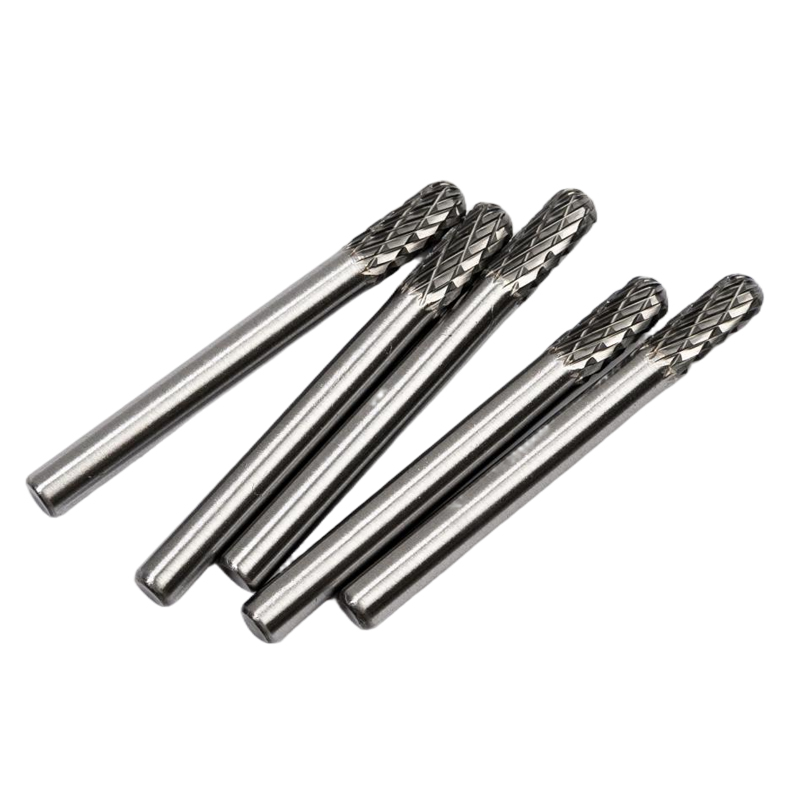

The SC-1 (C061606MX-45) is an industrial-grade C-shape (cylindrical with radius end / ball nose) solid carbide rotary burr engineered for high-efficiency contour grinding, internal fillet deburring, and surface finishing. Featuring a 6.0mm head diameter, 16mm cutting length, and a rigid 6.0mm straight shank, this tool combines lateral flute cutting with a rounded hemispherical tip. Equipped with a double-cut (cross-cut) tooth geometry, it delivers smooth operator control, rapid material removal, and low chatter across steels, stainless steel, cast iron, and high-strength alloys.
2. Technical Specifications
Standard Industry Code: SC-1 (DIN Type C)

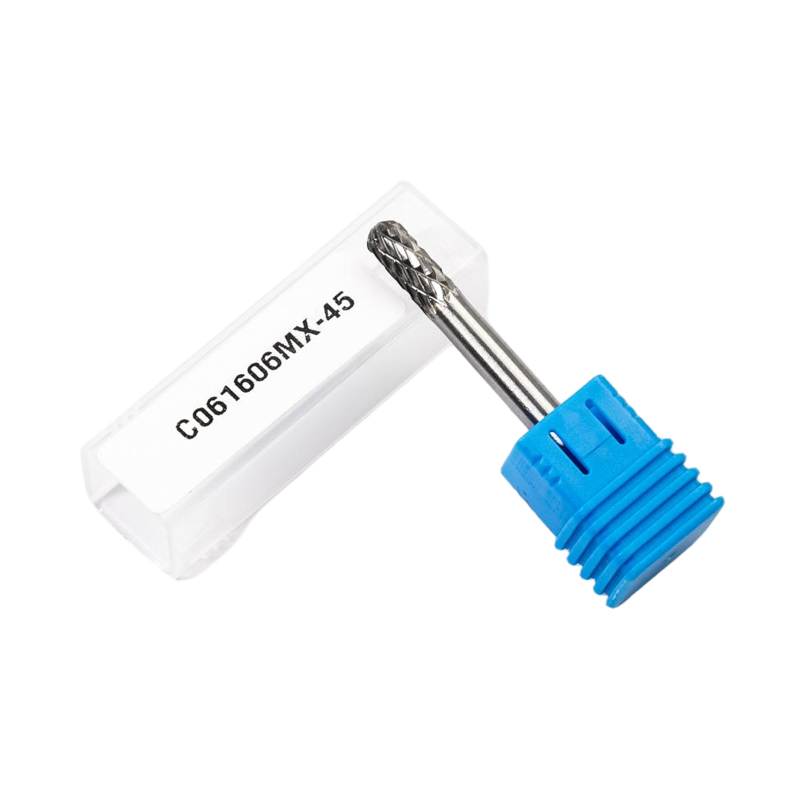

Model Code: C061606MX-45
Shape Profile: C Shape (Cylinder with Radius / Ball Nose End)
Head Diameter: 6.0 mm
Cutting Flute Length: 16 mm
Shank Diameter: 6.0 mm
Overall Length: Approx. 45 - 50 mm
Cut Style: Double Cut (Cross-cut for small chip formation and balanced operator control)
Material Matrix: Premium Ultra-Fine Micro-Grain Tungsten Carbide
Tool Compatibility: Pneumatic die grinders, electric rotary tools, flexible shaft machines, and CNC spindles.
Typical Applications
Mold & Die Finishing: Machining bottom radii, clearing inner corner transitions, and blending EDM scale in tooling cavities.
Weld Bead Dressing & Deburring: Blending corner fillet welds and deburring machined keyways, slots, and intersecting holes.
Casting & Forging Cleanup: Removing parting line flash, risers, and burrs on cast iron housings and forged alloy parts.
| Model NO. | Shape | Cutting Edge Dia A mm | Cutting length B mm | Shank Dia mm | Shank Length mm | Whole length mm |
| C0613-MX-03-38R | C | 6 | 13 | 3 | 38 | 51 |
| C0616-MX-06-45 | C | 6 | 16 | 6 | 45 | 61 |
| C0820-MX-06-45R | C | 8 | 20 | 6 | 45 | 65 |
| C1020-MX-06-45R | C | 10 | 20 | 6 | 45 | 65 |
| C1225-MX-06-45R | C | 12 | 25 | 6 | 45 | 70 |
| C1425-MX-06-45R | C | 14 | 25 | 6 | 45 | 70 |
| C1625-MX-06-45R | C | 16 | 25 | 6 | 45 | 70 |
| C1825-MX-06-45R | C | 18 | 25 | 6 | 45 | 70 |
| C2025-MX-06-45R | C | 20 | 25 | 6 | 45 | 70 |
| C2525-MX-06-45R | C | 25 | 25 | 6 | 45 | 70 |
