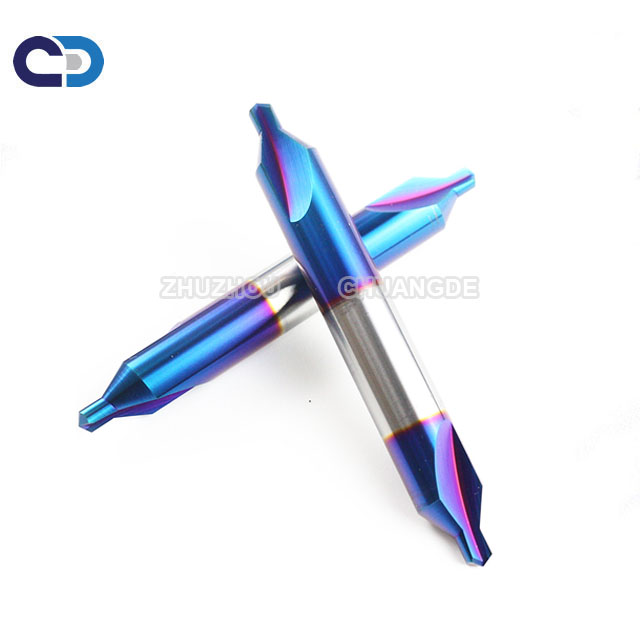

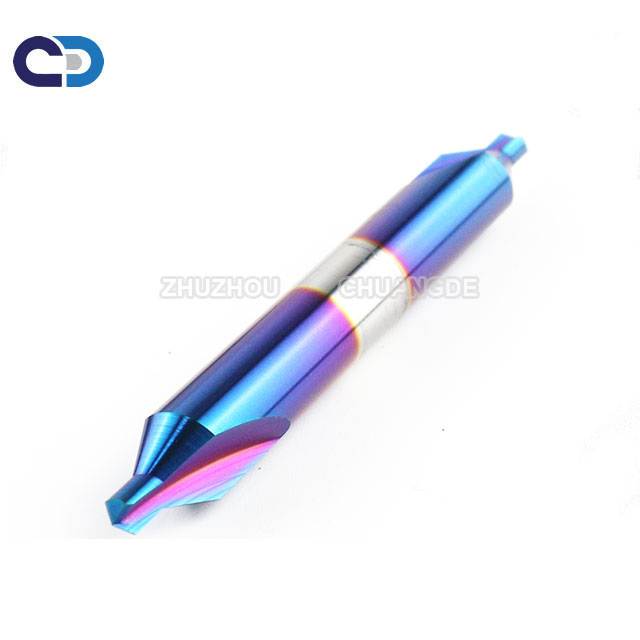

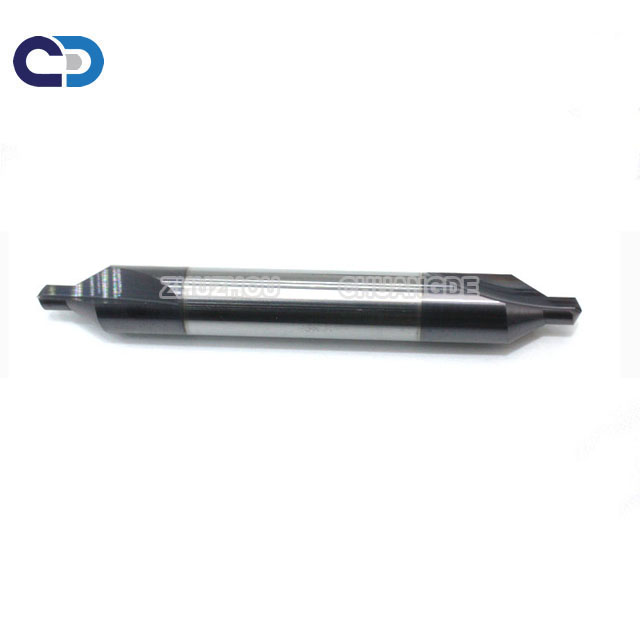

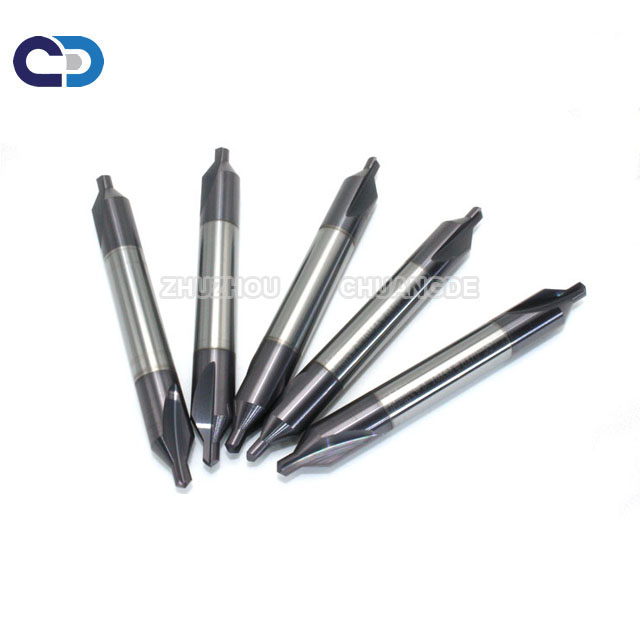

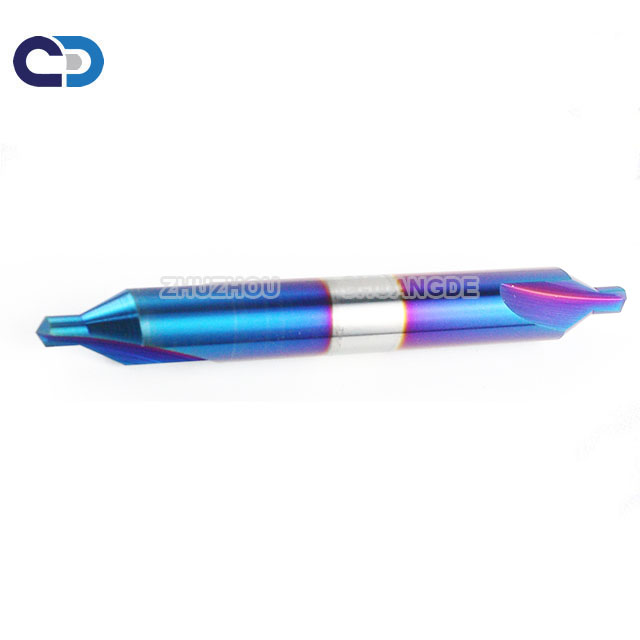

cnc Solid Carbide mills cuttings 60 Degree Center Drill
  • Material: Tungsten carbide
  • Coating: AlTiN,TiAlN,TiSiN,TiN,DLC,NANO
  • HRC: 45/55/60/65 Degrees
  • Application: cutting tools for Copper, Cast Iron, Carbon Steel, Mould Steel etc.

DESCRIPTION

Product Description of  cnc Solid Carbide mills cuttings 60 Degree Center Drill


1.Coating:Ultra-fine grain coating technology provides better wear resistance and toughness.


45 °  black coating ,55 ° Fuchsia or  bronze coating


58-60° bronze coating ,63-70 ° nano blue coating


2. Substrate:inserts shows a good capability against plastic deformation and good capability of red hardness.


3. Application fields:Precise mould,automobile,aerospace,rail.


4. Scope:Cemented carbide inserts for turning,milling,grooving,drilling, and aluminium machining.


Product Name

CD CNC 4 Flutes Flat End Mill Carbide Cutting Tools With Blue Coating

Material

Tungsten Carbide,Solid Carbide,Cemented Carbide

HRC

45/55/58/60/65/70

Product Type

Solid Carbide Flat End Mills

Coating

Altin, Tialn, Tisin, Tin, DLC,Nano, Diamond

Helix Angle

10degree,15degree,25degree,35degree,45degree,55degree

Size

Metric & Inch Size Based On Your Requirement

Tolerance

h6

Suitable For

Steel, Stainless Steel, Die Steel, Mould Steel, Carbon Steel, Cast Iron, Copper, etc.


Dimension of cnc Solid Carbide mills cuttings 60 Degree Center Drill


Tungsten carbide End Mill
Standard Dimension1.0*3*50,1.5*4*50,2.0*6*50,2.5*8*50,3.0*8*50,3.5*10*50,4*10*50,4*15*75,4*20*100,5*13*50,6*15*50,6*20*75,6*30*100,8*20*60,8*25*75,8*35*100,10*25*75,10*40*100,12*30*75,12*45*100,14*35*80,14*40*100,16*40*100,18*40*100,20*40*100,6*30*150,8*40*150
10*45*150,12*50*150,14*50*150,16*55*150,18*65*150,20*70*150,φ7*20φ8*60,φ9*20*φ10*75,φ11*25*φ12*75,φ13*40*φ14*100,φ15*40*φ16*100

Super Raw Material


ItemHRC50HRC55HRC60HRC65
GradeYG10X YL10.2 & WF25 Germany K44 &K40Sandvik H10F
Details

Grain size 0.7um, Co10%,

 Flexural strength

3320N/mm2

Grain size 0.6um,

 Co10%,  Flexural

strength 4000N/mm2

Grain size 0.5um, Co12%,

Flexural strength

4300N/mm2

Grain size 0.5um,

Co10%,  Flexural

strength 4300N/mm2



Super Coating

<td style="box-sizing: border-box; margin: 8px; padding: 0px; font-variant: inherit; font-weight: bold; font-stretch: inherit; font-size: 10pt; line-height

Coating Classifying and Advantage
ItemCoating TypeAlTinTiAlNTiSiNNaco
CharacteristicHardness(HV)33002800430042(GPA)
Thickness(UM)2.5-32.5-333
Oxidation Temp.(°C)90080010001200
Friction Coefficient0.350.30.250.4
ColorBlack Dark PurpleCopperBlue
AdvantagesHigh heat stability

Normally

cutting

Suitable for heavy

cutting, and high

hardness cutting

For high precision

 Cutting

Suitable for high

speed,

dry cutting

Suitable for cutting

mould steel, stainless

steel

Suitable for high

hardness

 cutting, mould steel

 processing

Most suitable for

 carbide cutting tools,

turning insert&


undefinedundefined

FAQ

1) When can I get the price?

We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.



2) How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design and paper quality, we will provide you sample for free, as long as you afford the express freight.



3) How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-7 workdays. You can use your own express account or prepay us if you do not have an account.



4) How long does the whole procedure being worked out?

After you place a order,the production handling time is about 20-25 days. We need 7 days to prepare all the stuff then 15 days for manufacturing.



5) What about the transportation and delivery date?

Normally we use shipment to transprot the goods.It is about 7-25 days.It also denpends on which coutry and port you are.It could be shorter if you need to send the goods like Asian. If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.



6) Are you trading company or manufaturer?

We are professional manufacturer. We not only owns our tools factory, but also have cemented carbide factory.



7) Where is your factory located?

We are located in  Zhuzhou city , Hunan Province .,tungsten carbide base town of China



8) How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.



9) How about your stock?

We have large quantity products in stock, regular types and sizes are all in stock.



10) Is free shipping possible?

We don't offer free shipping service. We can have a discount if you buy a large quantity products
