DESCRIPTION

Product Overview

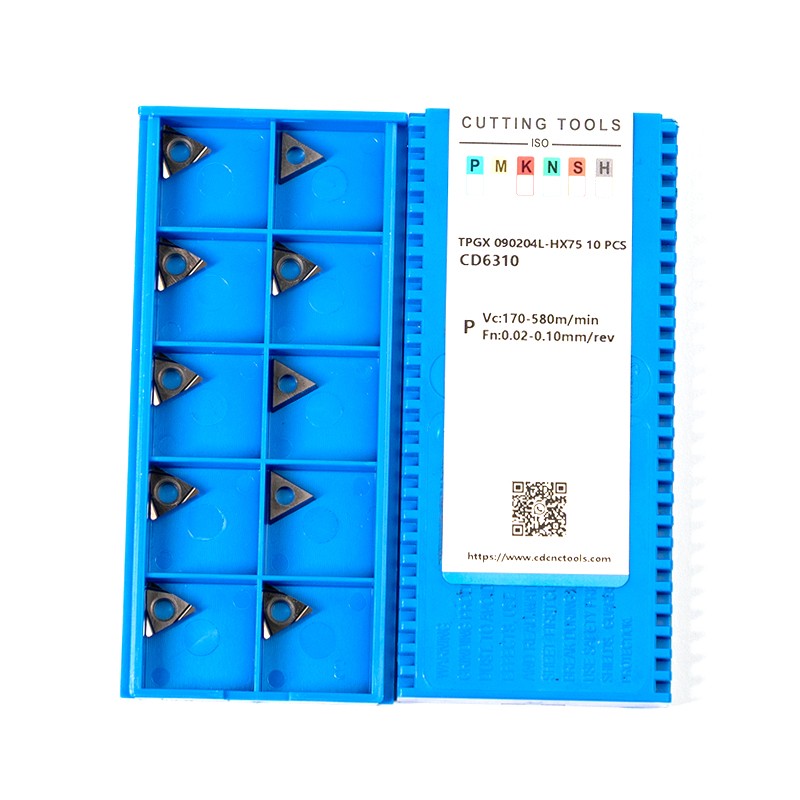

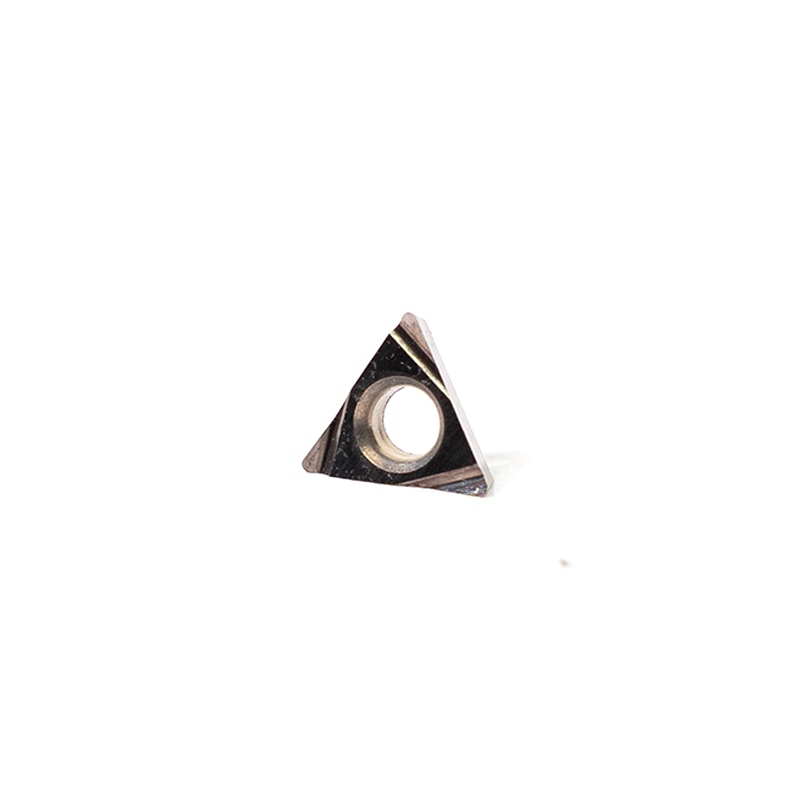

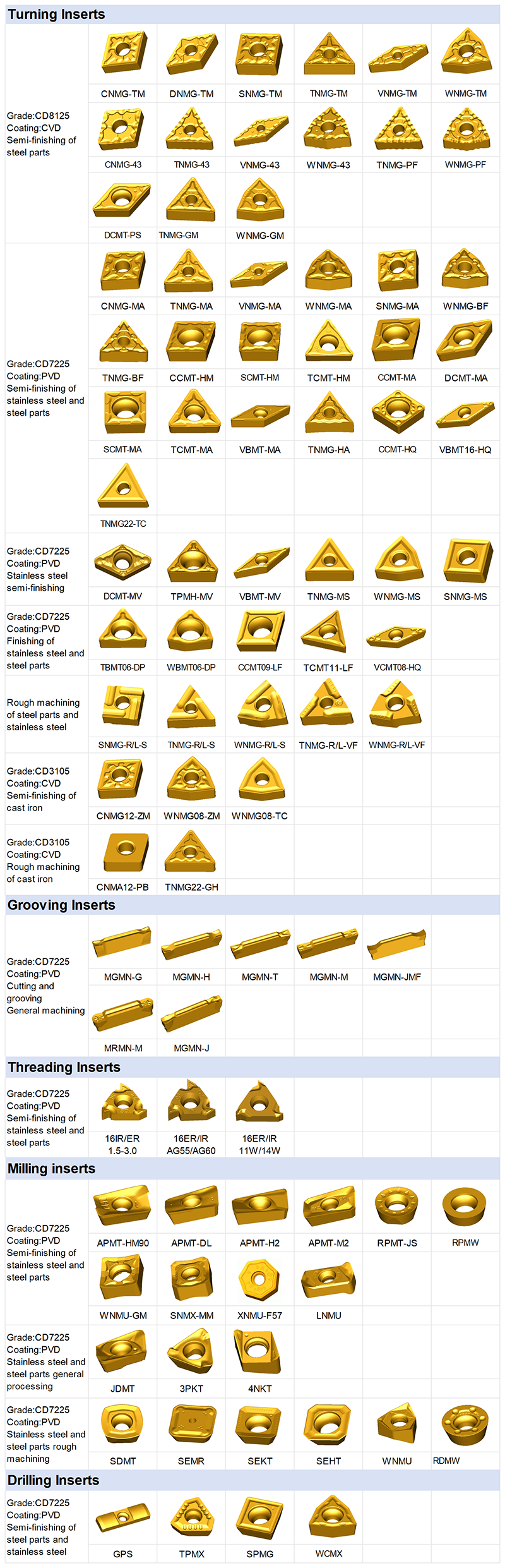

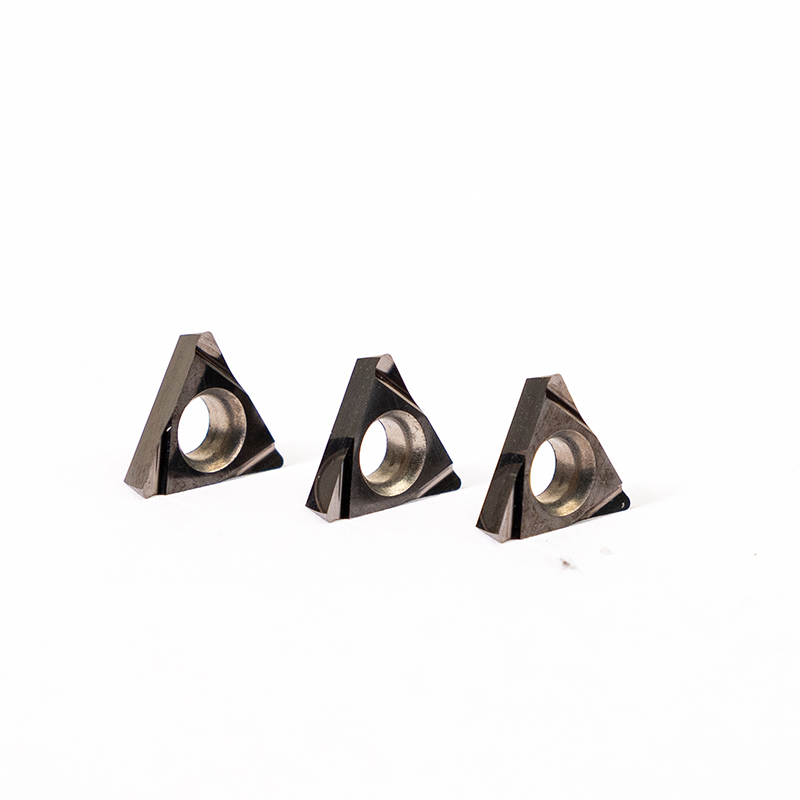

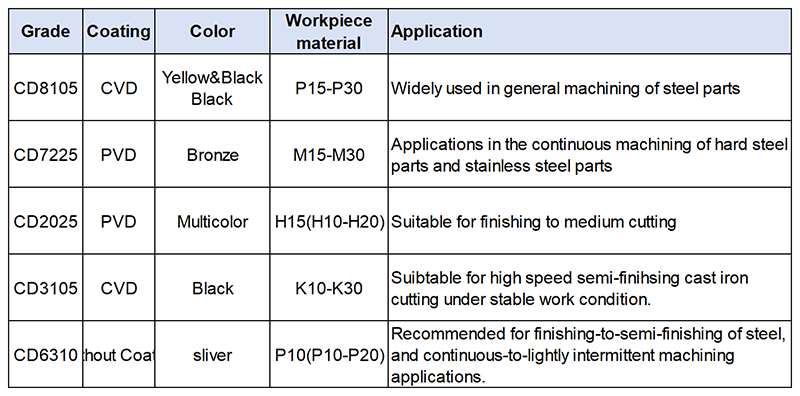

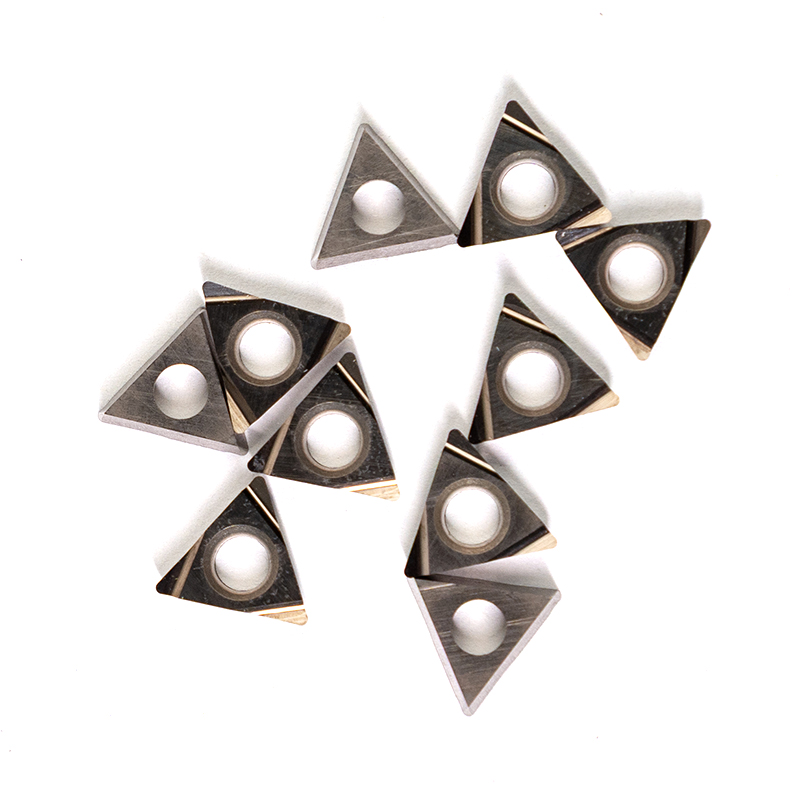

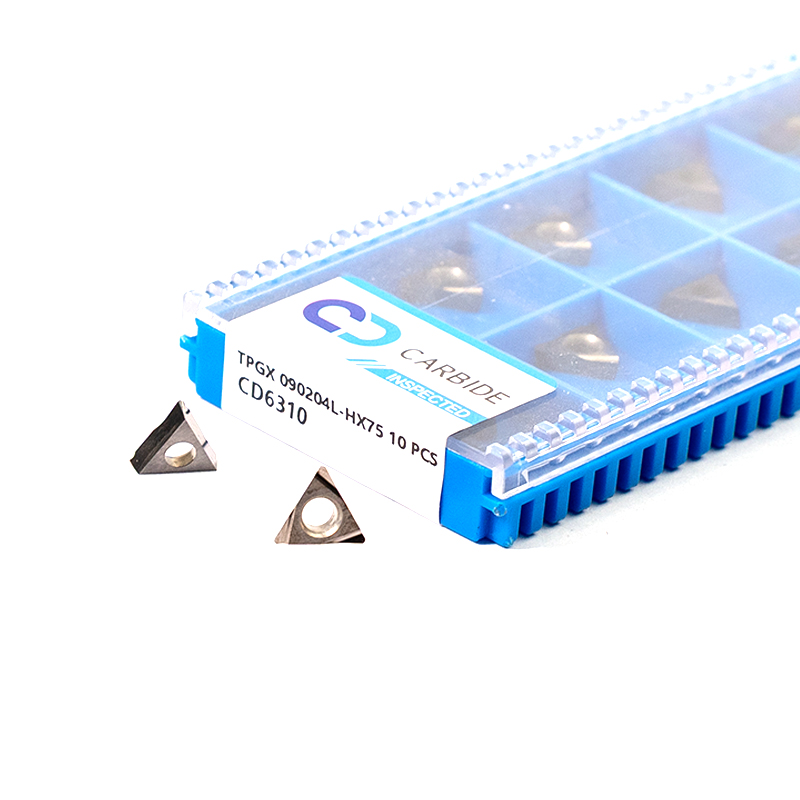

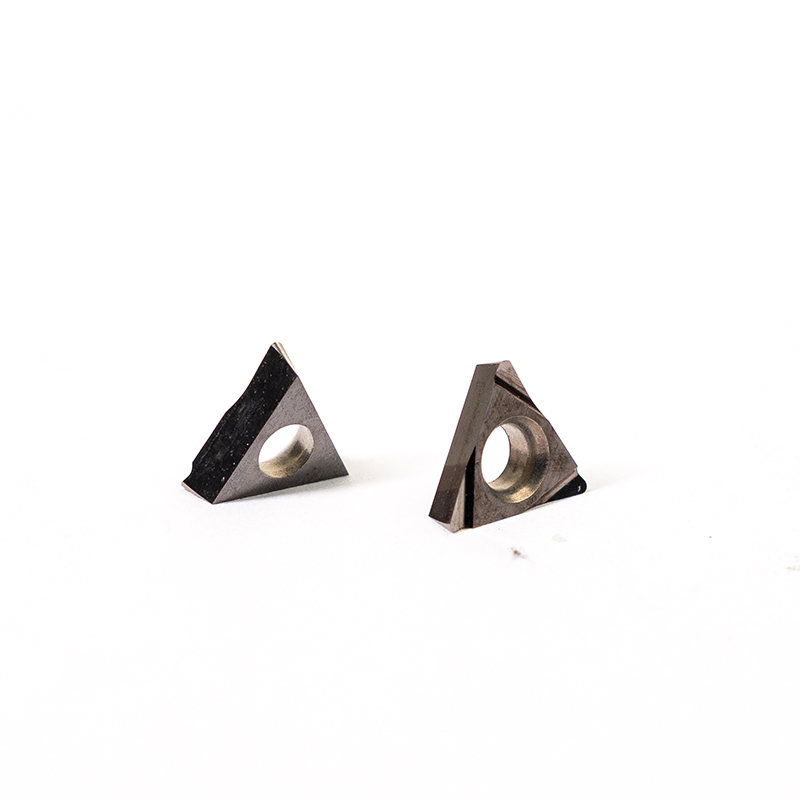

The TPGX090204L-HX75 is a high-precision, single-sided 60° triangular positive turning insert engineered for fine finishing, micro-boring, and copy-profiling of ISO P (Steels) and ISO M (Stainless Steels). Featuring a left-hand cutting direction (L) and ultra-precise ground tolerances (G), this insert is designed to deliver exceptional dimensional accuracy and a mirror-like surface finish. It is an ideal tooling solution for small-diameter internal boring bars, Swiss-type automatic lathes, and precision components.

Technical Specifications

• ISO Code: TPGX090204L-HX75 (ANSI: TPGX221L-HX75)

• Shape: T-Shape (60° Triangle)

• Cutting Direction: Left-Hand (L)

• Relief Angle: P-Type (11° Positive clearance – drastically lowers cutting resistance and radial pressure to prevent part deflection)

• Tolerance Class: G-Class (Fully perimeter-ground for high indexing repeatability and minimal runout)

• Nose Radius: 0.4 mm (R0.4 / 1/64") – Sharp corner radius optimized for fine finishes and intricate profile contours.

• Grade/Chipbreaker: HX75 (High-wear resistance PVD coating or premium cermet matrix with sharp, low-force finishing geometry)

• Machining Type: Precision internal boring, external profiling, back-turning, and ultra-fine finishing.
