- Optimized Face Grooving Range: Perfectly suited for cutting circular face grooves with a diameter from $\phi$30mm up to $\phi$50mm (Max: 50mm / Min: 30mm).
- Perfect Match for MGMN200: Seamlessly compatible with standard MGMN200-G (2mm width) carbide grooving inserts for precise and clean grooving.
- Superior Rigidity & Anti-Vibration: Crafted from premium-grade alloy steel with a hardened finish, drastically reducing deflection and ensuring reliable performance under high cutting forces.

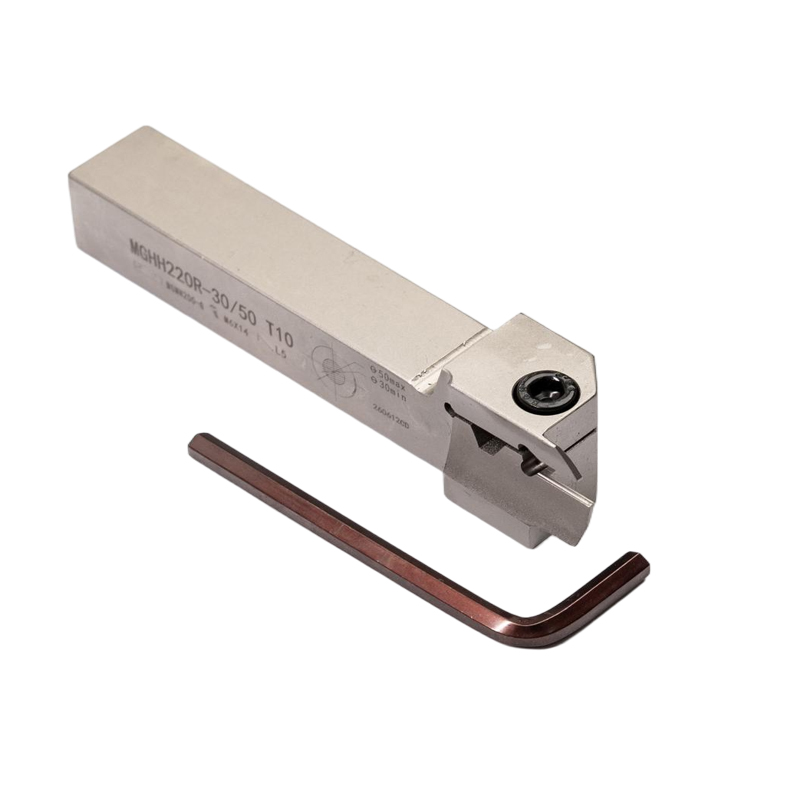

- Secure Screw Clamping Structure: Utilizes a strong M6x14 screw and L5 hex wrench setup to lock the insert tightly, preventing displacement and maintaining structural tolerance.
DESCRIPTION

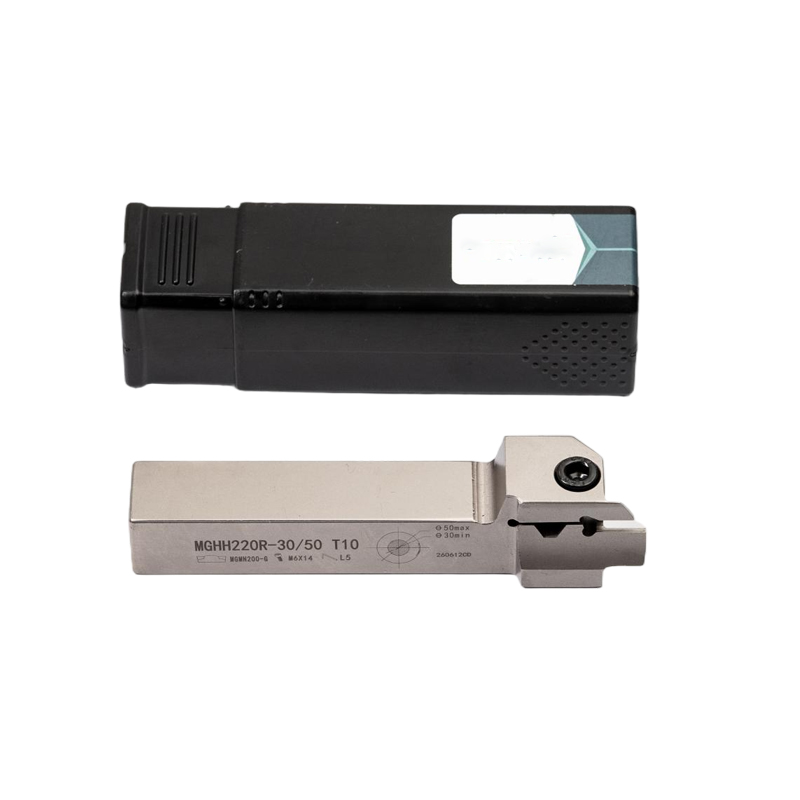

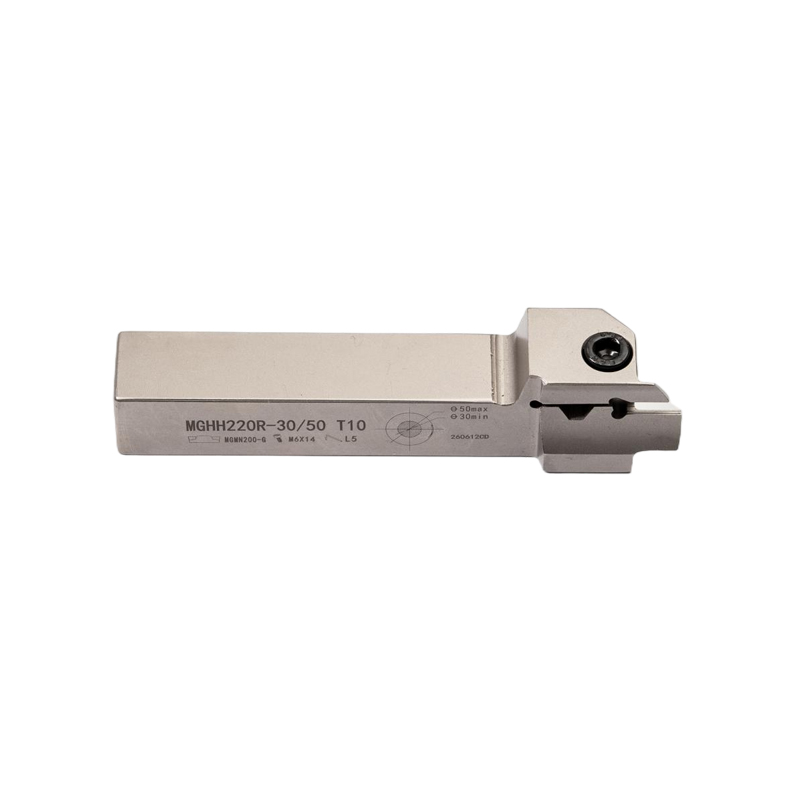

MGHH220R-30/50 T10 CNC Lathe Indexable Face Grooving Tool Holder
Achieve high stability and precise surface finish with our professional MGHH220R-30/50 T10 Face Grooving Tool Holder. Specifically engineered for CNC lathes and turning centers, this tool holder is designed for face grooving operations within a diameter range of 30mm to 50mm, offering a maximum grooving depth of 10mm.
With its robust design, it effectively eliminates vibration, ensures optimal chip evacuation, and minimizes tool wear during heavy-duty profiling operations.
Product Specifications
Parameter | Technical Details |
Model | MGHH220R-30/50 T10 |
Shank Size | 20 mm x 20 mm |
Grooving Diameter Range | 30 mm – 50 mm |
Max. Grooving Depth (Tmax) | 10 mm |
Direction | Right Hand |
Applicable Insert | MGMN200-G (2.0mm Width) |
Clamping Screw | M6 x 14 |
Hex Wrench | L5 |
Material | High-Tensile Hardened Alloy Steel |
CNC Inserts - Frequently Asked Questions
1. How do I choose the right grade for my specific machining application?
Choosing the correct grade is crucial for tool life and performance. We provide a comprehensive Grade Cross-Reference Chart that maps our CD Carbide grades to major international brands like Sandvik, Mitsubishi, and Kyocera. If you are unsure, simply provide us with the workpiece material (P, M, K, S, H) and machining conditions, and our engineers will recommend the best solution.
2. Can you provide customized CNC tools based on our drawings?
Yes. As a factory-direct manufacturer, we specialize in bespoke engineering. Whether you need non-standard dimensions, specific chipbreakers, or customized coatings for unique alloys, our technical team can develop products based on your technical drawings (PDF/STEP) or physical samples.
3. Do you offer free samples for testing before bulk orders?
We understand that "trial cutting" is the only way to verify tool stability. We offer sample packs for professional buyers to test performance on their own CNC machines. Please contact our sales team with your machine specifications and the material you are processing to request your trial samples.
4. How do you ensure the quality consistency of your carbide inserts?
Our quality control is integrated into every step of the production process in Zhuzhou. We use high-purity tungsten carbide powder and advanced PVD/CVD coating equipment. Each batch undergoes rigorous inspection, including microscopic edge analysis and hardness testing, to ensure that the performance of the 1,000th insert is identical to the 1st.
5. What is the typical lead time for international B2B orders?
For standard models in stock (such as WNMG, CNMG, etc.), we usually ship within 3-5 business days. For customized tools or large-volume OEM orders, the production cycle typically ranges from 2 to 4 weeks, depending on the complexity of the design and coating requirements.
6. Are you a manufacturer or a trading company?
We are a direct manufacturing enterprise based in Zhuzhou, the hunan of China’s tungsten carbide industry. By cutting out the middleman, we provide factory-direct pricing and faster technical support. This allows us to offer more flexible MOQs (Minimum Order Quantities) for small-to-medium-sized distributors and specialized machine shops.
