- Anti-Friction Coating: Premium nano-coating serves as a heat barrier, actively preventing soft metal pick-up or welding.
- Non-Clogging Flutes: Deep, wide Alu Cut channels throw sticky shavings out instantly to avoid tool loading.
- Precise Tapered Cone: 12.7mm ball nose cone shape is ideal for internal radius smoothing and narrow slot deburring.
- Standard 1/4" Shank: Precision-ground fractional shank ensures zero slipping and minimal vibration inside standard collets.
DESCRIPTION
Product Overview

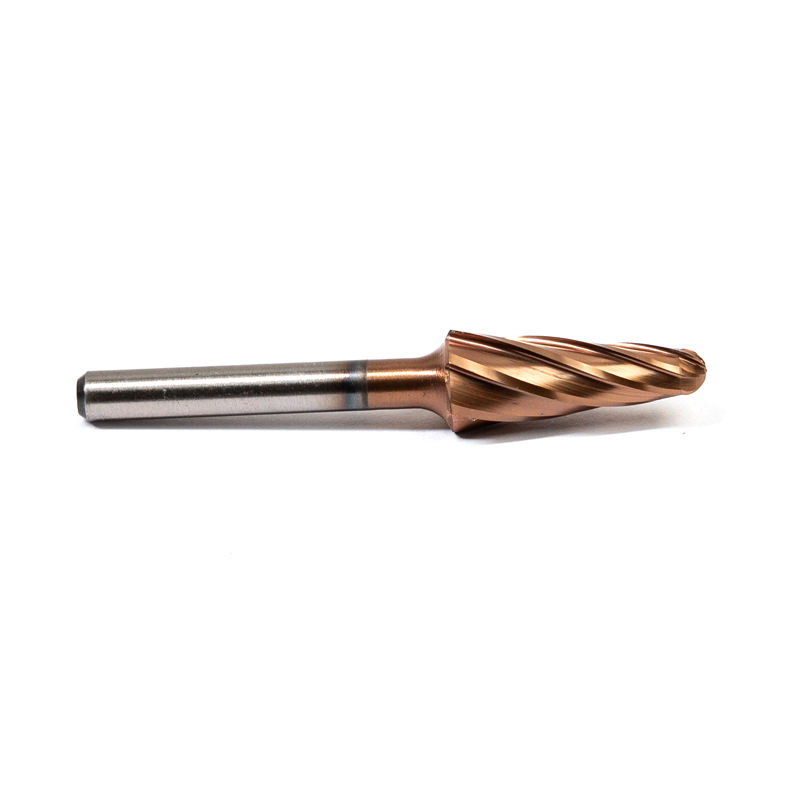

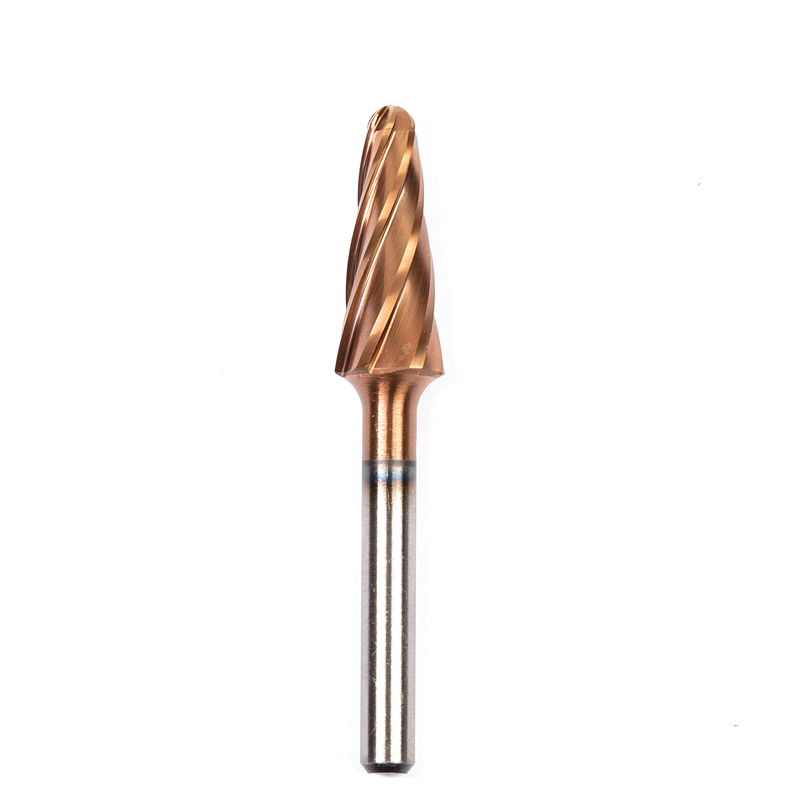

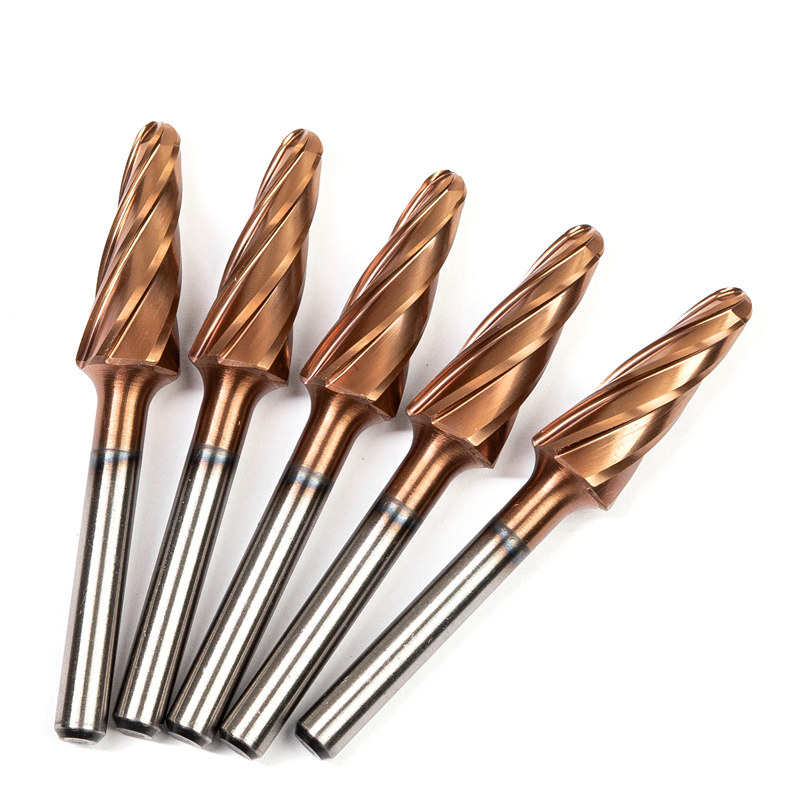

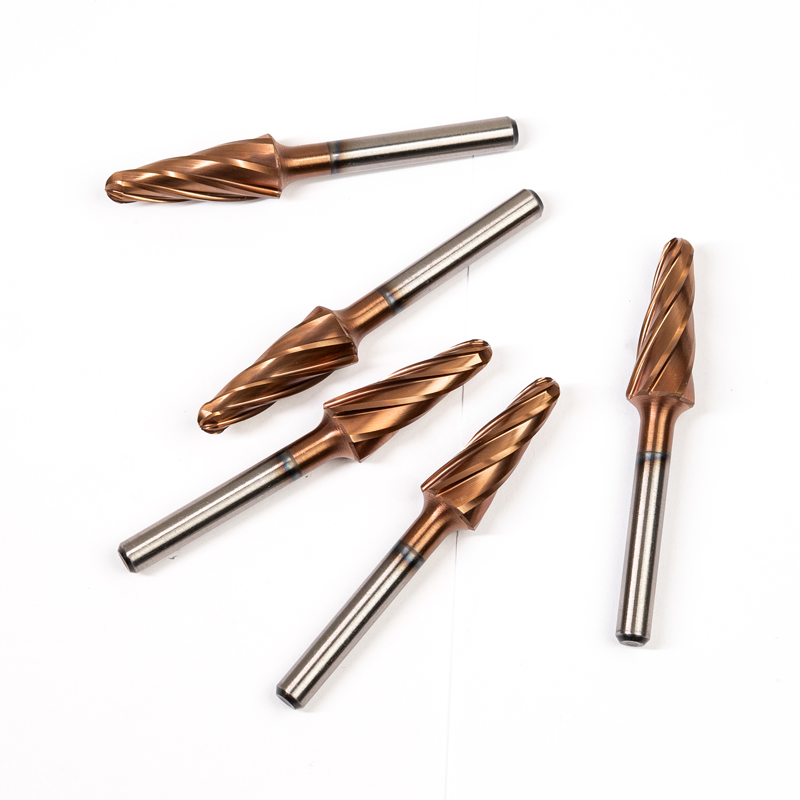

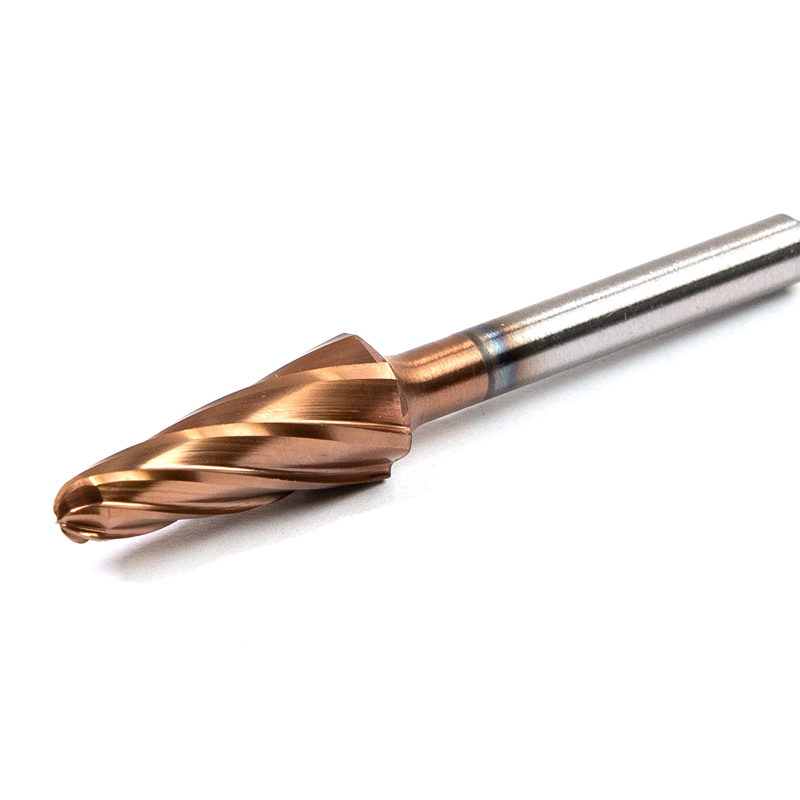

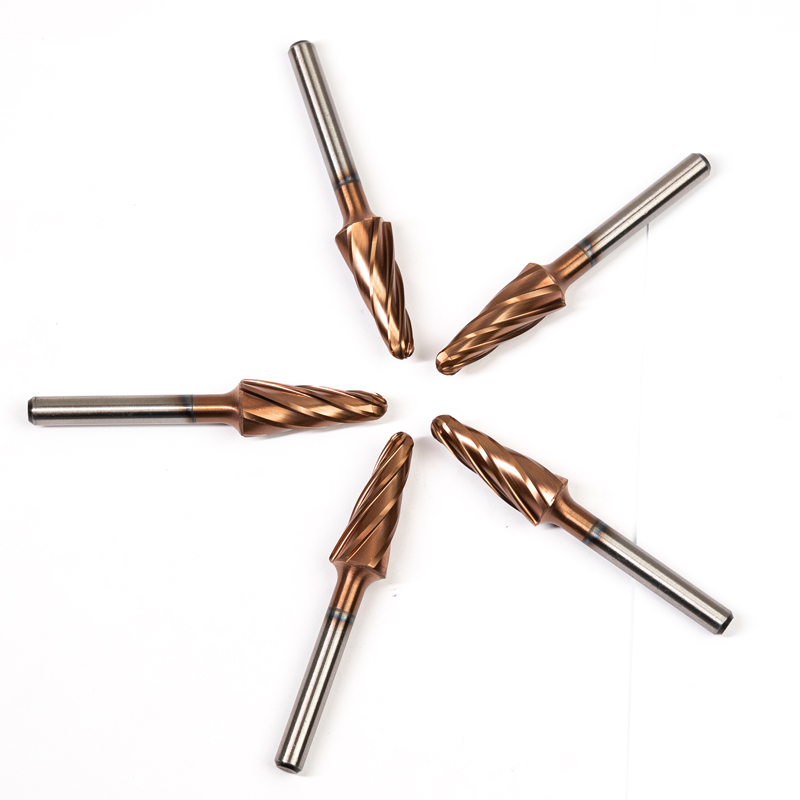

Prevent thermal loading and metal adhesion during non-ferrous metal finishing with our premium Coated Alu Cut Tungsten Carbide Rotary Burr (L12.7*32.28-W-6.35). Designed with a classic Ball Nose Cone Shape (Shape L), this tool is highly efficient for widening narrow gaps, clearing interior curved channels, and edge blending on ductile alloys.

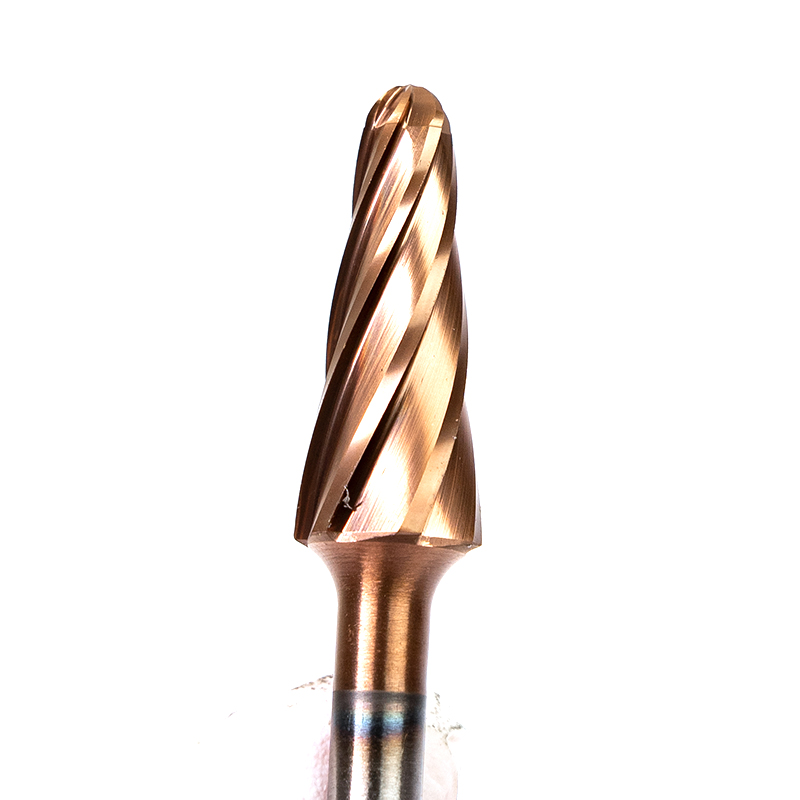

The cutting head features an advanced industrial heat-resistant nano-coating over wide, deeply ground single flutes. This specialized engineering combination ensures rapid chip evacuation, dramatically reduces frictional heat, and eliminates the tool-clogging common when processing sticky materials.
Technical Properties
Material: Premium Tungsten Carbide (YG8 / K30)
Hardness: 90-92HRA
Heat Resistance: Maintains cutting edge up to 800℃
Max Speed (RPM): 3mm Dia: ~60,000 RPM
6mm Dia: ~45,000 RPM
12mm Dia: ~25,000 RPM
Primary Applications
Materials: Aluminum, Aluminum Alloys, Brass, Copper, Soft Magnesium, Zinc, and Hard Plastics.
Industries: Automotive porting, aerospace fabrication, foundry work, and custom metal sculpture.
Operations: Deburring, edge breaking, contouring, and internal radius grinding.
Shape Classification (International Standards)
These codes identify the head shape of the rotary file.
| Shape Code | Shape Name | Common Application |
| Type A | Cylindrical (Plain End) | Surface milling, edge leveling |
| Type B | Cylindrical (End Cut) | Peripheral and end milling |
| Type C | Cylindrical Ball Nose | Contouring and radius milling |
| Type D | Ball / Spherical | Hole enlarging, rounding, concave work |
| Type E | Oval / Egg | Contoured deburring, rounding edges |
| Type F | Tree (Radius End) | Rounding narrow contours, internal milling |
| Type G | Tree (Pointed End) | Reaching into tight, pointed angles |
| Type H | Flame Shape | Universal contouring and blending |
| Type L | Taper (Radius End) | Difficult-to-reach areas and radii |
| Type M | Conical (Pointed End) | Acute angles and narrow deburring |
Common Dimensional Specifications
These are the industry-standard sizes for 6mm (1/4") and 3mm (1/8") shank series.
| Model Example | Head Dia (D1) | Cut Length (L1) | Shank Dia (d2) | Overall Length (L2) |
| 0306 (Mini) | 3 mm | 6 mm | 3 mm | 38 mm |
| 0616 | 6 mm | 16 mm | 6 mm | 50 mm |
| 0820 | 8 mm | 20 mm | 6 mm | 65 mm |
| 1020 | 10 mm | 20 mm | 6 mm | 65 mm |
| 1225 | 12 mm | 25 mm | 6 mm | 70 mm |
| 1425 | 14 mm | 25 mm | 6 mm | 70 mm |
| 1625 | 16 mm | 25 mm | 6 mm |
Cut Type Selection (Tooth Geometry)
| Cut Type | Description | Best For |
| Single Cut | One set of diagonal flutes. | Fast material removal, long chips. Steel, Cast Iron. |
| Double Cut | Cross-cut flutes (Diamond cut). | Fine finish, smaller chips, better operator control. Universal use. |
| Aluminum Cut | Wide, deep flutes (Single cut). | Preventing clogging on soft/gummy metals. Aluminum, Plastics, Brass. |
