- No-Clog Alu Cut: Extra-wide grooves throw soft metal chips out instantly, preventing melting and tool jamming.
- Versatile Cone Profile: 10mm ball nose cone shape is perfect for smoothing out tight angles and curved inner pockets.
- Long-Lasting Sharpness: Solid carbide head stays sharp up to 10x longer than HSS bits, reducing your tool replacement costs.
- Universal 6mm Shank: Precision-made shank fits smoothly into standard electric or air die grinders with zero slipping.
DESCRIPTION
Product Overview

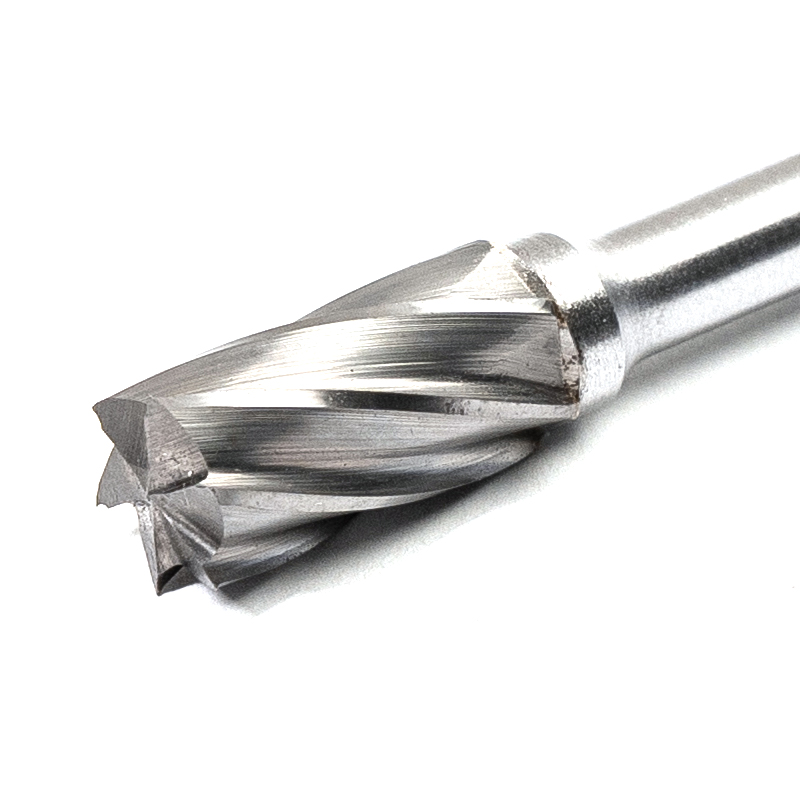

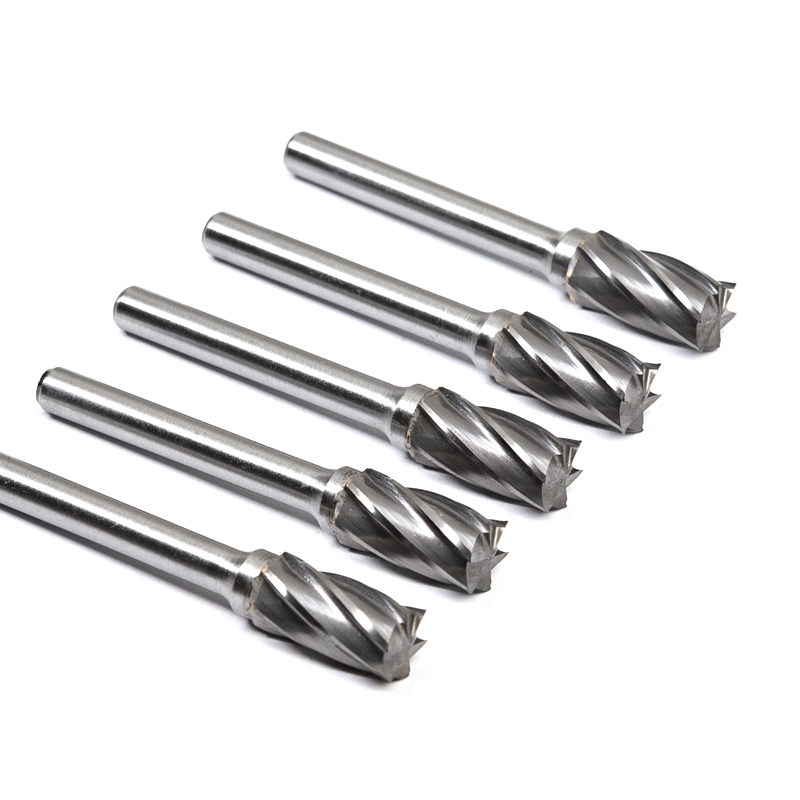

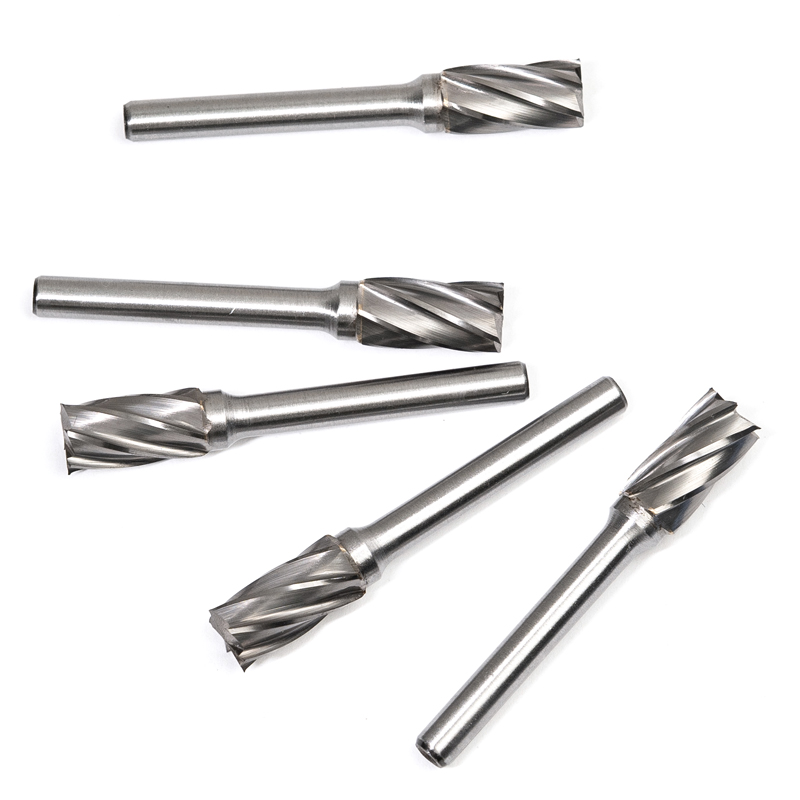

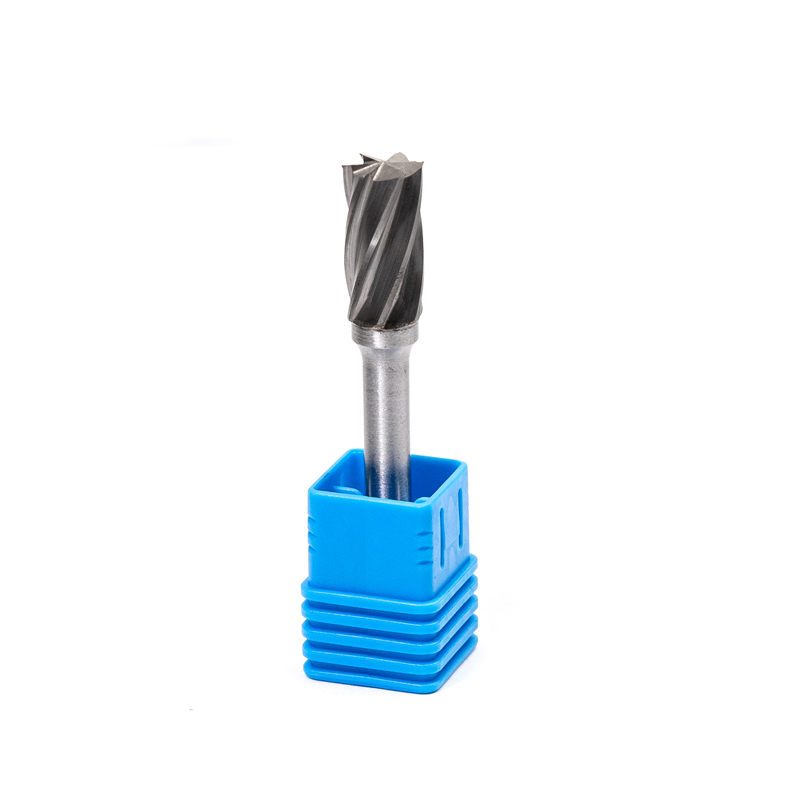

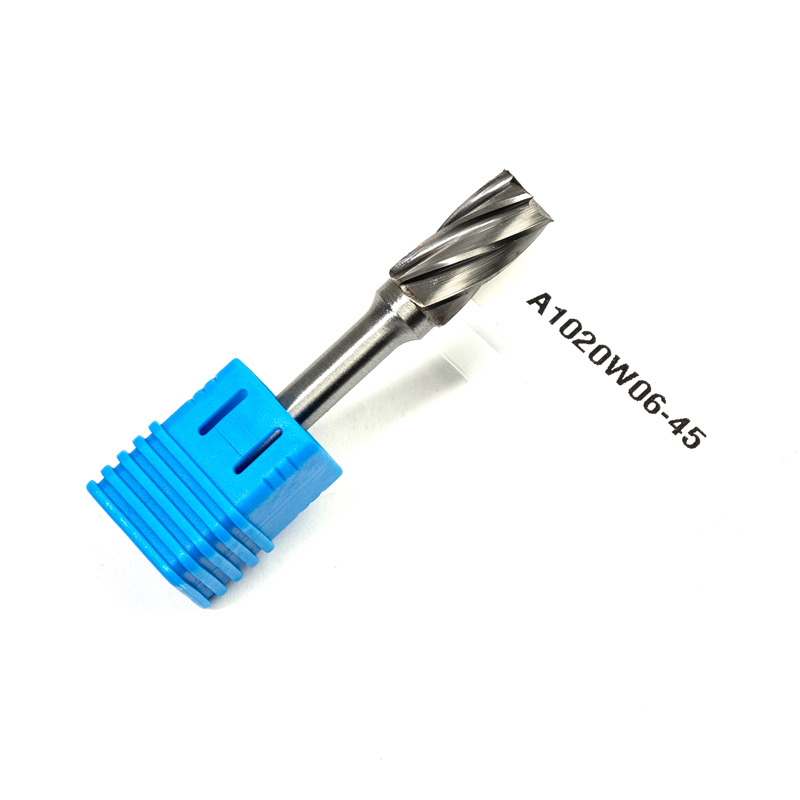

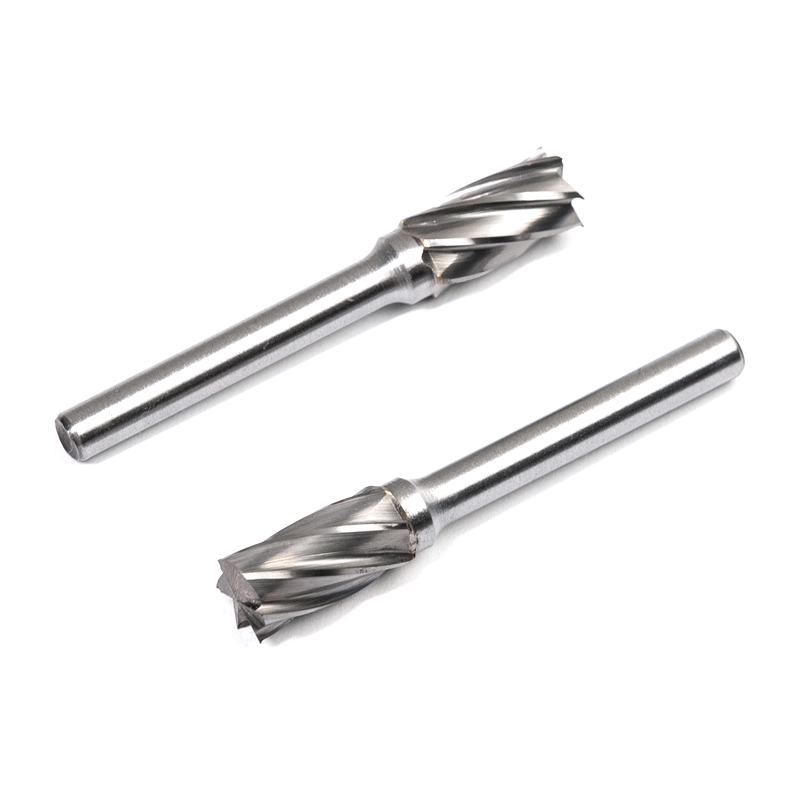

Prevent material accumulation and thermal loading when machining non-ferrous metals with our high-performance A1020 Alu Cut Tungsten Carbide Rotary Burr. Featuring a standard Cylinder Shape (Shape A), this engineering-grade tool is optimized for flat surface blending, right-angle deburring, and straight-edge contouring on ductile materials.
Equipped with specialized Aluminum Cut (Alu Cut) flutes, the tool features wide and deeply ground chip spaces. This geometric design ensures rapid, unobstructed chip evacuation, maintaining cutting edge sharpness and preventing the melting or gumming common with multi-cut alternatives.
Technical Properties
Material: Premium Tungsten Carbide (YG8 / K30)
Hardness: 90-92HRA
Heat Resistance: Maintains cutting edge up to 800℃
Max Speed (RPM): 3mm Dia: ~60,000 RPM
6mm Dia: ~45,000 RPM
12mm Dia: ~25,000 RPM
Primary Applications
Materials: Aluminum, Aluminum Alloys, Brass, Copper, Soft Magnesium, Zinc, and Hard Plastics.
Industries: Automotive porting, aerospace fabrication, foundry work, and custom metal sculpture.
Operations: Deburring, edge breaking, contouring, and internal radius grinding.
Shape Classification (International Standards)
These codes identify the head shape of the rotary file.
| Shape Code | Shape Name | Common Application |
| Type A | Cylindrical (Plain End) | Surface milling, edge leveling |
| Type B | Cylindrical (End Cut) | Peripheral and end milling |
| Type C | Cylindrical Ball Nose | Contouring and radius milling |
| Type D | Ball / Spherical | Hole enlarging, rounding, concave work |
| Type E | Oval / Egg | Contoured deburring, rounding edges |
| Type F | Tree (Radius End) | Rounding narrow contours, internal milling |
| Type G | Tree (Pointed End) | Reaching into tight, pointed angles |
| Type H | Flame Shape | Universal contouring and blending |
| Type L | Taper (Radius End) | Difficult-to-reach areas and radii |
| Type M | Conical (Pointed End) | Acute angles and narrow deburring |
Common Dimensional Specifications
These are the industry-standard sizes for 6mm (1/4") and 3mm (1/8") shank series.
| Model Example | Head Dia (D1) | Cut Length (L1) | Shank Dia (d2) | Overall Length (L2) |
| 0306 (Mini) | 3 mm | 6 mm | 3 mm | 38 mm |
| 0616 | 6 mm | 16 mm | 6 mm | 50 mm |
| 0820 | 8 mm | 20 mm | 6 mm | 65 mm |
| 1020 | 10 mm | 20 mm | 6 mm | 65 mm |
| 1225 | 12 mm | 25 mm | 6 mm | 70 mm |
| 1425 | 14 mm | 25 mm | 6 mm | 70 mm |
| 1625 | 16 mm | 25 mm | 6 mm |
Cut Type Selection (Tooth Geometry)
| Cut Type | Description | Best For |
| Single Cut | One set of diagonal flutes. | Fast material removal, long chips. Steel, Cast Iron. |
| Double Cut | Cross-cut flutes (Diamond cut). | Fine finish, smaller chips, better operator control. Universal use. |
| Aluminum Cut | Wide, deep flutes (Single cut). | Preventing clogging on soft/gummy metals. Aluminum, Plastics, Brass. |
