DESCRIPTION

 Product Overview

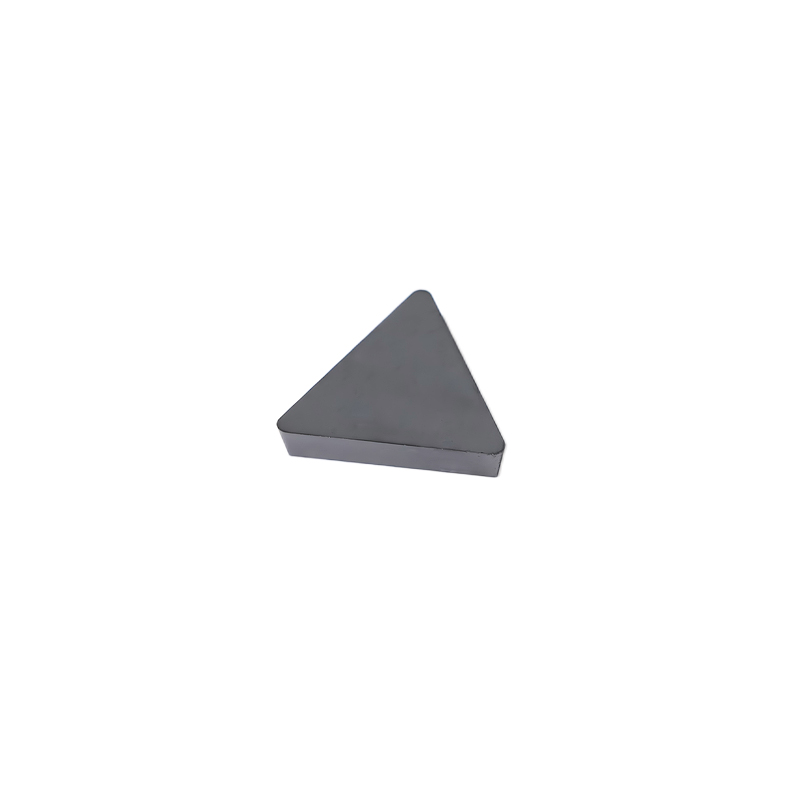

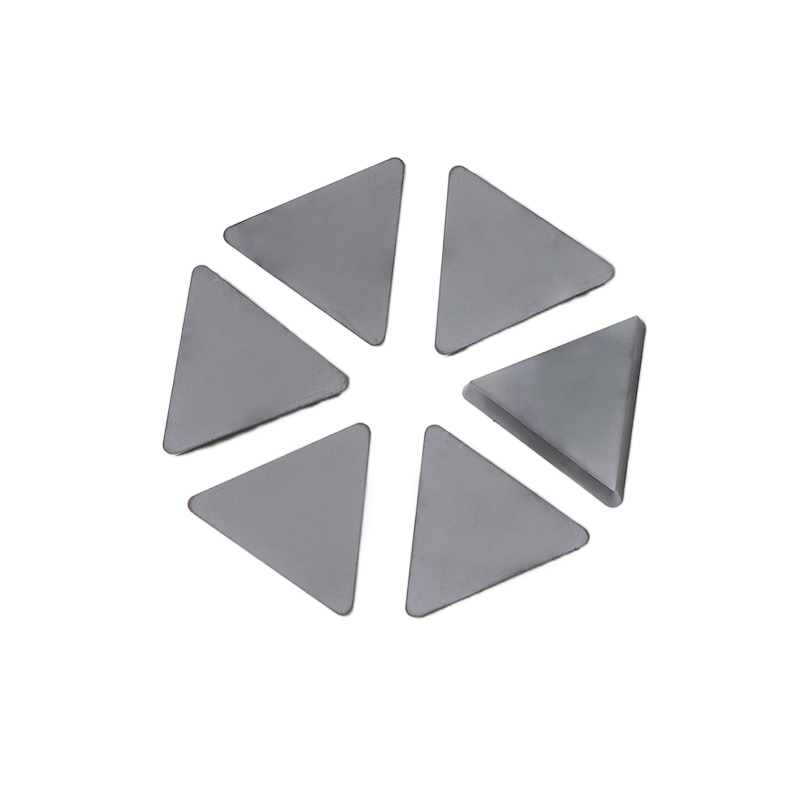

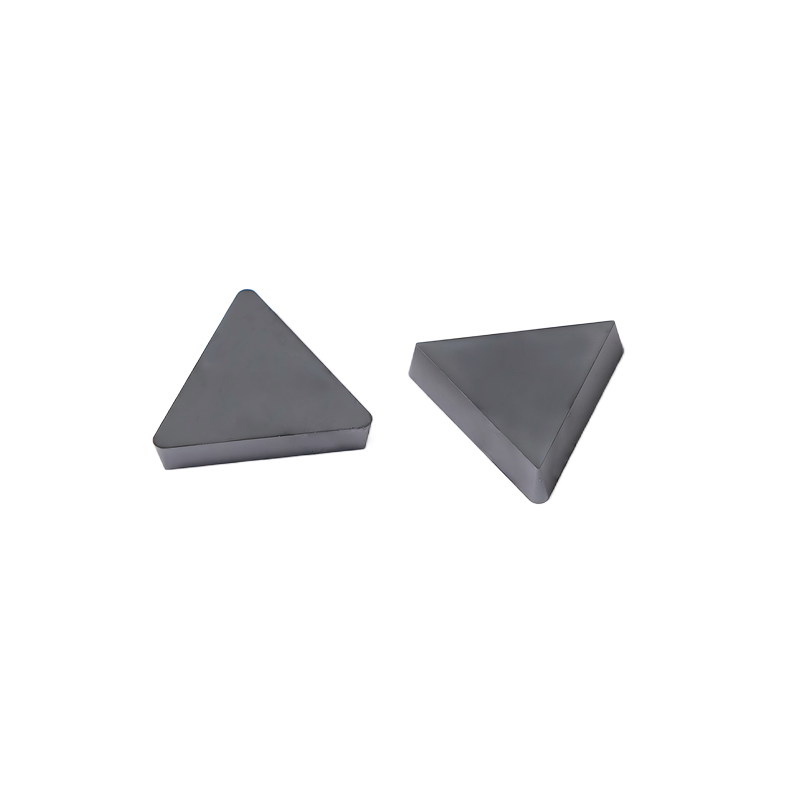

The TPMN160308 CD8125 is a versatile, single-sided 60° triangular positive insert engineered for general-purpose turning, shoulder facing, and milling operations across ISO P (Steels), ISO M (Stainless Steels), and ISO K (Cast Iron). Featuring a flat-top (plain) rake face without a molded chipbreaker and an 11° positive clearance angle, this insert relies on precise edge geometry and tool presentation to deliver exceptionally clean cuts. Paired with the tough, wear-resistant CD8125 coated grade matrix, it provides outstanding edge strength and thermal stability for both turning and face milling setups.

2. Technical Specifications

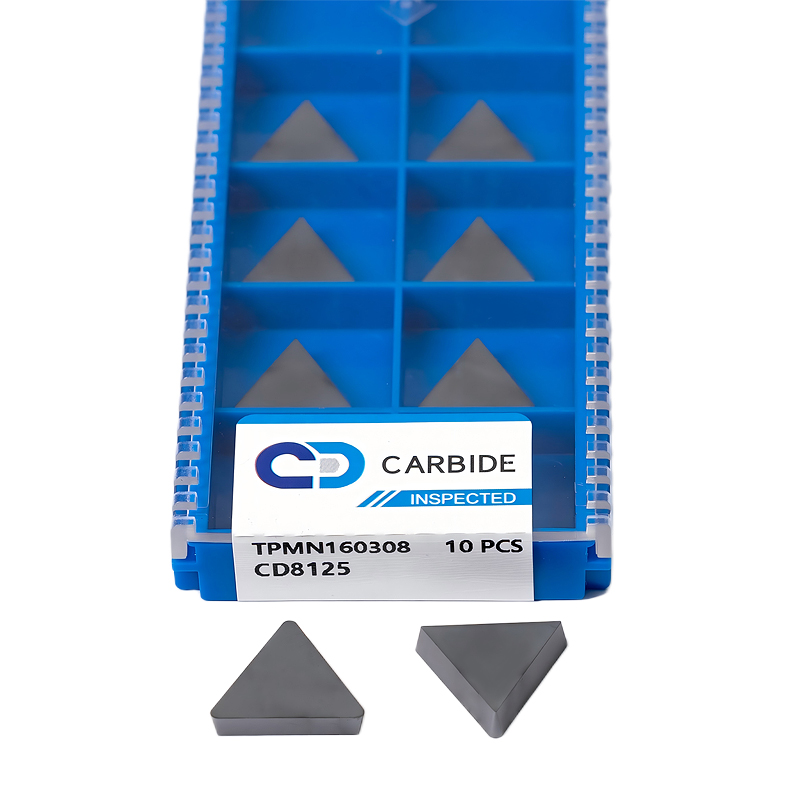

• ISO Code: TPMN160308 (ANSI: TPM322)

• Grade: CD8125 (High-performance multi-layer CVD/PVD coating optimized for steel and alloy processing)

• Shape: T-Shape (60° Triangle)

• Relief Angle: P-Type (11° Positive clearance – significantly reduces cutting resistance and spindle torque)

• Tolerance Class: M-Class (Direct utility tolerance providing reliable indexability)

• Fixing Type: N-Type (Flat top, un-clamped hole / plain surface – ideal for top-clamp tool holders and milling cutters)

• Inscribed Circle (IC): 9.525 mm (3/8")

• Thickness: 3.18 mm (1/8")

• Nose Radius: 0.8 mm (R0.8 / 1/32") – Universal standard corner radius balancing high mechanical strength with clean surface finishes.

CNC Inserts - Frequently Asked Questions

1. How do I choose the right grade for my specific machining application?

Choosing the correct grade is crucial for tool life and performance. We provide a comprehensive Grade Cross-Reference Chart that maps our CD Carbide grades to major international brands like Sandvik, Mitsubishi, and Kyocera. If you are unsure, simply provide us with the workpiece material (P, M, K, S, H) and machining conditions, and our engineers will recommend the best solution.

2. Can you provide customized CNC tools based on our drawings?

Yes. As a factory-direct manufacturer, we specialize in bespoke engineering. Whether you need non-standard dimensions, specific chipbreakers, or customized coatings for unique alloys, our technical team can develop products based on your technical drawings (PDF/STEP) or physical samples.

3. Do you offer free samples for testing before bulk orders?

We understand that "trial cutting" is the only way to verify tool stability. We offer sample packs for professional buyers to test performance on their own CNC machines. Please contact our sales team with your machine specifications and the material you are processing to request your trial samples.

4. How do you ensure the quality consistency of your carbide inserts?

Our quality control is integrated into every step of the production process in Zhuzhou. We use high-purity tungsten carbide powder and advanced PVD/CVD coating equipment. Each batch undergoes rigorous inspection, including microscopic edge analysis and hardness testing, to ensure that the performance of the 1,000th insert is identical to the 1st.

5. What is the typical lead time for international B2B orders?

For standard models in stock (such as WNMG, CNMG, etc.), we usually ship within 3-5 business days. For customized tools or large-volume OEM orders, the production cycle typically ranges from 2 to 4 weeks, depending on the complexity of the design and coating requirements.

6. Are you a manufacturer or a trading company?

We are a direct manufacturing enterprise based in Zhuzhou, the hunan of China’s tungsten carbide industry. By cutting out the middleman, we provide factory-direct pricing and faster technical support. This allows us to offer more flexible MOQs (Minimum Order Quantities) for small-to-medium-sized distributors and specialized machine shops.
