DESCRIPTION

Product Overview

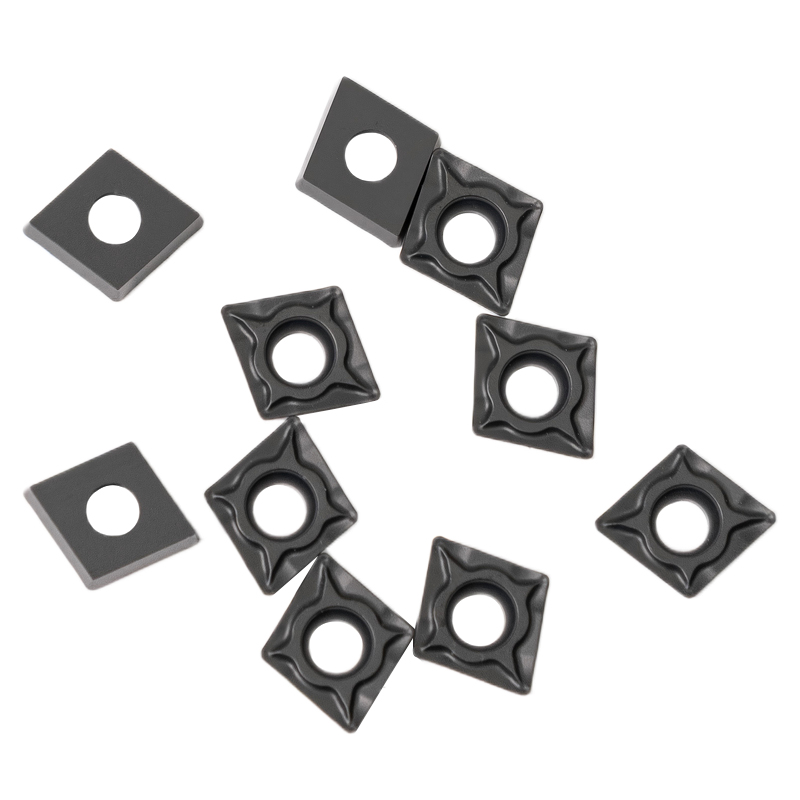

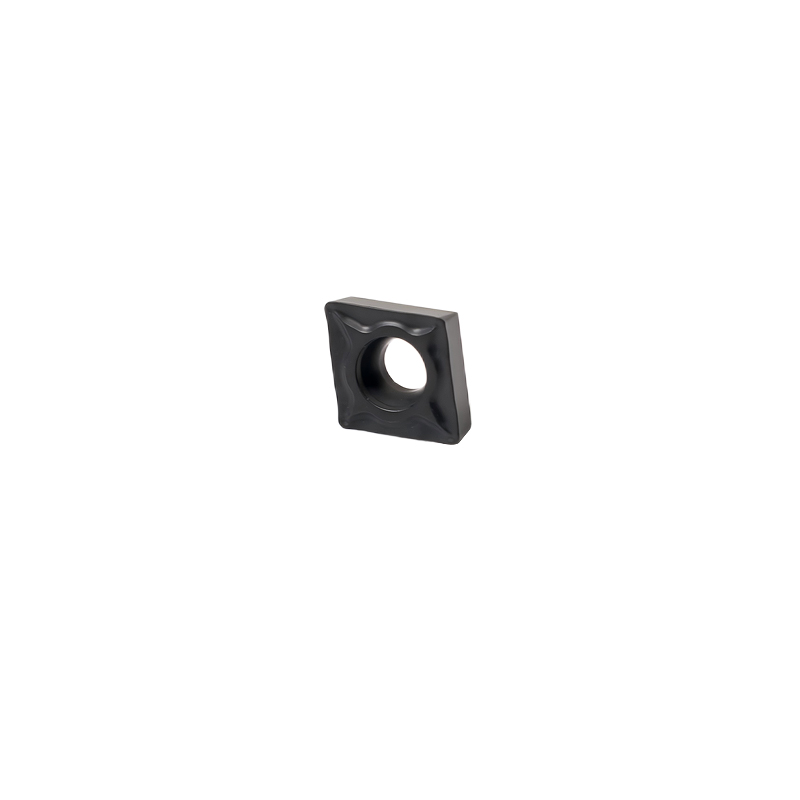

The CCMT09T304-HM CD7225 is a high-precision, single-sided 80° rhombic positive turning insert engineered specifically for fine finishing, micro-boring, and copy-profiling of ISO P (Steels) and ISO M (Stainless Steels). Combining a sharp 0.4 mm nose radius with a 7° positive clearance angle, this insert integrates the low-force -HM finishing chipbreaker with the exceptionally tough CD7225 PVD-coated matrix. It provides a chatter-free, clean-cutting action that eliminates part deflection on long internal boring bars and slender shafts.

2. Technical Specifications

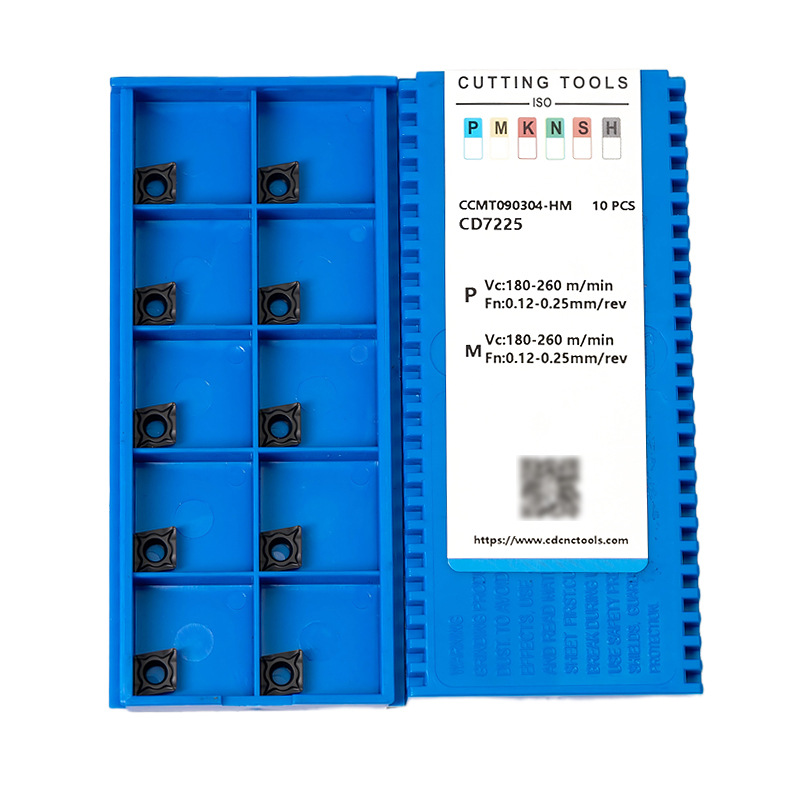

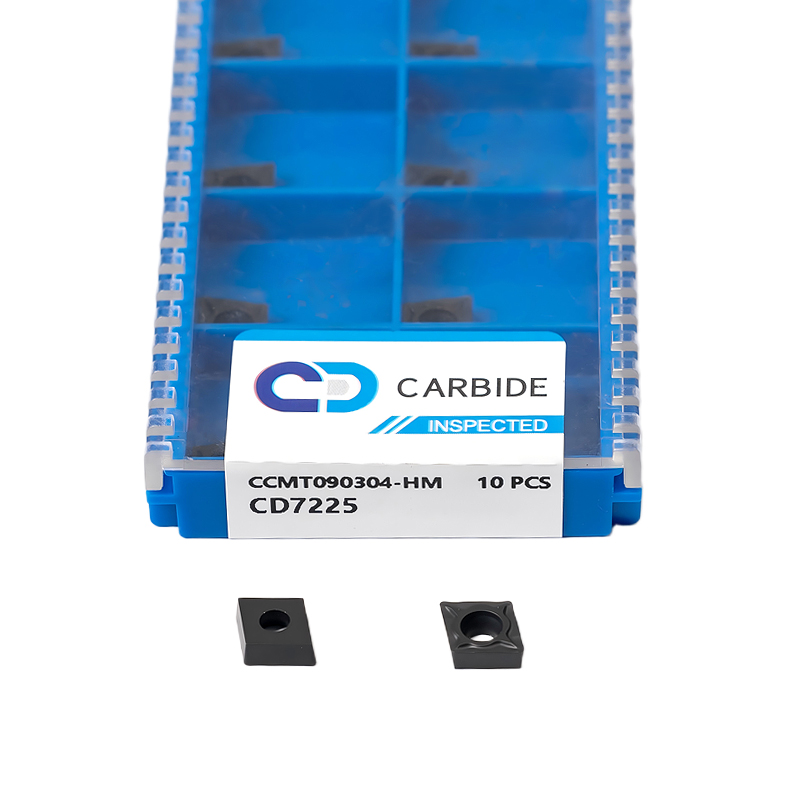

• ISO Code: CCMT09T304-HM (ANSI: CCMT32.51-HM)

• Grade: CD7225 (Advanced multi-layer PVD coating optimized for high edge toughness in ISO P20–P30 and M20–M30 finishing ranges)

• Shape: C-Shape (80° Diamond / Rhombic)

• Relief Angle: C-Type (7° Positive clearance – drastically lowers radial pressure and cutting torque)

• Nose Radius: 0.4 mm (R0.4 / 1/64") – Micro-sharp corner radius engineered for light depths of cut and exceptional surface smoothness.

• Chipbreaker Design: -HM Finishing Geometry (Features a positive rake angle and micro-contoured deflector ridges for clean chip fracturing at low feed rates).

• Machining Type: Internal boring, precision external profiling, facing, and fine finish turning.

CNC Inserts - Frequently Asked Questions

1. How do I choose the right grade for my specific machining application?

Choosing the correct grade is crucial for tool life and performance. We provide a comprehensive Grade Cross-Reference Chart that maps our CD Carbide grades to major international brands like Sandvik, Mitsubishi, and Kyocera. If you are unsure, simply provide us with the workpiece material (P, M, K, S, H) and machining conditions, and our engineers will recommend the best solution.

2. Can you provide customized CNC tools based on our drawings?

Yes. As a factory-direct manufacturer, we specialize in bespoke engineering. Whether you need non-standard dimensions, specific chipbreakers, or customized coatings for unique alloys, our technical team can develop products based on your technical drawings (PDF/STEP) or physical samples.

3. Do you offer free samples for testing before bulk orders?

We understand that "trial cutting" is the only way to verify tool stability. We offer sample packs for professional buyers to test performance on their own CNC machines. Please contact our sales team with your machine specifications and the material you are processing to request your trial samples.

4. How do you ensure the quality consistency of your carbide inserts?

Our quality control is integrated into every step of the production process in Zhuzhou. We use high-purity tungsten carbide powder and advanced PVD/CVD coating equipment. Each batch undergoes rigorous inspection, including microscopic edge analysis and hardness testing, to ensure that the performance of the 1,000th insert is identical to the 1st.

5. What is the typical lead time for international B2B orders?

For standard models in stock (such as WNMG, CNMG, etc.), we usually ship within 3-5 business days. For customized tools or large-volume OEM orders, the production cycle typically ranges from 2 to 4 weeks, depending on the complexity of the design and coating requirements.

6. Are you a manufacturer or a trading company?

We are a direct manufacturing enterprise based in Zhuzhou, the hunan of China’s tungsten carbide industry. By cutting out the middleman, we provide factory-direct pricing and faster technical support. This allows us to offer more flexible MOQs (Minimum Order Quantities) for small-to-medium-sized distributors and specialized machine shops.
