- Premium CD7225 PVD Coating: Advanced bronze PVD matrix that effectively resists thermal shock, built-up edge, and notch wear.
- Stainless Steel Specialist: High-performance PVD coating turning inserts for stainless steel (ISO M15-M30), ensuring stable tool life.
- Low Resistance & Strong Edge: Positive 60° triangle layout lowers cutting friction, while the reinforced 0.8mm radius prevents micro-chipping.
- Want to lower your cost-per-edge while machining tough stainless steel? Click 'Send Inquiry' to get our factory-direct bulk pricing and custom technical solutions today!
DESCRIPTION

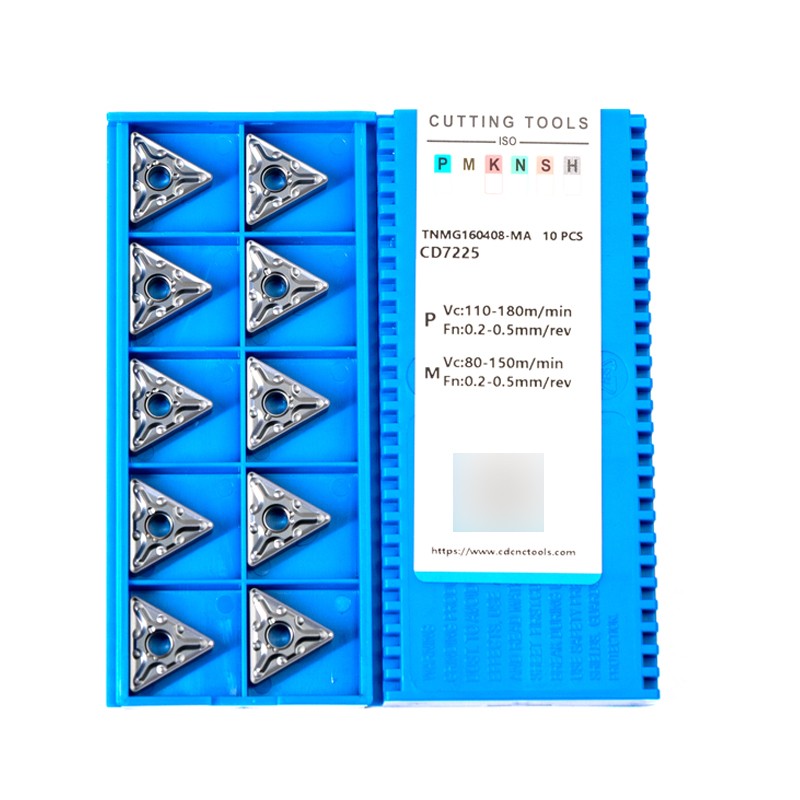

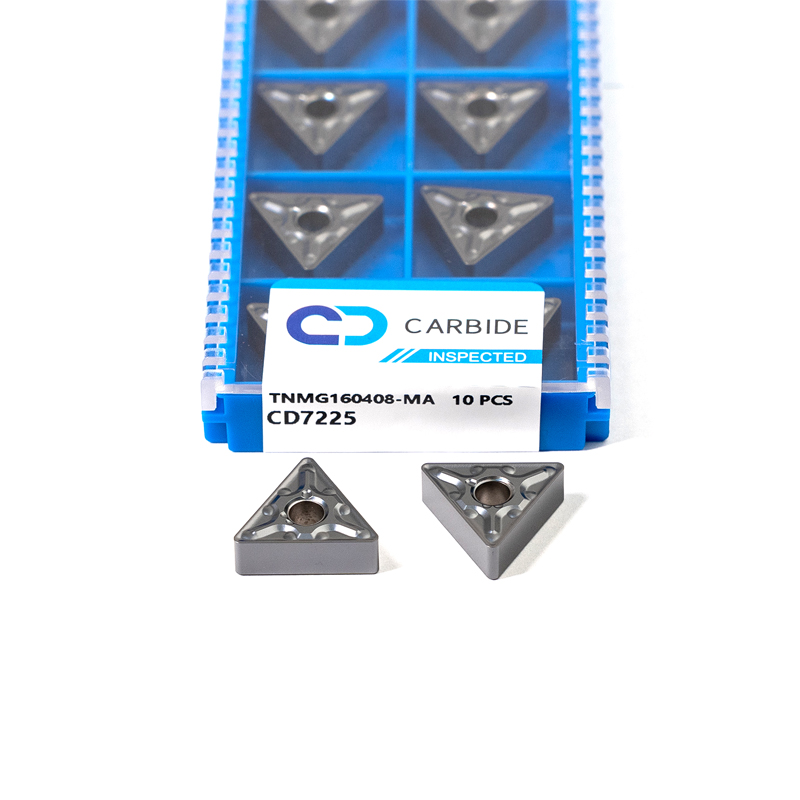

TNMG160408-MA CD7225 Carbide Turning Insert

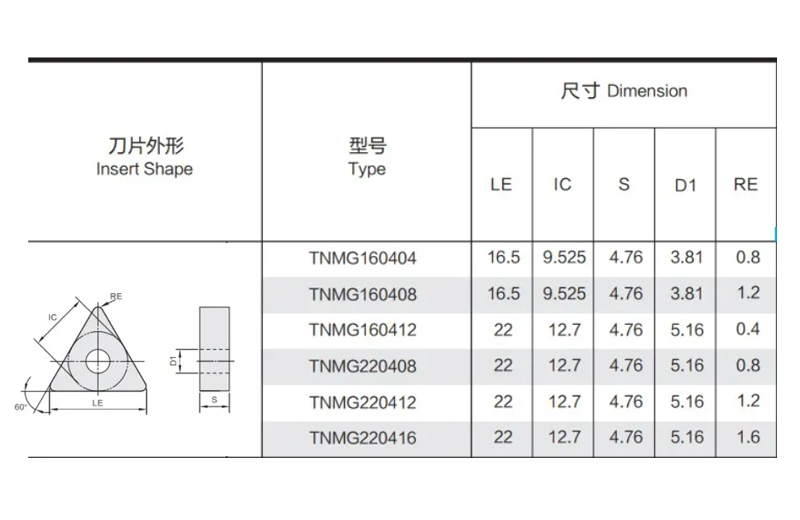

Parameter / Feature | Specification Details |
Model Number | TNMG160408-MA |
Grade | CD7225 (Premium PVD Coated) |

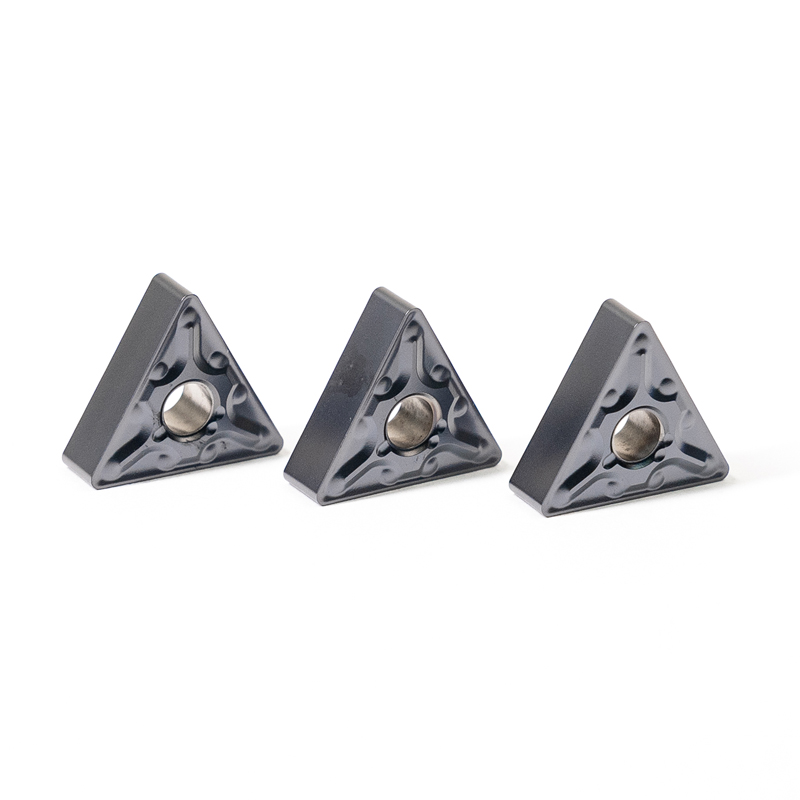

Coating Type & Color | PVD Multi-Layer / Black Color |
Shape | T - 60° Triangle (Negative Insert without Clearance Angle) |
Corner Radius | 0.8 mm (08) |
Chipbreaker | MA (Optimized for Medium Cutting / Smooth Evacuation) |
ISO Application Range | M15 - M30 (Stainless Steel) | Light P (Hard Steel) |
Machining Performance & Applications
Category | Application & Values |
Machining Hardness | HRC 20 – HRC 48 (Excellent for work-hardening and tough materials) |
Machining Method | Continuous external turning, profiling, facing, and large bore machining |
Cutting Speed (V_c) | Stainless Steel: 100 - 210 m/min | Alloy/Hard Steel: 120 - 230 m/min |
Feed Rate (f) | 0.15 - 0.40 mm/rev |
Depth of Cut (a_p) | 0.5 - 3.5 mm |
Target Materials & Application Fields
Target Materials :
* Stainless Steel (M15-M30): Outstanding performance on austenitic stainless steels (e.g., SUS304, SUS316, 316L), duplex steel, and ferritic/martensitic hard stainless steel.
Hard Steel Parts: Continuous turning of high-strength carbon steel, bearing steel, and pre-hardened alloy steels.
Application Fields:
Petrochemical & Valve Industry: CNC machining of stainless steel flanges, valve cores, pipes, and fluid control joints.
Heavy Machinery & Hardware: Turning of large corrosion-resistant fasteners, industrial shafts, and mechanical components.
Marine Engineering: High-efficiency profiling of marine-grade stainless steel hardware and propeller shaft sleeves.
CNC Inserts - Frequently Asked Questions
1. How do I choose the right grade for my specific machining application?
Choosing the correct grade is crucial for tool life and performance. We provide a comprehensive Grade Cross-Reference Chart that maps our CD Carbide grades to major international brands like Sandvik, Mitsubishi, and Kyocera. If you are unsure, simply provide us with the workpiece material (P, M, K, S, H) and machining conditions, and our engineers will recommend the best solution.
2. Can you provide customized CNC tools based on our drawings?
Yes. As a factory-direct manufacturer, we specialize in bespoke engineering. Whether you need non-standard dimensions, specific chipbreakers, or customized coatings for unique alloys, our technical team can develop products based on your technical drawings (PDF/STEP) or physical samples.
3. Do you offer free samples for testing before bulk orders?
We understand that "trial cutting" is the only way to verify tool stability. We offer sample packs for professional buyers to test performance on their own CNC machines. Please contact our sales team with your machine specifications and the material you are processing to request your trial samples.
4. How do you ensure the quality consistency of your carbide inserts?
Our quality control is integrated into every step of the production process in Zhuzhou. We use high-purity tungsten carbide powder and advanced PVD/CVD coating equipment. Each batch undergoes rigorous inspection, including microscopic edge analysis and hardness testing, to ensure that the performance of the 1,000th insert is identical to the 1st.
5. What is the typical lead time for international B2B orders?
For standard models in stock (such as WNMG, CNMG, etc.), we usually ship within 3-5 business days. For customized tools or large-volume OEM orders, the production cycle typically ranges from 2 to 4 weeks, depending on the complexity of the design and coating requirements.
6. Are you a manufacturer or a trading company?
We are a direct manufacturing enterprise based in Zhuzhou, the hunan of China’s tungsten carbide industry. By cutting out the middleman, we provide factory-direct pricing and faster technical support. This allows us to offer more flexible MOQs (Minimum Order Quantities) for small-to-medium-sized distributors and specialized machine shops.
