- Grade: CD7225
- Coating: PVD
- Application: Used for steel material, stainless steel processing
- Cutting Condition: High Precision Finishing Cutting
DESCRIPTION
Product Description

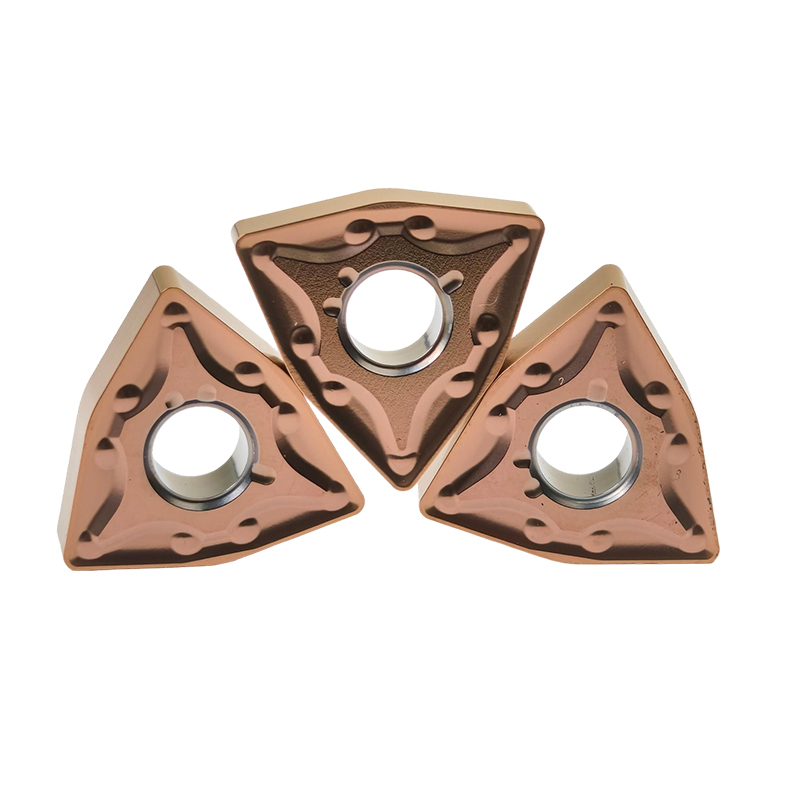

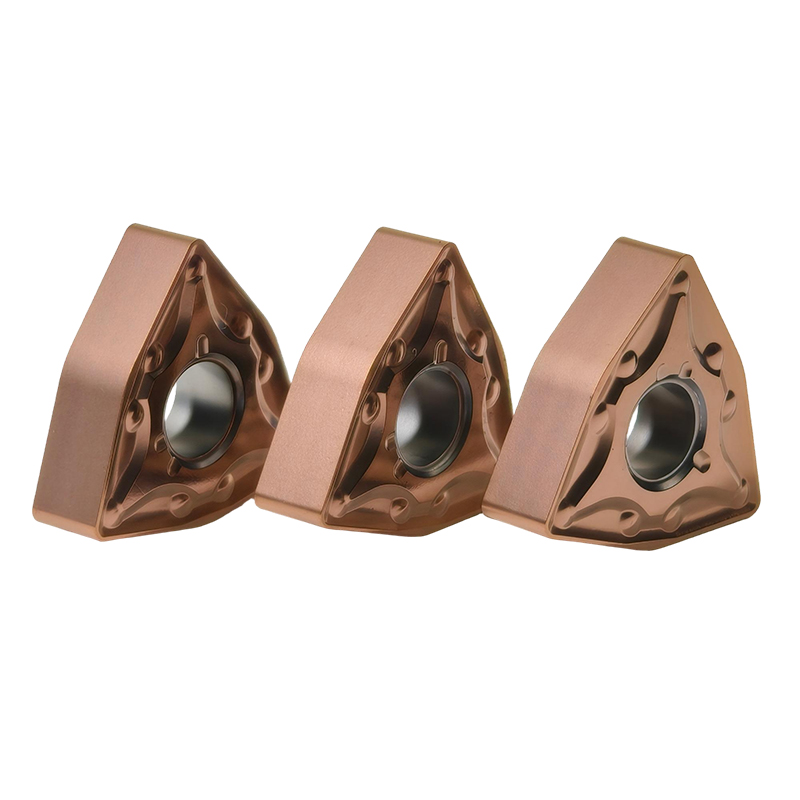

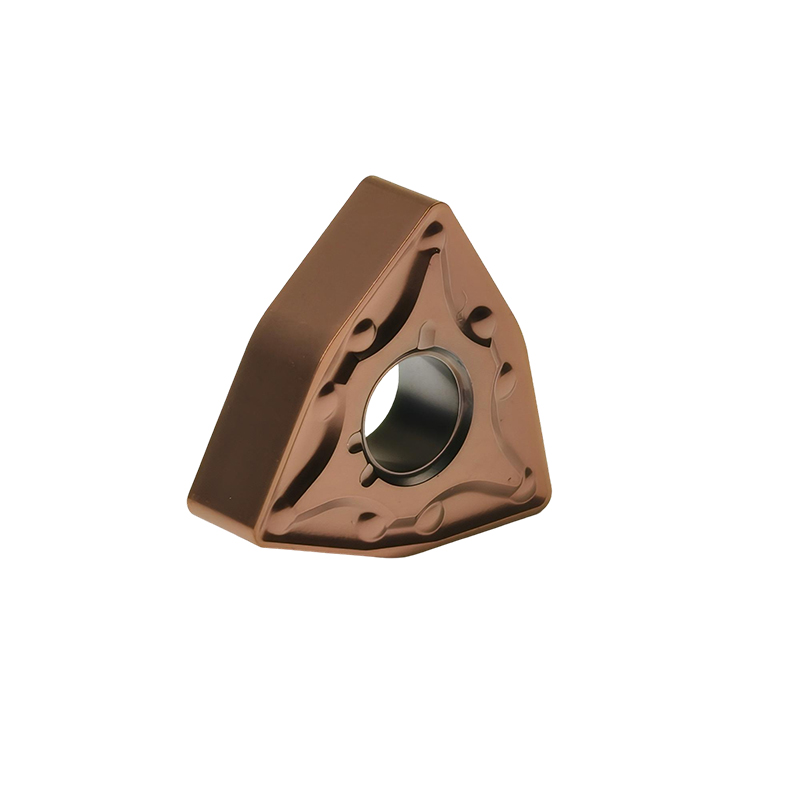

High-Efficiency Trigon Turning SolutionThe WNMG080408-MA is a double-sided 80° trigon insert designed for maximum economy and stable performance. Equipped with the versatile MA chipbreaker, it excels in medium-range machining, providing superior chip evacuation and heat resistance. With 6 usable cutting edges, this insert is the go-to choice for workshops looking to reduce tooling costs without compromising on precision and surface quality in steel and stainless steel applications.
Technical Specification: WNMG080408-MA
| Item | Specifications | Remarks |
| ISO Code | WNMG080408-MA | 80° Trigon Negative Insert |
| Inscribed Circle (I.C.) | 12.7 mm | Standard size for versatile turning |
| Thickness (S) | 4.76 mm | High body strength for stable cutting |
| Nose Radius (r) | 0.8 mm | Perfect balance of edge strength & finish |
| Chipbreaker | MA Geometry | Specialized for medium-duty chip control |
| Workpiece Material | Steel / Stainless Steel | Optimized for ISO P and M materials |
| Coating Technology | CVD / PVD (TiCN + Al2O3) | Superior wear and thermal resistance |
| Cutting Edges | 6 Usable Edges | Highly cost-effective trigon design |
Recommended Cutting Parameters
Note: Parameters may vary based on material hardness and machine rigidity.
| Parameter | Recommended Range | Unit |
| Cutting Speed (V_c) | 150 – 320 | m/min |
| Feed Rate (f) | 0.18 – 0.50 | mm/rev |
| Depth of Cut (a_p) | 1.0 – 5.0 | mm |
| Cooling Method | Wet (Flood Coolant) | Recommended for chip removal |
